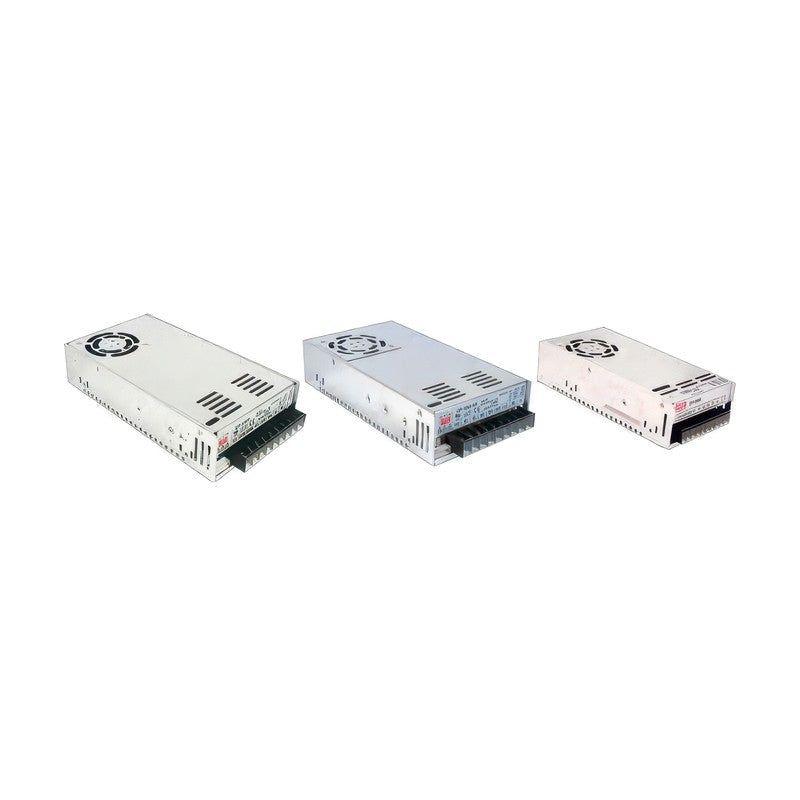

MEAN WELL QP Series Quad Output Enclosed Power Supply with PFC (150-320W)

MEAN WELL QP Series Quad Output Enclosed Power Supply with PFC (150-320W)

The QP series is a 150-320W quad output enclosed type AC-DC power supply with PFC function.

Key features

  • Key features: Universal full range input: 90~264 VAC; Protections: Short Circuit/Overload/Over Voltage/Over Temp. (Optional for QP-150); Forced air cooling by built-in DC fan; Built-in active PFC function
  • Also: CH1 & 2 can be adjustable from -5%~+10% (QP-200/320); CH1 & 2 remote sense function (QP-200/320); With PG and PF signal output(QP-200/320); 3 years warranty
QP-150B CH1 output: 5V 3~15A | CH2 output: 12V 0.4~5A | CH3 output: -12V 0.3~2A | CH4 output: -5V 0~1A | Dimensions: 199x99x50 mm
QP-150C CH1 output: 5V 3~15A | CH2 output: 15V 0.4~4A | CH3 output: -15V 0.3~2A | CH4 output: -5V 0~1A | Dimensions: 199x99x50 mm
QP-150D CH1 output: 5V 3~15A | CH2 output: 12V 0~5A | CH3 output: 24V 0.4~3A | CH4 output: -12V 0~1A | Dimensions: 199x99x50 mm
QP-150F CH1 output: 5V 3~15A | CH2 output: 15V 0~5A | CH3 output: 24V 0.4~3A | CH4 output: -15V 0~1A | Dimensions: 199x99x50 mm
QP-150-3A CH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 12V 0.4~5A | CH4 output: -5V 0~1A | Dimensions: 199x99x50 mm
QP-150-3B CH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 12V 0.4~5A | CH4 output: -12V 0~1A | Dimensions: 199x99x50 mm
QP-150-3C CH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 15V 0.4~5.0A | CH4 output: -15V 0~1.0A | Dimensions: 199x99x50 mm
QP-150-3D CH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 24V 0.3~3A | CH4 output: -12V 0~1A | Dimensions: 199x99x50 mm
QP-200D CH1 output: 5V, 3.0~20A | CH2 output: 12V, 0~7A | CH3 output: 24V, 0.4~6A | CH4 output: -12V, 0~1A | Dimensions: 215x115x50 mm
QP-200F CH1 output: 5V, 3~20A | CH2 output: 15V, 0~6.0A | CH3 output: 24V, 0.4~6A | CH4 output: -15V, 0~1A | Dimensions: 215x115x50 mm
QP-320D CH1 output: 5V, 2.5~20A | CH2 output: 12V, 0~10A | CH3 output: 24V, 0.2~5A | CH4 output: -12V, 0.2~2A | Dimensions: 215x115x50 mm
QP-320F CH1 output: 5V, 2.5~20A | CH2 output: 15V, 0~10A | CH3 output: 24V, 0.2~5A | CH4 output: -15V, 0.2~1.6A | Dimensions: 215x115x50 mm
Enclosed Switching Power SuppliesMEAN WELL
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL QP Series Quad Output Enclosed Power Supply with PFC (150-320W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (12)

QP-150B, QP-150C, QP-150D, QP-150F, QP-150-3A, QP-150-3B, QP-150-3C, QP-150-3D, QP-200D, QP-200F + 2 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QP-150BCH1 output: 5V 3~15A | CH2 output: 12V 0.4~5A | CH3 output: -12V 0.3~2A | CH4 output: -5V 0~1A | Dimensions: 199x99x50 mm
QP-150CCH1 output: 5V 3~15A | CH2 output: 15V 0.4~4A | CH3 output: -15V 0.3~2A | CH4 output: -5V 0~1A | Dimensions: 199x99x50 mm
QP-150DCH1 output: 5V 3~15A | CH2 output: 12V 0~5A | CH3 output: 24V 0.4~3A | CH4 output: -12V 0~1A | Dimensions: 199x99x50 mm
QP-150FCH1 output: 5V 3~15A | CH2 output: 15V 0~5A | CH3 output: 24V 0.4~3A | CH4 output: -15V 0~1A | Dimensions: 199x99x50 mm
QP-150-3ACH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 12V 0.4~5A | CH4 output: -5V 0~1A | Dimensions: 199x99x50 mm
QP-150-3BCH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 12V 0.4~5A | CH4 output: -12V 0~1A | Dimensions: 199x99x50 mm
QP-150-3CCH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 15V 0.4~5.0A | CH4 output: -15V 0~1.0A | Dimensions: 199x99x50 mm
QP-150-3DCH1 output: 5V 3~15A | CH2 output: 3.3V 0~15A | CH3 output: 24V 0.3~3A | CH4 output: -12V 0~1A | Dimensions: 199x99x50 mm
QP-200DCH1 output: 5V, 3.0~20A | CH2 output: 12V, 0~7A | CH3 output: 24V, 0.4~6A | CH4 output: -12V, 0~1A | Dimensions: 215x115x50 mm
QP-200FCH1 output: 5V, 3~20A | CH2 output: 15V, 0~6.0A | CH3 output: 24V, 0.4~6A | CH4 output: -15V, 0~1A | Dimensions: 215x115x50 mm
QP-320DCH1 output: 5V, 2.5~20A | CH2 output: 12V, 0~10A | CH3 output: 24V, 0.2~5A | CH4 output: -12V, 0.2~2A | Dimensions: 215x115x50 mm
QP-320FCH1 output: 5V, 2.5~20A | CH2 output: 15V, 0~10A | CH3 output: 24V, 0.2~5A | CH4 output: -15V, 0.2~1.6A | Dimensions: 215x115x50 mm
