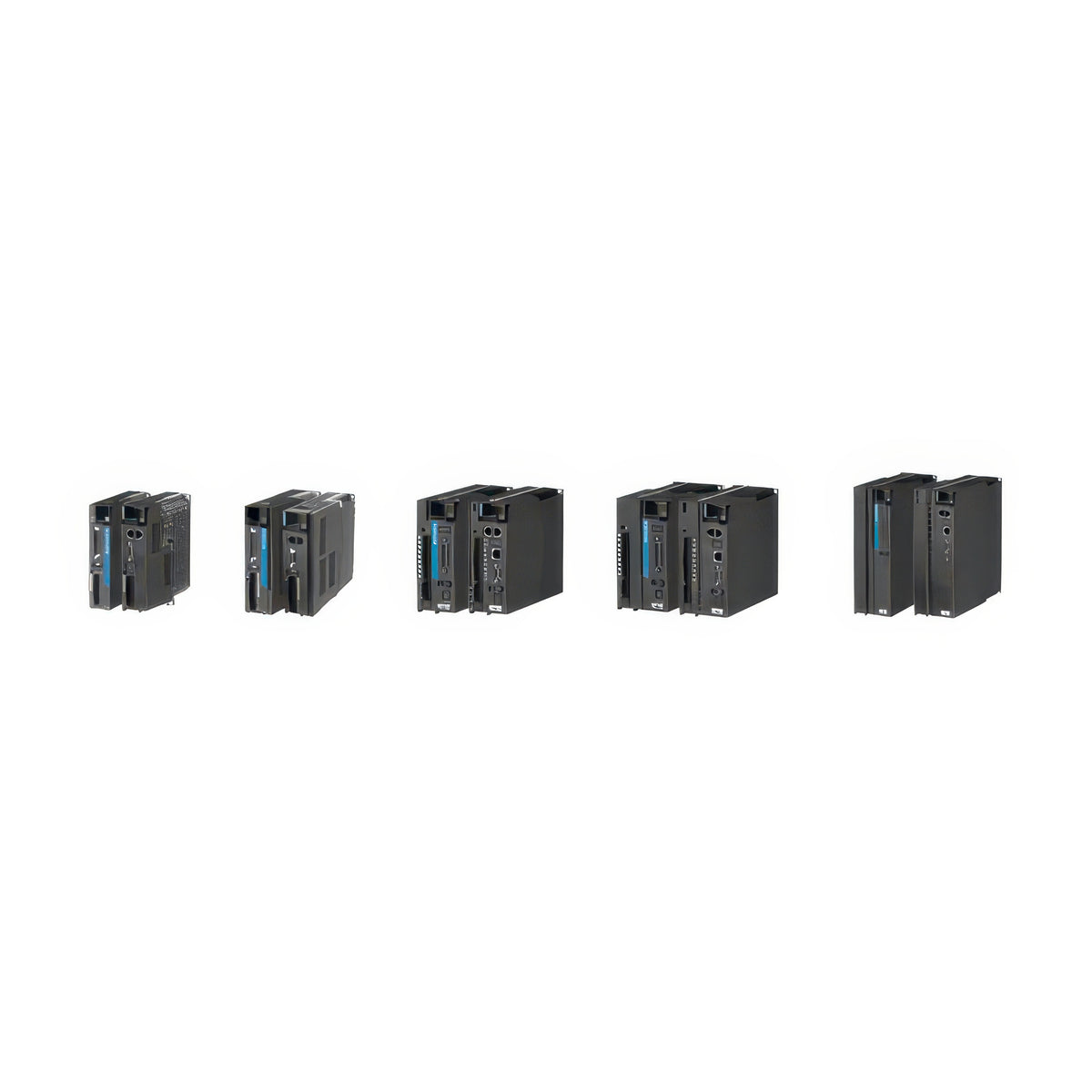

Inovance SV660C Series CANopen Servo Drive

Inovance SV660C Series CANopen Servo Drive

The SV660C is an AC servo drive with CANopen fieldbus communication based on the internationally standardized CANopen protocol (DS301/DS402).

Key features

  • It supports position, speed and torque control and is offered for single-phase 220 V, three-phase 220 V and three-phase 380 V supplies in frame sizes A to E (50 W to 7.5 kW)
  • The drive pairs with MS1 servo motors with 23-bit absolute encoders, has a 3.0 kHz speed frequency response and supports one-click tuning and setup via InoDriveShop PC software
  • Pulse/analog wiring is shared with the SV660P, and CAN/RS485 communication cables and a termination resistor are available as accessories

Specifications

Command interface CANopen
Mounting Base mount
SV660CS1R6I Command interface: CANopen | Rated output current: 1.6 A | Max output current: 5.8 A | Input: Single-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-A | Internal regenerative resistor: None | Dimensions (WxHxD): 40 x 170 x 150 mm | Mounting: Base mount
SV660CS2R8I Command interface: CANopen | Rated output current: 2.8 A | Max output current: 10.1 A | Input: Single-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-A | Internal regenerative resistor: None | Dimensions (WxHxD): 40 x 170 x 150 mm | Mounting: Base mount
SV660CS5R5I Command interface: CANopen | Rated output current: 5.5 A | Max output current: 16.9 A | Input: Single-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-B | Internal regenerative resistor: 50 ohm / 50 W | Dimensions (WxHxD): 50 x 170 x 173 mm | Mounting: Base mount
SV660CS7R6I Command interface: CANopen | Rated output current: 7.6 A | Max output current: 23.0 A | Input: 3-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 25 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CS012I Command interface: CANopen | Rated output current: 11.6 A | Max output current: 32.0 A | Input: 3-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 25 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CT3R5I Command interface: CANopen | Rated output current: 3.5 A | Max output current: 11.0 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 100 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CT5R4I Command interface: CANopen | Rated output current: 5.4 A | Max output current: 14.0 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 100 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CT8R4I Command interface: CANopen | Rated output current: 8.4 A | Max output current: 20.0 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-D | Internal regenerative resistor: 50 ohm / 75 W | Dimensions (WxHxD): 80 x 170 x 183 mm | Mounting: Base mount
SV660CT012I Command interface: CANopen | Rated output current: 11.9 A | Max output current: 29.7 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-D | Internal regenerative resistor: 50 ohm / 75 W | Dimensions (WxHxD): 80 x 170 x 183 mm | Mounting: Base mount
SV660CT017I Command interface: CANopen | Rated output current: 16.5 A | Max output current: 41.2 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-E | Internal regenerative resistor: 35 ohm / 100 W | Dimensions (WxHxD): 90 x 250 x 230 mm | Mounting: Base mount
SV660CT021I Command interface: CANopen | Rated output current: 20.8 A | Max output current: 52.1 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-E | Internal regenerative resistor: 35 ohm / 100 W | Dimensions (WxHxD): 90 x 250 x 230 mm | Mounting: Base mount
SV660CT026I Command interface: CANopen | Rated output current: 25.7 A | Max output current: 64.2 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-E | Internal regenerative resistor: 35 ohm / 100 W | Dimensions (WxHxD): 90 x 250 x 230 mm | Mounting: Base mount
Servo DrivesInovance
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance SV660C Series CANopen Servo Drive

Brand Inovance·Servo Drives

Available part numbers (12)

SV660CS1R6I, SV660CS2R8I, SV660CS5R5I, SV660CS7R6I, SV660CS012I, SV660CT3R5I, SV660CT5R4I, SV660CT8R4I, SV660CT012I, SV660CT017I + 2 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV660CS1R6ICommand interface: CANopen | Rated output current: 1.6 A | Max output current: 5.8 A | Input: Single-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-A | Internal regenerative resistor: None | Dimensions (WxHxD): 40 x 170 x 150 mm | Mounting: Base mount
SV660CS2R8ICommand interface: CANopen | Rated output current: 2.8 A | Max output current: 10.1 A | Input: Single-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-A | Internal regenerative resistor: None | Dimensions (WxHxD): 40 x 170 x 150 mm | Mounting: Base mount
SV660CS5R5ICommand interface: CANopen | Rated output current: 5.5 A | Max output current: 16.9 A | Input: Single-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-B | Internal regenerative resistor: 50 ohm / 50 W | Dimensions (WxHxD): 50 x 170 x 173 mm | Mounting: Base mount
SV660CS7R6ICommand interface: CANopen | Rated output current: 7.6 A | Max output current: 23.0 A | Input: 3-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 25 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CS012ICommand interface: CANopen | Rated output current: 11.6 A | Max output current: 32.0 A | Input: 3-phase 200-240 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 25 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CT3R5ICommand interface: CANopen | Rated output current: 3.5 A | Max output current: 11.0 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 100 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CT5R4ICommand interface: CANopen | Rated output current: 5.4 A | Max output current: 14.0 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-C | Internal regenerative resistor: 100 ohm / 60 W | Dimensions (WxHxD): 55 x 170 x 173 mm | Mounting: Base mount
SV660CT8R4ICommand interface: CANopen | Rated output current: 8.4 A | Max output current: 20.0 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-D | Internal regenerative resistor: 50 ohm / 75 W | Dimensions (WxHxD): 80 x 170 x 183 mm | Mounting: Base mount
SV660CT012ICommand interface: CANopen | Rated output current: 11.9 A | Max output current: 29.7 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-D | Internal regenerative resistor: 50 ohm / 75 W | Dimensions (WxHxD): 80 x 170 x 183 mm | Mounting: Base mount
SV660CT017ICommand interface: CANopen | Rated output current: 16.5 A | Max output current: 41.2 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-E | Internal regenerative resistor: 35 ohm / 100 W | Dimensions (WxHxD): 90 x 250 x 230 mm | Mounting: Base mount
SV660CT021ICommand interface: CANopen | Rated output current: 20.8 A | Max output current: 52.1 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-E | Internal regenerative resistor: 35 ohm / 100 W | Dimensions (WxHxD): 90 x 250 x 230 mm | Mounting: Base mount
SV660CT026ICommand interface: CANopen | Rated output current: 25.7 A | Max output current: 64.2 A | Input: 3-phase 380-440 VAC, 50/60 Hz | Frame: SIZE-E | Internal regenerative resistor: 35 ohm / 100 W | Dimensions (WxHxD): 90 x 250 x 230 mm | Mounting: Base mount
