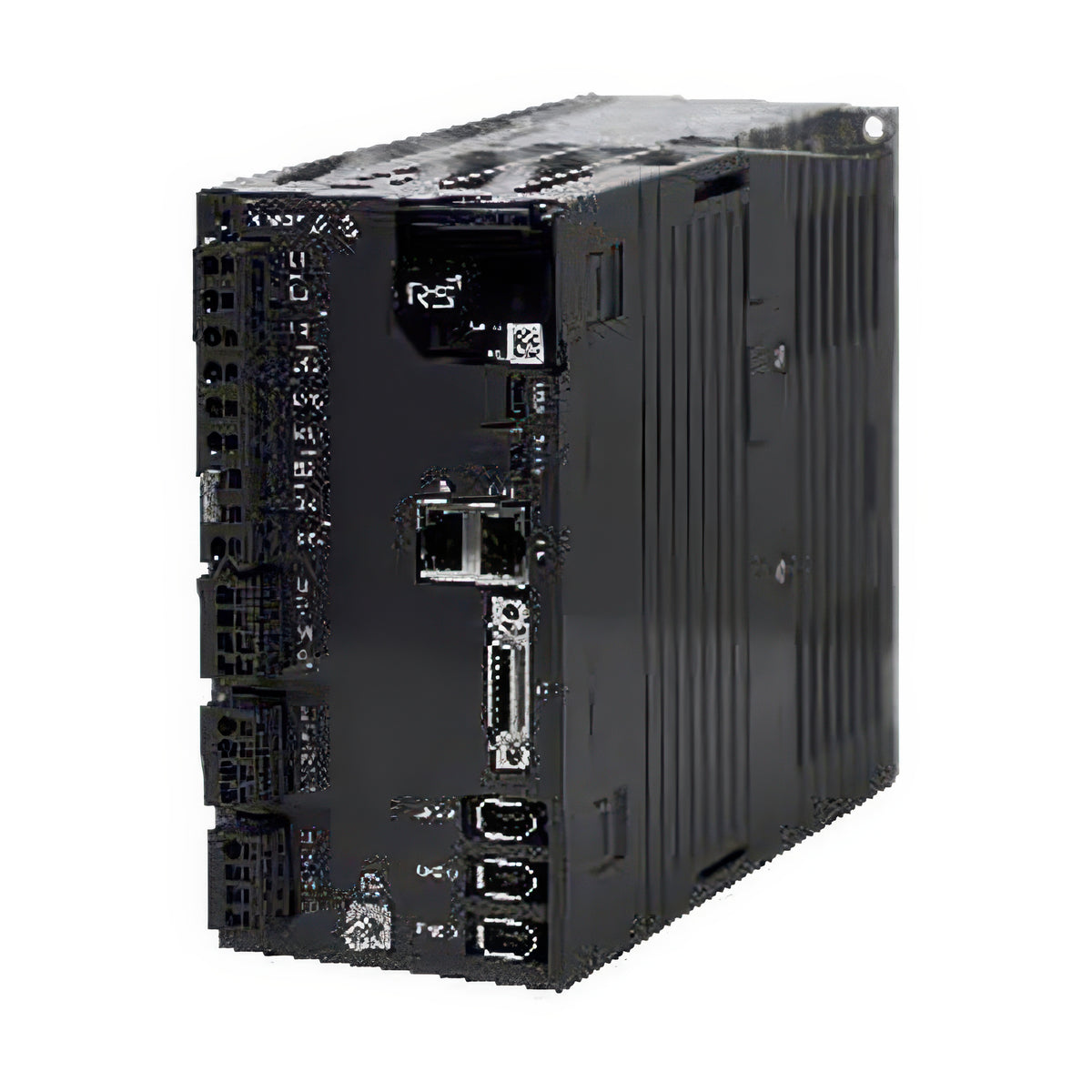

RS Automation D8 Series Multi-Axis EtherCAT Servo Drive for Linear and Rotary Motors

RS Automation D8 Series Multi-Axis EtherCAT Servo Drive for Linear and Rotary Motors

The D8 series is a compact multi-axis EtherCAT servo drive for driving linear and rotary servo motors from one unit.

Key features

  • It accepts 17/23-bit serial rotary encoders and Renishaw absolute BiSS or A/B linear scales via a serial converter
  • Each unit has a 30 ohm/100 W built-in regenerative resistor with terminals for an external resistor, plus a built-in dynamic brake circuit
  • Safe Torque Off, fault black-box logging, life prediction and torque limiting on momentary power loss are provided
  • It operates from 0 to 50 C, is rated IP20 and is CE and NRTL certified

Specifications

Network EtherCAT (CoE, FoE), 100BASE-TX
Encoder Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter
Regenerative resistor 30 ohm/100 W built in
Safety STO
Protection IP20
D8_220BDN1 Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 200 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_222BTN1 Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 200 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_440BDN1 Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 400 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_444BTN1 Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 400 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_842BTN1 Network: EtherCAT (CoE, FoE), 100BASE-TX | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_AA0BDN1 Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 1 kW | Main power: 3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
Servo DrivesRS Automation
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

RS Automation D8 Series Multi-Axis EtherCAT Servo Drive for Linear and Rotary Motors

Brand RS Automation·Servo Drives

Available part numbers (6)

D8_220BDN1, D8_222BTN1, D8_440BDN1, D8_444BTN1, D8_842BTN1, D8_AA0BDN1

How to order

Send the RS Automation part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D8_220BDN1Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 200 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_222BTN1Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 200 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_440BDN1Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 400 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_444BTN1Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 400 W | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_842BTN1Network: EtherCAT (CoE, FoE), 100BASE-TX | Main power: 1-phase/3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
D8_AA0BDN1Network: EtherCAT (CoE, FoE), 100BASE-TX | Rating class (selection table): 1 kW | Main power: 3-phase 200-230 VAC or 280-325 VDC | Encoder: Rotary 17/23-bit serial; linear Renishaw absolute BiSS or A/B with serial converter | Regenerative resistor: 30 ohm/100 W built in | Safety: STO | Protection: IP20
