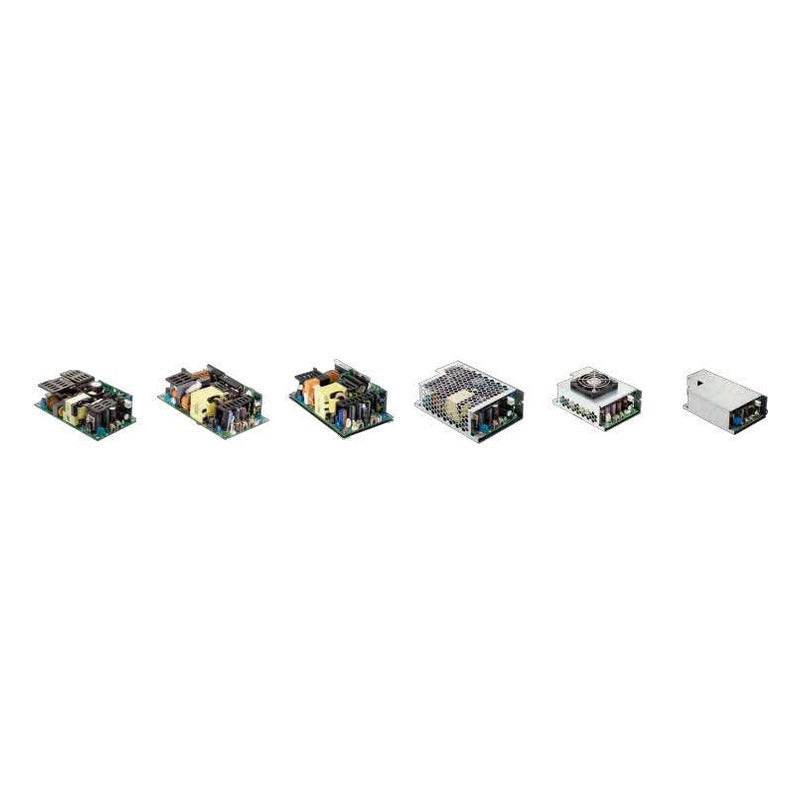

MEAN WELL RPS Series Medical Single Output PCB Type Power Supply (300-500W)

MEAN WELL RPS Series Medical Single Output PCB Type Power Supply (300-500W)

The RPS series (300-500W) is a single output medical grade PCB (open frame) type AC-DC power supply in 5"x3" size.

Key features

  • Key features: 5"x3" compact size; Built-in Active PFC; Medical safety approved(2x MOPP); Suitable for BF application with appropriate system consideration; Class I or Class II configuration
  • Also: Protections: Short Circuit/Overload/Over Voltage/Over Temp; Extremely low leakage current; Built-in P.G & P.F signal output and remote sense function; No load power consumption < 0.5W by PS-ON only

Specifications

Board size 5"x 3"
RPS-300-x○ Board size: 5"x 3" | Rating basis: Convection / 20.5CFM | Output: 12V, 16.67A / 25A; 15V, 13.33A / 20A; 24V, 8.33A / 12.5A; 27V, 7.4A / 11.12A; 48V, 4.17A / 6.25A
RPS-400-x□ Board size: 5"x 3" | Rating basis: Convection/25CFM | Output: 12V, 20.8A / 33.3A; 15V, 16.7A / 26.7A; 18V, 13.9A / 22.3A; 24V, 10.5A / 16.7A; 27V, 9.3A / 14.9A; 36V, 7A / 11.2A; 48V, 5.3A / 8.4A
RPS-500-x□ Board size: 5"x 3" | Rating basis: Convection/25CFM | Output: 12V, 26.7A / 41.6A; 15V, 21.3A / 33.3A; 18V, 17.8A / 27.8A; 24V, 13.4A / 20.8A; 27V, 11.9A / 18.5A; 36V, 8.9A / 13.9A; 48V, 6.7A / 10.4A
Medical Power SuppliesMEAN WELL
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL RPS Series Medical Single Output PCB Type Power Supply (300-500W)

Brand MEAN WELL·Medical Power Supplies

Available part numbers (3)

RPS-300-x○, RPS-400-x□, RPS-500-x□

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPS-300-x○Board size: 5"x 3" | Rating basis: Convection / 20.5CFM | Output: 12V, 16.67A / 25A; 15V, 13.33A / 20A; 24V, 8.33A / 12.5A; 27V, 7.4A / 11.12A; 48V, 4.17A / 6.25A
RPS-400-x□Board size: 5"x 3" | Rating basis: Convection/25CFM | Output: 12V, 20.8A / 33.3A; 15V, 16.7A / 26.7A; 18V, 13.9A / 22.3A; 24V, 10.5A / 16.7A; 27V, 9.3A / 14.9A; 36V, 7A / 11.2A; 48V, 5.3A / 8.4A
RPS-500-x□Board size: 5"x 3" | Rating basis: Convection/25CFM | Output: 12V, 26.7A / 41.6A; 15V, 21.3A / 33.3A; 18V, 17.8A / 27.8A; 24V, 13.4A / 20.8A; 27V, 11.9A / 18.5A; 36V, 8.9A / 13.9A; 48V, 6.7A / 10.4A
