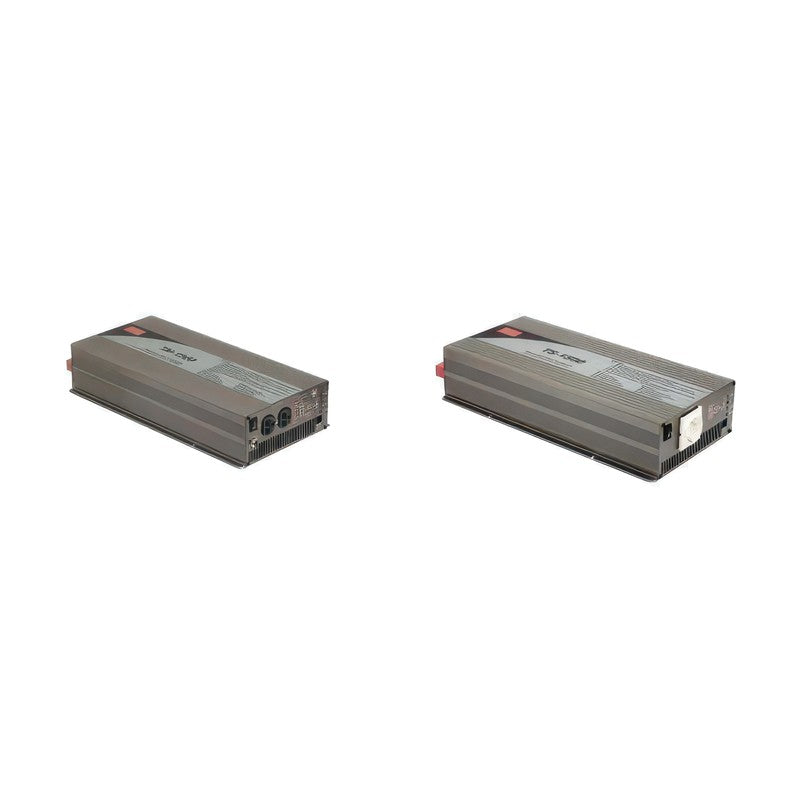

• MEAN WELL TN Series True Sine Wave DC-AC Inverter with Solar Charger (1500/3000W)
1 1

MEAN WELL TN Series True Sine Wave DC-AC Inverter with Solar Charger (1500/3000W)

MEAN WELL TN Series True Sine Wave DC-AC Inverter with Solar Charger (1500/3000W)

The TN series is a 1500/3000W true sine wave DC-AC inverter with built-in solar charger and AC grid dual source.

Key features

  • Key features: Built-in AC grid and solar dual-source charging function; True sine wave output (THD<3%); High surge power up to 200%; Advanced digital control by microprocessor; Output voltage/frequency selectable

Specifications

Input 10.5~15Vdc / 21~30Vdc / 42~60Vdc (12/24/48V models)
AC output 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch)
Built-in fan Yes
AC bypass Yes
TN-1500 Continuous power: 1500W | Input: 10.5~15Vdc / 21~30Vdc / 42~60Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: Yes | Dimensions: 420x220x88 mm
TN-3000 Continuous power: 3000W | Input: 10.5~15Vdc / 21~30Vdc / 42~60Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: Yes | Dimensions: 466.8x283x100 mm
DC-AC InvertersMEAN WELL
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL TN Series True Sine Wave DC-AC Inverter with Solar Charger (1500/3000W)

Brand MEAN WELL·DC-AC Inverters

Available part numbers (2)

TN-1500, TN-3000

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TN-1500Continuous power: 1500W | Input: 10.5~15Vdc / 21~30Vdc / 42~60Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: Yes | Dimensions: 420x220x88 mm
TN-3000Continuous power: 3000W | Input: 10.5~15Vdc / 21~30Vdc / 42~60Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: Yes | Dimensions: 466.8x283x100 mm
