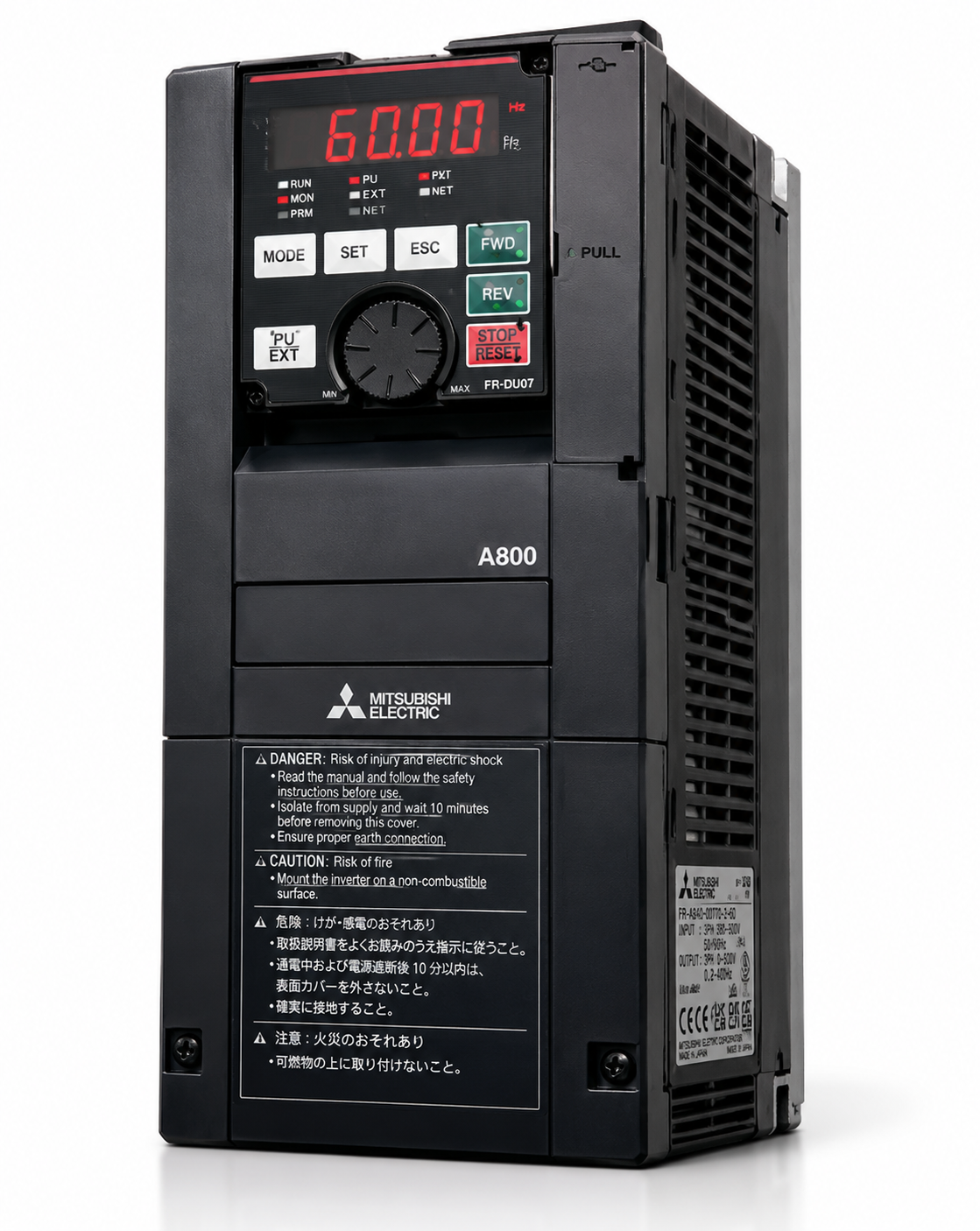

Mitsubishi Electric FREQROL FR-A820-E Three-Phase 200V High-Performance Inverter with Built-in Ethernet (0.4-90kW ND)

Mitsubishi Electric FREQROL FR-A820-E Three-Phase 200V High-Performance Inverter with Built-in Ethernet (0.4-90kW ND)

Mitsubishi FREQROL FR-A820-E high-performance inverter (VFD), Three-Phase 200V, ND 0.4-90kW, with built-in ethernet.

Key features

  • Real/PM sensorless vector, SLD/LD/ND/HD selectable rating, FM/CA output; same ratings as standard FR-A820

Specifications

Rating Modes SLD/LD/ND/HD selectable
Network Interface Built-in Ethernet (EtherNet/IP, Modbus/TCP)
Output Terminal FM (pulse) / CA (0-10V analog), Pr.54 selectable
FR-A820-0.4K-E FR-A820-E three-phase 200v inverter, ND 0.4kW (00046), built-in ethernet | Applied Motor (ND): 0.4 kW | Max Applied Motor (SLD): 0.75 kW | Rated Output Current (ND): 3 A | Rated Capacity (ND): 1.1 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00046 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Self-cooling | Weight: 2.0 kg
FR-A820-0.75K-E FR-A820-E three-phase 200v inverter, ND 0.75kW (00077), built-in ethernet | Applied Motor (ND): 0.75 kW | Max Applied Motor (SLD): 1.5 kW | Rated Output Current (ND): 5 A | Rated Capacity (ND): 1.9 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00077 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Self-cooling | Weight: 2.2 kg
FR-A820-1.5K-E FR-A820-E three-phase 200v inverter, ND 1.5kW (00105), built-in ethernet | Applied Motor (ND): 1.5 kW | Max Applied Motor (SLD): 2.2 kW | Rated Output Current (ND): 8 A | Rated Capacity (ND): 3 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00105 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 3.4 kg
FR-A820-2.2K-E FR-A820-E three-phase 200v inverter, ND 2.2kW (00167), built-in ethernet | Applied Motor (ND): 2.2 kW | Max Applied Motor (SLD): 3.7 kW | Rated Output Current (ND): 11 A | Rated Capacity (ND): 4.2 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00167 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 3.4 kg
FR-A820-3.7K-E FR-A820-E three-phase 200v inverter, ND 3.7kW (00250), built-in ethernet | Applied Motor (ND): 3.7 kW | Max Applied Motor (SLD): 5.5 kW | Rated Output Current (ND): 17.5 A | Rated Capacity (ND): 6.7 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00250 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 3.4 kg
FR-A820-5.5K-E FR-A820-E three-phase 200v inverter, ND 5.5kW (00340), built-in ethernet | Applied Motor (ND): 5.5 kW | Max Applied Motor (SLD): 7.5 kW | Rated Output Current (ND): 24 A | Rated Capacity (ND): 9.1 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00340 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 6.7 kg
FR-A820-7.5K-E FR-A820-E three-phase 200v inverter, ND 7.5kW (00490), built-in ethernet | Applied Motor (ND): 7.5 kW | Max Applied Motor (SLD): 11 kW | Rated Output Current (ND): 33 A | Rated Capacity (ND): 13 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00490 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 6.7 kg
FR-A820-11K-E FR-A820-E three-phase 200v inverter, ND 11kW (00630), built-in ethernet | Applied Motor (ND): 11 kW | Max Applied Motor (SLD): 15 kW | Rated Output Current (ND): 46 A | Rated Capacity (ND): 18 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00630 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 8.3 kg
FR-A820-15K-E FR-A820-E three-phase 200v inverter, ND 15kW (00770), built-in ethernet | Applied Motor (ND): 15 kW | Max Applied Motor (SLD): 18.5 kW | Rated Output Current (ND): 61 A | Rated Capacity (ND): 23 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00770 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 15.5 kg
FR-A820-18.5K-E FR-A820-E three-phase 200v inverter, ND 18.5kW (00930), built-in ethernet | Applied Motor (ND): 18.5 kW | Max Applied Motor (SLD): 22 kW | Rated Output Current (ND): 76 A | Rated Capacity (ND): 29 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00930 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 15.5 kg
FR-A820-22K-E FR-A820-E three-phase 200v inverter, ND 22kW (01250), built-in ethernet | Applied Motor (ND): 22 kW | Max Applied Motor (SLD): 30 kW | Rated Output Current (ND): 90 A | Rated Capacity (ND): 34 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 01250 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 15.5 kg
FR-A820-30K-E FR-A820-E three-phase 200v inverter, ND 30kW (01540), built-in ethernet | Applied Motor (ND): 30 kW | Max Applied Motor (SLD): 37 kW | Rated Output Current (ND): 115 A | Rated Capacity (ND): 44 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 01540 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 22 kg
FR-A820-37K-E FR-A820-E three-phase 200v inverter, ND 37kW (01870), built-in ethernet | Applied Motor (ND): 37 kW | Max Applied Motor (SLD): 45 kW | Rated Output Current (ND): 145 A | Rated Capacity (ND): 55 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 01870 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 42 kg
FR-A820-45K-E FR-A820-E three-phase 200v inverter, ND 45kW (02330), built-in ethernet | Applied Motor (ND): 45 kW | Max Applied Motor (SLD): 55 kW | Rated Output Current (ND): 175 A | Rated Capacity (ND): 67 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 02330 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 42 kg
FR-A820-55K-E FR-A820-E three-phase 200v inverter, ND 55kW (03160), built-in ethernet | Applied Motor (ND): 55 kW | Max Applied Motor (SLD): 75 kW | Rated Output Current (ND): 215 A | Rated Capacity (ND): 82 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 03160 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 54 kg
FR-A820-75K-E FR-A820-E three-phase 200v inverter, ND 75kW (03800), built-in ethernet | Applied Motor (ND): 75 kW | Max Applied Motor (SLD): 90/110 kW | Rated Output Current (ND): 288 A | Rated Capacity (ND): 110 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 03800 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 74 kg
FR-A820-90K-E FR-A820-E three-phase 200v inverter, ND 90kW (04750), built-in ethernet | Applied Motor (ND): 90 kW | Max Applied Motor (SLD): 132 kW | Rated Output Current (ND): 346 A | Rated Capacity (ND): 132 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 04750 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 74 kg
Inverters (VFD)Mitsubishi Electric
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FREQROL FR-A820-E Three-Phase 200V High-Performance Inverter with Built-in Ethernet (0.4-90kW ND)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (17)

FR-A820-0.4K-E, FR-A820-0.75K-E, FR-A820-1.5K-E, FR-A820-2.2K-E, FR-A820-3.7K-E, FR-A820-5.5K-E, FR-A820-7.5K-E, FR-A820-11K-E, FR-A820-15K-E, FR-A820-18.5K-E + 7 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-A820-0.4K-EFR-A820-E three-phase 200v inverter, ND 0.4kW (00046), built-in ethernet | Applied Motor (ND): 0.4 kW | Max Applied Motor (SLD): 0.75 kW | Rated Output Current (ND): 3 A | Rated Capacity (ND): 1.1 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00046 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Self-cooling | Weight: 2.0 kg
FR-A820-0.75K-EFR-A820-E three-phase 200v inverter, ND 0.75kW (00077), built-in ethernet | Applied Motor (ND): 0.75 kW | Max Applied Motor (SLD): 1.5 kW | Rated Output Current (ND): 5 A | Rated Capacity (ND): 1.9 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00077 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Self-cooling | Weight: 2.2 kg
FR-A820-1.5K-EFR-A820-E three-phase 200v inverter, ND 1.5kW (00105), built-in ethernet | Applied Motor (ND): 1.5 kW | Max Applied Motor (SLD): 2.2 kW | Rated Output Current (ND): 8 A | Rated Capacity (ND): 3 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00105 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 3.4 kg
FR-A820-2.2K-EFR-A820-E three-phase 200v inverter, ND 2.2kW (00167), built-in ethernet | Applied Motor (ND): 2.2 kW | Max Applied Motor (SLD): 3.7 kW | Rated Output Current (ND): 11 A | Rated Capacity (ND): 4.2 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00167 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 3.4 kg
FR-A820-3.7K-EFR-A820-E three-phase 200v inverter, ND 3.7kW (00250), built-in ethernet | Applied Motor (ND): 3.7 kW | Max Applied Motor (SLD): 5.5 kW | Rated Output Current (ND): 17.5 A | Rated Capacity (ND): 6.7 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00250 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 3.4 kg
FR-A820-5.5K-EFR-A820-E three-phase 200v inverter, ND 5.5kW (00340), built-in ethernet | Applied Motor (ND): 5.5 kW | Max Applied Motor (SLD): 7.5 kW | Rated Output Current (ND): 24 A | Rated Capacity (ND): 9.1 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00340 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 6.7 kg
FR-A820-7.5K-EFR-A820-E three-phase 200v inverter, ND 7.5kW (00490), built-in ethernet | Applied Motor (ND): 7.5 kW | Max Applied Motor (SLD): 11 kW | Rated Output Current (ND): 33 A | Rated Capacity (ND): 13 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00490 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 6.7 kg
FR-A820-11K-EFR-A820-E three-phase 200v inverter, ND 11kW (00630), built-in ethernet | Applied Motor (ND): 11 kW | Max Applied Motor (SLD): 15 kW | Rated Output Current (ND): 46 A | Rated Capacity (ND): 18 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00630 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 8.3 kg
FR-A820-15K-EFR-A820-E three-phase 200v inverter, ND 15kW (00770), built-in ethernet | Applied Motor (ND): 15 kW | Max Applied Motor (SLD): 18.5 kW | Rated Output Current (ND): 61 A | Rated Capacity (ND): 23 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00770 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 15.5 kg
FR-A820-18.5K-EFR-A820-E three-phase 200v inverter, ND 18.5kW (00930), built-in ethernet | Applied Motor (ND): 18.5 kW | Max Applied Motor (SLD): 22 kW | Rated Output Current (ND): 76 A | Rated Capacity (ND): 29 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 00930 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 15.5 kg
FR-A820-22K-EFR-A820-E three-phase 200v inverter, ND 22kW (01250), built-in ethernet | Applied Motor (ND): 22 kW | Max Applied Motor (SLD): 30 kW | Rated Output Current (ND): 90 A | Rated Capacity (ND): 34 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 01250 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 15.5 kg
FR-A820-30K-EFR-A820-E three-phase 200v inverter, ND 30kW (01540), built-in ethernet | Applied Motor (ND): 30 kW | Max Applied Motor (SLD): 37 kW | Rated Output Current (ND): 115 A | Rated Capacity (ND): 44 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 01540 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 22 kg
FR-A820-37K-EFR-A820-E three-phase 200v inverter, ND 37kW (01870), built-in ethernet | Applied Motor (ND): 37 kW | Max Applied Motor (SLD): 45 kW | Rated Output Current (ND): 145 A | Rated Capacity (ND): 55 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 01870 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 42 kg
FR-A820-45K-EFR-A820-E three-phase 200v inverter, ND 45kW (02330), built-in ethernet | Applied Motor (ND): 45 kW | Max Applied Motor (SLD): 55 kW | Rated Output Current (ND): 175 A | Rated Capacity (ND): 67 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 02330 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 42 kg
FR-A820-55K-EFR-A820-E three-phase 200v inverter, ND 55kW (03160), built-in ethernet | Applied Motor (ND): 55 kW | Max Applied Motor (SLD): 75 kW | Rated Output Current (ND): 215 A | Rated Capacity (ND): 82 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 03160 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 54 kg
FR-A820-75K-EFR-A820-E three-phase 200v inverter, ND 75kW (03800), built-in ethernet | Applied Motor (ND): 75 kW | Max Applied Motor (SLD): 90/110 kW | Rated Output Current (ND): 288 A | Rated Capacity (ND): 110 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 03800 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 74 kg
FR-A820-90K-EFR-A820-E three-phase 200v inverter, ND 90kW (04750), built-in ethernet | Applied Motor (ND): 90 kW | Max Applied Motor (SLD): 132 kW | Rated Output Current (ND): 346 A | Rated Capacity (ND): 132 kVA | Rating Modes: SLD/LD/ND/HD selectable | Inverter Rating Code: 04750 | Network Interface: Built-in Ethernet (EtherNet/IP, Modbus/TCP) | Output Terminal: FM (pulse) / CA (0-10V analog), Pr.54 selectable | Cooling: Forced-air cooling | Weight: 74 kg
