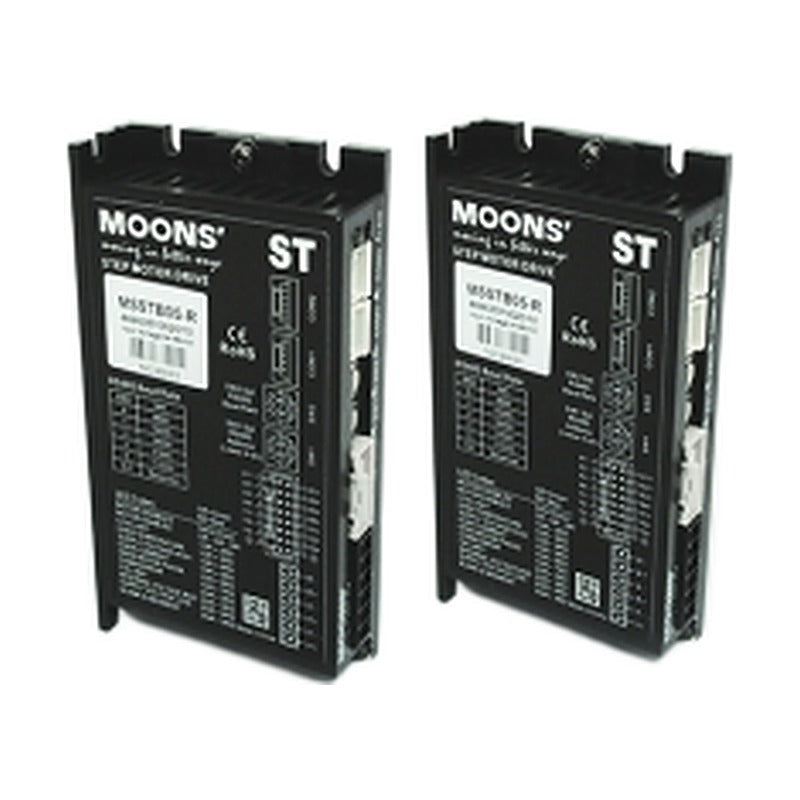

MOONS' MSSTB Series Fieldbus Stepper Drives (RS-485/CANopen)

MOONS' MSSTB Series Fieldbus Stepper Drives (RS-485/CANopen)

High-performance fieldbus stepper drives with a built-in motion controller. Controlled by SCL, Modbus/RTU or CANopen, or run stored Q programs stand-alone.

Key features

  • Built-in motion controller (Q program)
  • SCL, Modbus/RTU (-R) or CANopen (-C) control
  • Dual-port RS-485/422 or CANopen
  • 4 isolated inputs, 3 isolated outputs
  • Encoder input
  • Anti-resonance and microstep emulation

Specifications

Supply MSSTB05: 24-48 VDC, MSSTB10: 24-70 VDC
Output current 5 A (05) / 10 A (10) peak-of-sine
-R model Dual RS-485/422, Modbus/RTU
-C model Dual CANopen (CiA301/402) + RS-232
Digital inputs 4 isolated, 5-24 VDC
Digital outputs 3 isolated, 30 V / 100 mA
Source MOONS' MSSTB-R/C hardware manual
MSSTB05-R Current: 5 A | Supply: 24-48 VDC | Comm: RS-485/Modbus
MSSTB05-C Current: 5 A | Supply: 24-48 VDC | Comm: CANopen
MSSTB10-R Current: 10 A | Supply: 24-70 VDC | Comm: RS-485/Modbus
MSSTB10-C Current: 10 A | Supply: 24-70 VDC | Comm: CANopen
Stepper DriversMOONS'
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MOONS' MSSTB Series Fieldbus Stepper Drives (RS-485/CANopen)

Brand MOONS'·Stepper Drivers

Available part numbers (4)

MSSTB05-R, MSSTB05-C, MSSTB10-R, MSSTB10-C

How to order

Send the MOONS' part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSSTB05-RCurrent: 5 A | Supply: 24-48 VDC | Comm: RS-485/Modbus
MSSTB05-CCurrent: 5 A | Supply: 24-48 VDC | Comm: CANopen
MSSTB10-RCurrent: 10 A | Supply: 24-70 VDC | Comm: RS-485/Modbus
MSSTB10-CCurrent: 10 A | Supply: 24-70 VDC | Comm: CANopen
