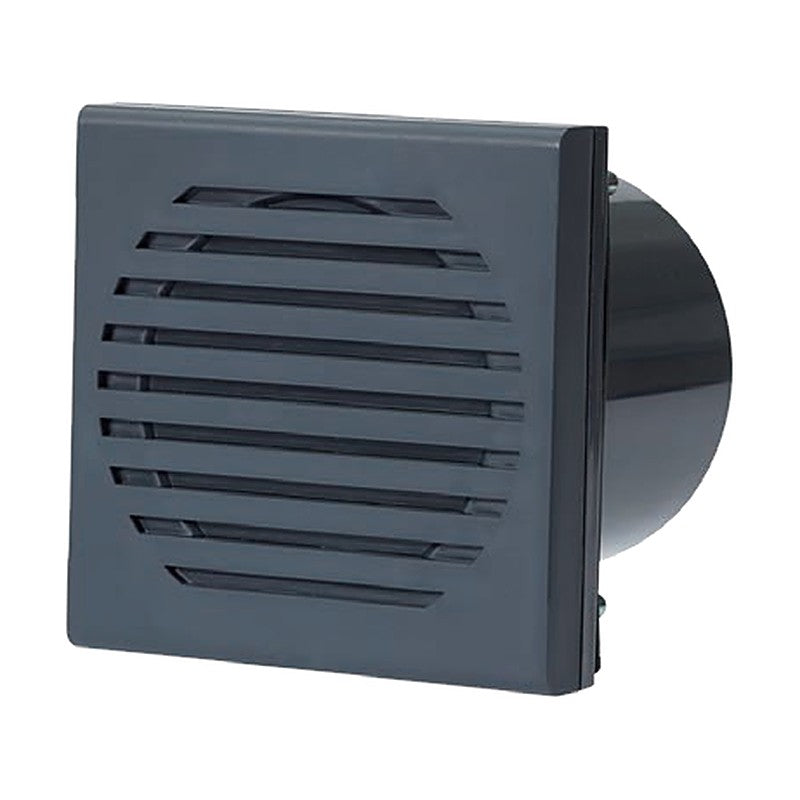

Qlight SPK Panel Mounted Speaker, Max. 90 dB

Qlight SPK Panel Mounted Speaker, Max. 90 dB

Panel-mounted speaker for 62x62 mm mounting holes that plays warning sounds, melodies and alarms.

Key features

  • Fits general 62x62 mm panel mounting holes
  • Volume adjustable without dismantling
  • SPK: 5 warnings, 5 melodies, 5 alarms (sound group by ordering code)
  • SPK-N: single-tone version with power-only terminal block
  • Wiring terminal on the back

Specifications

Protection rating IP23
Ambient temperature -25 to +50 °C
Materials Housing ABS, cover ABS
Sound volume Max. 90 dB at 1 m
Voltage DC12V, DC24V, AC110V, AC220V
Weight 0.19kg DC, 0.21kg AC
Compliance RoHS
SPK Sounds: WS warnings, WM melodies, WA alarms | Current: 290mA DC12V, 200mA DC24V, 35mA AC110V, 20mA AC220V
SPK-N Sounds: single tone | Current: 250mA DC12V, 130mA DC24V, 65mA AC110V, 45mA AC220V
Electronic BuzzersQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SPK Panel Mounted Speaker, Max. 90 dB

Brand Qlight·Electronic Buzzers

Available part numbers (2)

SPK, SPK-N

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPKSounds: WS warnings, WM melodies, WA alarms | Current: 290mA DC12V, 200mA DC24V, 35mA AC110V, 20mA AC220V
SPK-NSounds: single tone | Current: 250mA DC12V, 130mA DC24V, 65mA AC110V, 45mA AC220V

Need a different model, or a part not listed here? Send us your parts list →
