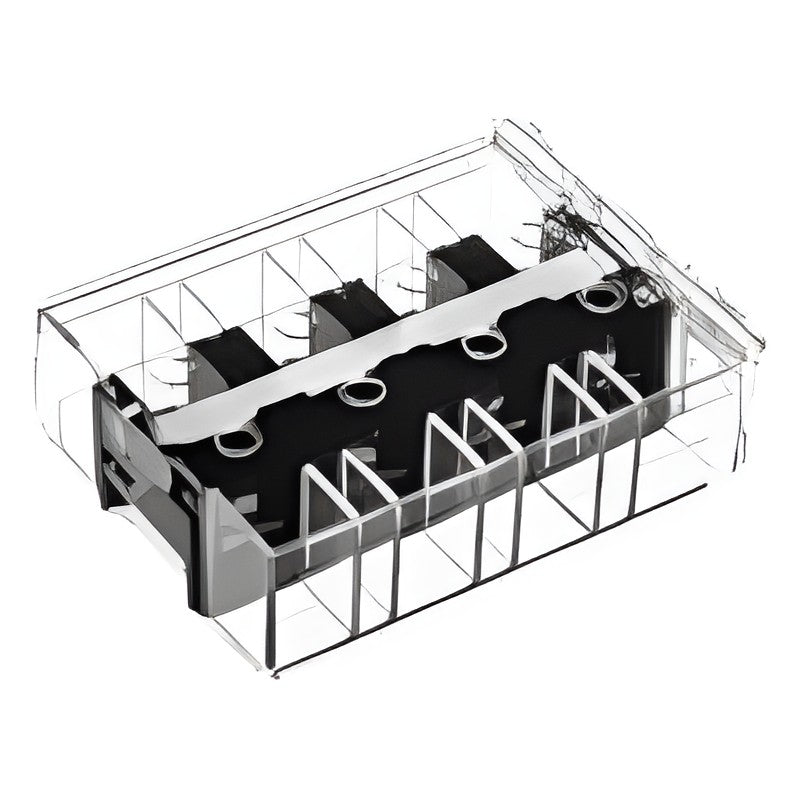

KACON KTB1 Power Distribution Block with H Type Hinged Safety Cover, 60A-200A
KACON KTB1 Power Distribution Block with H Type Hinged Safety Cover, 60A-200A
High-current power distribution terminal blocks (60A to 200A, 3 or 4 poles) shipped with insulated wall covers and a hinged H type safety cover.
Key features
- Hinged clear cover opens for wiring and inspection without removal
- Insulated wall covers between poles
- Shipped factory-assembled: terminal block + insulated wall cover + hinged cover
- Phenolic resin body, brass terminals, M6.0 to M8.0 terminal bolts
- Rated up to 600VAC
Specifications
| Rated voltage | Max. 600VAC |
|---|---|
| Insulation resistance | 1,000 MOhm min. (at 500VDC) |
| Dielectric strength | 2,500VAC for 1 minute |
| Cover material | PC, clear |
| Terminal material | 1st grade brass |
| Name plate | PVC (pearl white) |
| Ambient temperature | -20 to 60°C |
| KTB1-06003-H | Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06003 + insulated wall cover KTB1-060BC + hinged cover KTB1-060A3HC | |
| KTB1-06004-H | Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06004 + insulated wall cover KTB1-060BC + hinged cover KTB1-060A4HC | |
| KTB1-10003-H | Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10003 + insulated wall cover KTB1-100BC + hinged cover KTB1-100A3HC | |
| KTB1-10004-H | Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10004 + insulated wall cover KTB1-100BC + hinged cover KTB1-100A4HC | |
| KTB1-15003-H | Rated current: 150A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15003 + insulated wall cover KTB1-150BC + hinged cover KTB1-150A3HC | |
| KTB1-15004-H | Rated current: 150A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15004 + insulated wall cover KTB1-150BC + hinged cover KTB1-150A4HC | |
| KTB1-20003-H | Rated current: 200A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20003 + insulated wall cover KTB1-200BC + hinged cover KTB1-200A3HC | |
| KTB1-20004-H | Rated current: 200A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20004 + insulated wall cover KTB1-200BC + hinged cover KTB1-200A4HC |
Terminal BlocksKACON
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KTB1 Power Distribution Block with H Type Hinged Safety Cover, 60A-200A
Available part numbers (8)
KTB1-06003-H, KTB1-06004-H, KTB1-10003-H, KTB1-10004-H, KTB1-15003-H, KTB1-15004-H, KTB1-20003-H, KTB1-20004-H
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
Terminal Blocks
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KTB1-06003-H | Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06003 + insulated wall cover KTB1-060BC + hinged cover KTB1-060A3HC | ||
| KTB1-06004-H | Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06004 + insulated wall cover KTB1-060BC + hinged cover KTB1-060A4HC | ||
| KTB1-10003-H | Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10003 + insulated wall cover KTB1-100BC + hinged cover KTB1-100A3HC | ||
| KTB1-10004-H | Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10004 + insulated wall cover KTB1-100BC + hinged cover KTB1-100A4HC | ||
| KTB1-15003-H | Rated current: 150A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15003 + insulated wall cover KTB1-150BC + hinged cover KTB1-150A3HC | ||
| KTB1-15004-H | Rated current: 150A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15004 + insulated wall cover KTB1-150BC + hinged cover KTB1-150A4HC | ||
| KTB1-20003-H | Rated current: 200A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20003 + insulated wall cover KTB1-200BC + hinged cover KTB1-200A3HC | ||
| KTB1-20004-H | Rated current: 200A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20004 + insulated wall cover KTB1-200BC + hinged cover KTB1-200A4HC |
