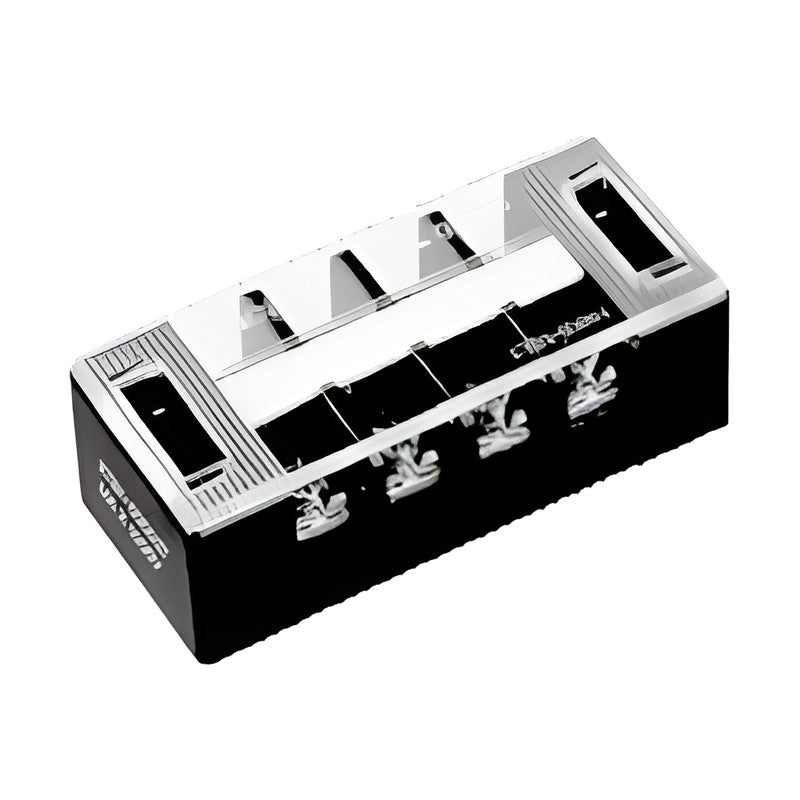

KACON KTB1-Z Solar Terminal Block 1,500VDC, 60A-100A

KACON KTB1-Z Solar Terminal Block 1,500VDC, 60A-100A

Fixed power terminal blocks rated 1,500VDC for photovoltaic combiner and distribution wiring, in 60A and 100A, 3 or 4 poles.

Key features

  • Fire-retardant PC and high-density phenolic resin construction
  • Excellent strength and insulation
  • Corrosion-resistant surface treatment
  • Transparent cover, brass terminals

Specifications

Rated voltage 1,500VDC / 1,000VAC
Insulation resistance 1,000 MOhm min. (at 500VDC)
Dielectric strength 2,600VAC for 1 minute
Body material Fire-resistant phenolic resin (V0)
Cover material Fire-resistant transparent resin (V2)
Terminal material 1st class brass
Name pad PVC
Ambient temperature -20 to 60°C
KACON KTB1-Z Solar Terminal Block 1,500VDC, 60A-100A - reference 2
KTB1-06003Z Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Lug (W/L/I/d): 14.5 / 35.5 / 14.5 / dia. 6.1 mm | Size: 85.5 x 43 x 31.5 mm
KTB1-06004Z Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Lug (W/L/I/d): 14.5 / 35.5 / 14.5 / dia. 6.1 mm | Size: 114.5 x 43 x 31.5 mm
KTB1-10003Z Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Lug (W/L/I/d): 19.5 / 45.6 / 20.0 / dia. 8.1 mm | Size: 104 x 54.5 x 36 mm
KTB1-10004Z Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Lug (W/L/I/d): 19.5 / 45.6 / 20.0 / dia. 8.1 mm | Size: 136.5 x 54.5 x 36 mm
