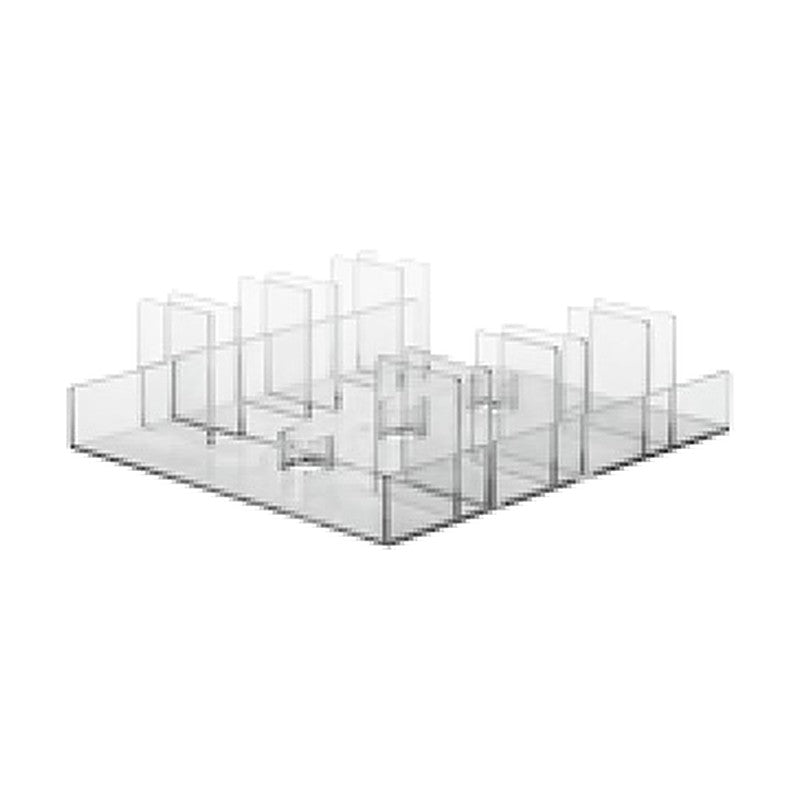

KACON KTB1 Insulated Wall Covers (BC) for H Type

KACON KTB1 Insulated Wall Covers (BC) for H Type

Insulated wall (barrier) covers for KTB1 60A-200A power distribution blocks used with the H type hinged cover.

Key features

  • 4-pole cover that can be separated to match 3-pole blocks
  • Insulates adjacent poles

Specifications

Poles 4 (separable)
Material Flame-retardant resin (V2)
KTB1-060BC For terminal block: KTB1-06003, KTB1-06004 | Size (A x B x C x D x E x F): 44 x 17.5 x 30.6 x 81 x 104 x 74.4 mm
KTB1-100BC For terminal block: KTB1-10003, KTB1-10004 | Size (A x B x C x D x E x F): 55.2 x 23.2 x 33.6 x 105 x 125 x 90.8 mm
KTB1-150BC For terminal block: KTB1-15003, KTB1-15004 | Size (A x B x C x D x E x F): 66.8 x 25.8 x 37.1 x 126 x 145 x 104.1 mm
KTB1-200BC For terminal block: KTB1-20003, KTB1-20004 | Size (A x B x C x D x E x F): 73 x 28.9 x 45.2 x 141 x 165 x 118.6 mm
Terminal Block AccessoriesKACON
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB1 Insulated Wall Covers (BC) for H Type

Brand KACON·Terminal Block Accessories

Available part numbers (4)

KTB1-060BC, KTB1-100BC, KTB1-150BC, KTB1-200BC

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTB1-060BCFor terminal block: KTB1-06003, KTB1-06004 | Size (A x B x C x D x E x F): 44 x 17.5 x 30.6 x 81 x 104 x 74.4 mm
KTB1-100BCFor terminal block: KTB1-10003, KTB1-10004 | Size (A x B x C x D x E x F): 55.2 x 23.2 x 33.6 x 105 x 125 x 90.8 mm
KTB1-150BCFor terminal block: KTB1-15003, KTB1-15004 | Size (A x B x C x D x E x F): 66.8 x 25.8 x 37.1 x 126 x 145 x 104.1 mm
KTB1-200BCFor terminal block: KTB1-20003, KTB1-20004 | Size (A x B x C x D x E x F): 73 x 28.9 x 45.2 x 141 x 165 x 118.6 mm
