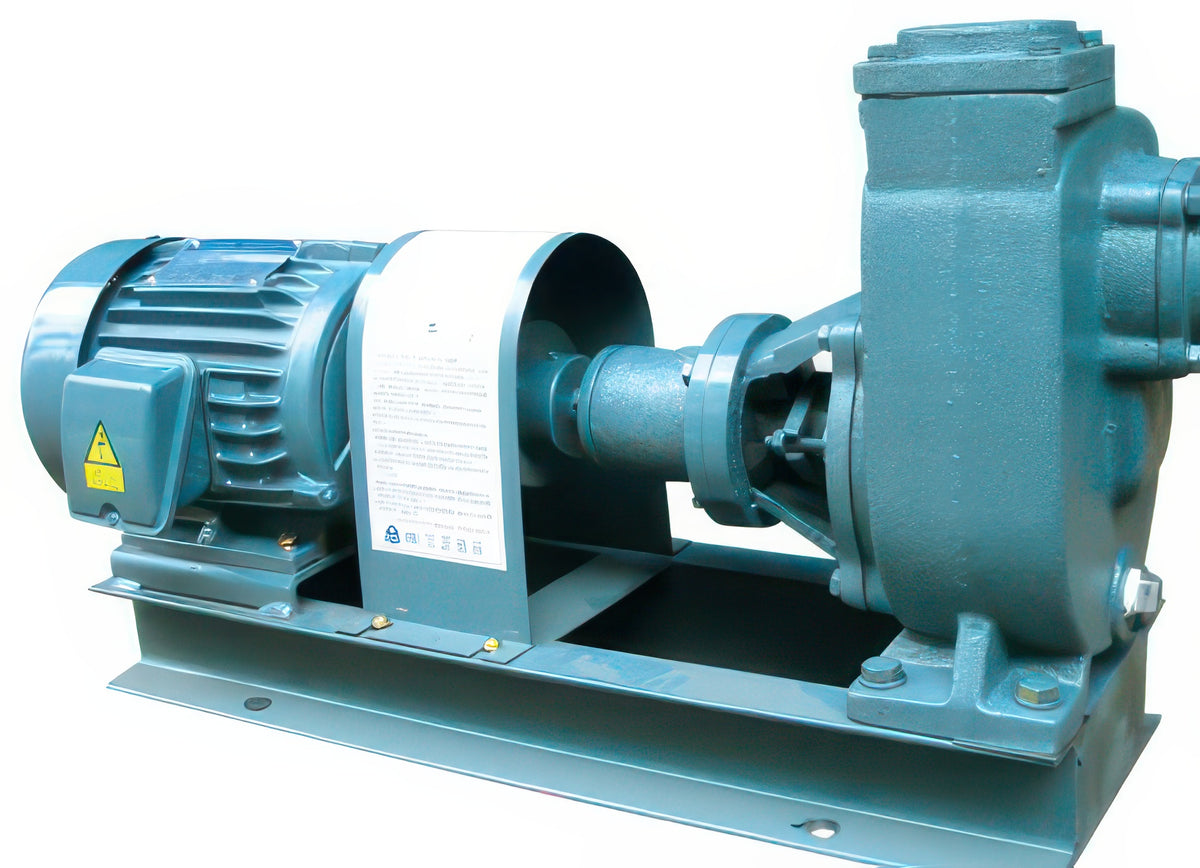

Samjung Pump Self-Priming Centrifugal Pump SJSB Series

Samjung Pump Self-Priming Centrifugal Pump SJSB Series

Self-priming centrifugal pump with integral priming chamber, coupled to an electric motor on a steel base.

Key features

  • No foot valve is needed and the simple, robust construction is easy to dismantle and assemble
  • Maximum capacity 2.5 m3/min, maximum head 30 m, liquid temperature up to 90 C at 1750 rpm
  • Suitable for water supply, drainage, sea water, irrigation and general transfer where suction lift is required

Specifications

Speed (rpm) 1750
Max Temperature (C) 90
Connection threaded / RF flange (KS B 1511, 10K)
SJSB 40 Suction & Discharge Bore (mm): 40 | Motor (HP): 1 | Flow (m3/min): 0.15 | Head (m): 7 | Bearing: 6204zz | Mechanical Seal Size (mm): 20 | Weight (kg): 34 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 50 Suction & Discharge Bore (mm): 50 | Motor (HP): 2 | Flow (m3/min): 0.25 | Head (m): 10 | Bearing: 6205zz | Mechanical Seal Size (mm): 25 | Weight (kg): 40 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 65 Suction & Discharge Bore (mm): 65 | Motor (HP): 3 | Flow (m3/min): 0.40 | Head (m): 12 | Bearing: 6205zz | Mechanical Seal Size (mm): 25 | Weight (kg): 50 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 80 Suction & Discharge Bore (mm): 80 | Motor (HP): 5 | Flow (m3/min): 0.60 | Head (m): 14 | Bearing: 6205zz | Mechanical Seal Size (mm): 25 | Weight (kg): 58 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 100 Suction & Discharge Bore (mm): 100 | Motor (HP): 10 | Flow (m3/min): 1.00 | Head (m): 15 | Bearing: 6306zz | Mechanical Seal Size (mm): 30 | Weight (kg): 80 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 125 Suction & Discharge Bore (mm): 125 | Motor (HP): 15 | Flow (m3/min): 1.50 | Head (m): 16 | Bearing: 6308zz | Mechanical Seal Size (mm): 35 | Weight (kg): 110 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 150 Suction & Discharge Bore (mm): 150 | Motor (HP): 20 | Flow (m3/min): 2.00 | Head (m): 17 | Bearing: 6308zz | Mechanical Seal Size (mm): 40 | Weight (kg): 210 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
Self-Priming PumpsSamjung Pump
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samjung Pump Self-Priming Centrifugal Pump SJSB Series

Brand Samjung Pump·Self-Priming Pumps

Available part numbers (7)

SJSB 40, SJSB 50, SJSB 65, SJSB 80, SJSB 100, SJSB 125, SJSB 150

How to order

Send the Samjung Pump part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SJSB 40Suction & Discharge Bore (mm): 40 | Motor (HP): 1 | Flow (m3/min): 0.15 | Head (m): 7 | Bearing: 6204zz | Mechanical Seal Size (mm): 20 | Weight (kg): 34 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 50Suction & Discharge Bore (mm): 50 | Motor (HP): 2 | Flow (m3/min): 0.25 | Head (m): 10 | Bearing: 6205zz | Mechanical Seal Size (mm): 25 | Weight (kg): 40 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 65Suction & Discharge Bore (mm): 65 | Motor (HP): 3 | Flow (m3/min): 0.40 | Head (m): 12 | Bearing: 6205zz | Mechanical Seal Size (mm): 25 | Weight (kg): 50 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 80Suction & Discharge Bore (mm): 80 | Motor (HP): 5 | Flow (m3/min): 0.60 | Head (m): 14 | Bearing: 6205zz | Mechanical Seal Size (mm): 25 | Weight (kg): 58 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 100Suction & Discharge Bore (mm): 100 | Motor (HP): 10 | Flow (m3/min): 1.00 | Head (m): 15 | Bearing: 6306zz | Mechanical Seal Size (mm): 30 | Weight (kg): 80 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 125Suction & Discharge Bore (mm): 125 | Motor (HP): 15 | Flow (m3/min): 1.50 | Head (m): 16 | Bearing: 6308zz | Mechanical Seal Size (mm): 35 | Weight (kg): 110 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
SJSB 150Suction & Discharge Bore (mm): 150 | Motor (HP): 20 | Flow (m3/min): 2.00 | Head (m): 17 | Bearing: 6308zz | Mechanical Seal Size (mm): 40 | Weight (kg): 210 | Speed (rpm): 1750 | Max Temperature (C): 90 | Connection: threaded / RF flange (KS B 1511, 10K)
