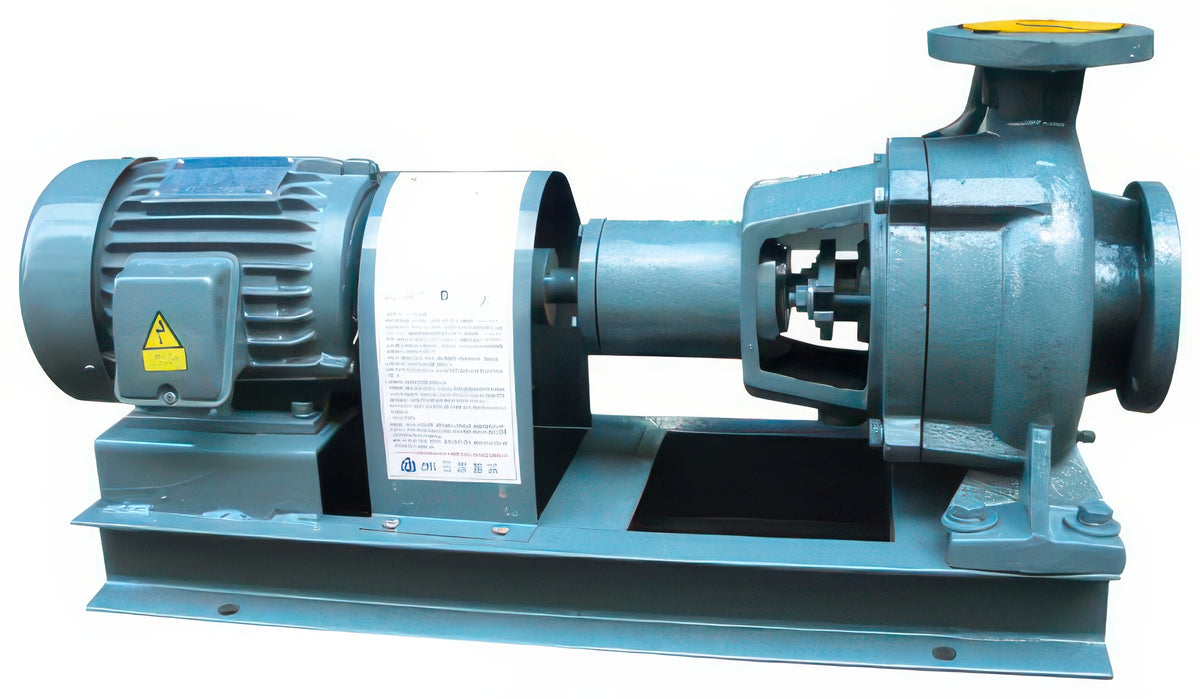

Samjung Pump Vortex (Non-Clog) Pump SJVP Series (Base-Mounted, Motor Coupled)

Samjung Pump Vortex (Non-Clog) Pump SJVP Series (Base-Mounted, Motor Coupled)

Horizontal vortex (recessed impeller) pump for liquids containing solids and fibres, coupled to an electric motor on a steel base.

Key features

  • The recessed impeller creates a vortex so that solids pass without contacting the vanes, giving long life and low clogging
  • Easy to dismantle and assemble; maximum capacity 2.0 m3/min and maximum head 17 m at 1750 rpm, liquid temperature up to 80 C
  • Used for sewage, waste water, food and chemical process liquids and slurries

Specifications

Speed (rpm) 1750
Max Temperature (C) 80
Flange RF (KS B 1511, 10K)
SJVP 50X40 Suction x Discharge (mm): 50x40 | Motor (HP): 2 | Flow / Head 1: 0.2 m3/min @ 8 m | Flow / Head 2: 0.4 m3/min @ 5 m | Bearing: 6305zz | Mechanical Seal Size (mm): 25 | Weight (kg): 32 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 65X50 Suction x Discharge (mm): 65x50 | Motor (HP): 3 | Flow / Head 1: 0.3 m3/min @ 10 m | Flow / Head 2: 0.7 m3/min @ 6 m | Bearing: 6306zz | Mechanical Seal Size (mm): 30 | Weight (kg): 36 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 80X65 Suction x Discharge (mm): 80x65 | Motor (HP): 5 | Flow / Head 1: 0.5 m3/min @ 13 m | Flow / Head 2: 0.9 m3/min @ 7 m | Bearing: 6306zz | Mechanical Seal Size (mm): 30 | Weight (kg): 42 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 100X80 Suction x Discharge (mm): 100x80 | Motor (HP): 7.5 | Flow / Head 1: 0.6 m3/min @ 15 m | Flow / Head 2: 1.4 m3/min @ 8 m | Bearing: 6307zz | Mechanical Seal Size (mm): 35 | Weight (kg): 53 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 125X100 Suction x Discharge (mm): 125x100 | Motor (HP): 15 | Flow / Head 1: 0.9 m3/min @ 15 m | Flow / Head 2: 1.5 m3/min @ 10 m | Bearing: 6307zz | Mechanical Seal Size (mm): 35 | Weight (kg): 67 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 150X125 Suction x Discharge (mm): 150x125 | Motor (HP): 20 | Flow / Head 1: 1.4 m3/min @ 17 m | Flow / Head 2: 2.0 m3/min @ 13 m | Bearing: 6308zz | Mechanical Seal Size (mm): 35 | Weight (kg): 76 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
Vortex PumpsSamjung Pump
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samjung Pump Vortex (Non-Clog) Pump SJVP Series (Base-Mounted, Motor Coupled)

Brand Samjung Pump·Vortex Pumps

Available part numbers (6)

SJVP 50X40, SJVP 65X50, SJVP 80X65, SJVP 100X80, SJVP 125X100, SJVP 150X125

How to order

Send the Samjung Pump part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SJVP 50X40Suction x Discharge (mm): 50x40 | Motor (HP): 2 | Flow / Head 1: 0.2 m3/min @ 8 m | Flow / Head 2: 0.4 m3/min @ 5 m | Bearing: 6305zz | Mechanical Seal Size (mm): 25 | Weight (kg): 32 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 65X50Suction x Discharge (mm): 65x50 | Motor (HP): 3 | Flow / Head 1: 0.3 m3/min @ 10 m | Flow / Head 2: 0.7 m3/min @ 6 m | Bearing: 6306zz | Mechanical Seal Size (mm): 30 | Weight (kg): 36 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 80X65Suction x Discharge (mm): 80x65 | Motor (HP): 5 | Flow / Head 1: 0.5 m3/min @ 13 m | Flow / Head 2: 0.9 m3/min @ 7 m | Bearing: 6306zz | Mechanical Seal Size (mm): 30 | Weight (kg): 42 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 100X80Suction x Discharge (mm): 100x80 | Motor (HP): 7.5 | Flow / Head 1: 0.6 m3/min @ 15 m | Flow / Head 2: 1.4 m3/min @ 8 m | Bearing: 6307zz | Mechanical Seal Size (mm): 35 | Weight (kg): 53 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 125X100Suction x Discharge (mm): 125x100 | Motor (HP): 15 | Flow / Head 1: 0.9 m3/min @ 15 m | Flow / Head 2: 1.5 m3/min @ 10 m | Bearing: 6307zz | Mechanical Seal Size (mm): 35 | Weight (kg): 67 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
SJVP 150X125Suction x Discharge (mm): 150x125 | Motor (HP): 20 | Flow / Head 1: 1.4 m3/min @ 17 m | Flow / Head 2: 2.0 m3/min @ 13 m | Bearing: 6308zz | Mechanical Seal Size (mm): 35 | Weight (kg): 76 | Speed (rpm): 1750 | Max Temperature (C): 80 | Flange: RF (KS B 1511, 10K)
