Samjung Pump Submersible Drainage Pump for Civil Engineering Works SJTV Series

Samjung Pump Submersible Drainage Pump for Civil Engineering Works SJTV Series

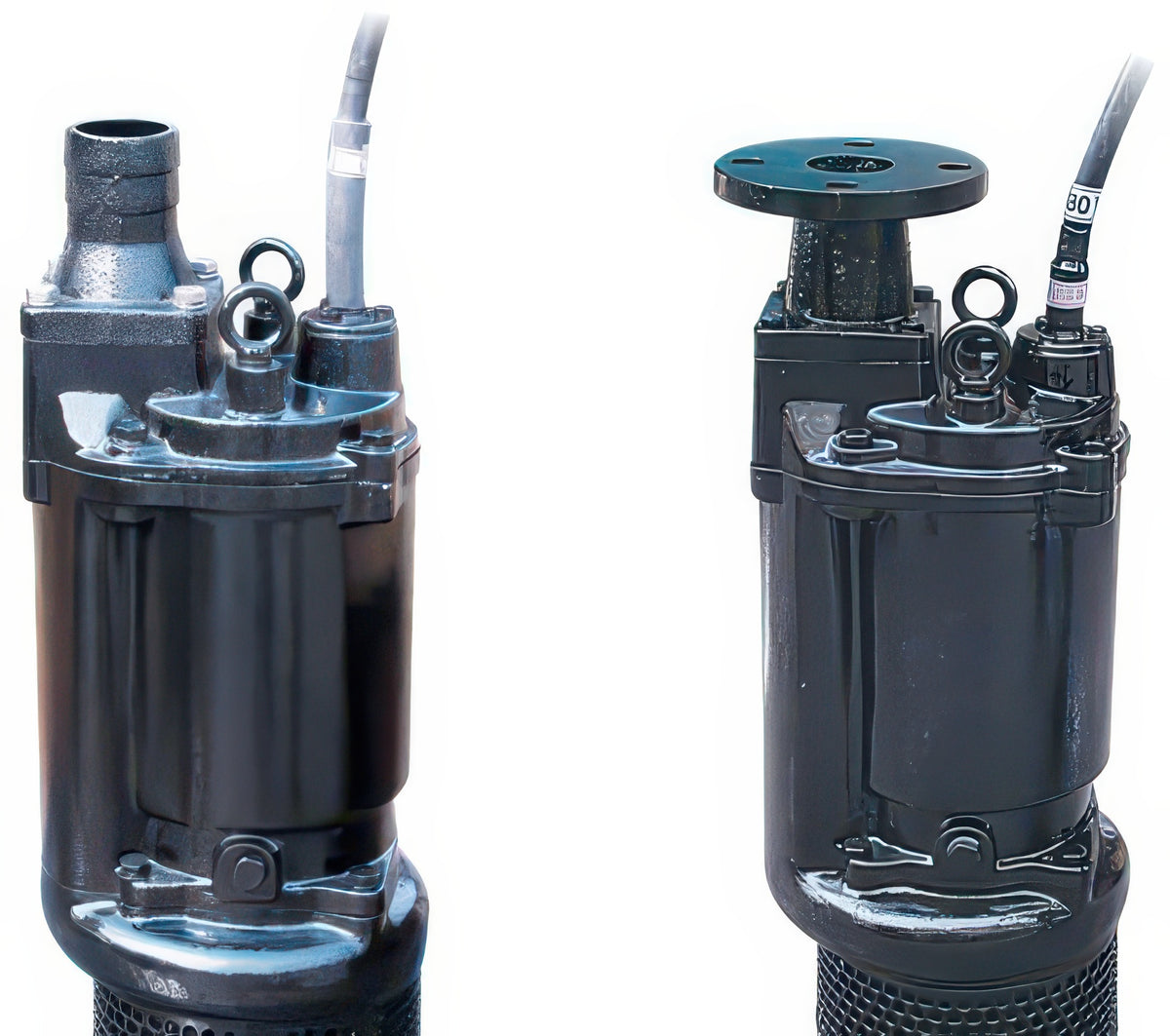

Submersible dewatering pump for dirty water on construction and civil engineering sites.

Key features

  • Built for heavy, continuous duty and resistant to abrasive sand, it is light and easy to carry and move between sites
  • Max capacity 2.9 m3/min and max head 51 m at 3450 rpm, liquid up to 50 C, hose or flange connection
  • Used for civil works, drainage, seepage water, tunnel and subway construction, building sites and collection pits

Specifications

Speed (rpm) 3450
Power 3-phase 60 Hz
Max Temperature (C) 50
Connection hose / FF flange (KS B 1511, 10K)
SJTV50-2 Discharge Bore (mm): 50 | Motor (HP): 2 | Flow (m3/min): 0.25 | Head (m): 15 | Weight (kg): 46 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV50-3 Discharge Bore (mm): 50 | Motor (HP): 3 | Flow (m3/min): 0.30 | Head (m): 20 | Weight (kg): 51 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-2 Discharge Bore (mm): 80 | Motor (HP): 2 | Flow (m3/min): 0.50 | Head (m): 8 | Weight (kg): 46 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-3 Discharge Bore (mm): 80 | Motor (HP): 3 | Flow (m3/min): 0.60 | Head (m): 10 | Weight (kg): 51 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-5 Discharge Bore (mm): 80 | Motor (HP): 5 | Flow (m3/min): 0.50 | Head (m): 20 | Weight (kg): 85 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-7.5 Discharge Bore (mm): 80 | Motor (HP): 7.5 | Flow (m3/min): 0.60 | Head (m): 25 | Weight (kg): 92 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-5 Discharge Bore (mm): 100 | Motor (HP): 5 | Flow (m3/min): 1.00 | Head (m): 10 | Weight (kg): 85 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-7.5 Discharge Bore (mm): 100 | Motor (HP): 7.5 | Flow (m3/min): 1.00 | Head (m): 15 | Weight (kg): 92 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-10 Discharge Bore (mm): 100 | Motor (HP): 10 | Flow (m3/min): 0.80 | Head (m): 30 | Weight (kg): 145 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-15 Discharge Bore (mm): 100 | Motor (HP): 15 | Flow (m3/min): 1.00 | Head (m): 35 | Weight (kg): 155 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-20 Discharge Bore (mm): 100 | Motor (HP): 20 | Flow (m3/min): 1.20 | Head (m): 40 | Weight (kg): 165 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV150-10 Discharge Bore (mm): 150 | Motor (HP): 10 | Flow (m3/min): 1.60 | Head (m): 15 | Weight (kg): 145 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV150-15 Discharge Bore (mm): 150 | Motor (HP): 15 | Flow (m3/min): 1.70 | Head (m): 20 | Weight (kg): 155 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV150-20 Discharge Bore (mm): 150 | Motor (HP): 20 | Flow (m3/min): 2.40 | Head (m): 20 | Weight (kg): 165 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
Submersible PumpsSamjung Pump
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samjung Pump Submersible Drainage Pump for Civil Engineering Works SJTV Series

Brand Samjung Pump·Submersible Pumps

Available part numbers (14)

SJTV50-2, SJTV50-3, SJTV80-2, SJTV80-3, SJTV80-5, SJTV80-7.5, SJTV100-5, SJTV100-7.5, SJTV100-10, SJTV100-15 + 4 more — see full table ↓

How to order

Send the Samjung Pump part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SJTV50-2Discharge Bore (mm): 50 | Motor (HP): 2 | Flow (m3/min): 0.25 | Head (m): 15 | Weight (kg): 46 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV50-3Discharge Bore (mm): 50 | Motor (HP): 3 | Flow (m3/min): 0.30 | Head (m): 20 | Weight (kg): 51 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-2Discharge Bore (mm): 80 | Motor (HP): 2 | Flow (m3/min): 0.50 | Head (m): 8 | Weight (kg): 46 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-3Discharge Bore (mm): 80 | Motor (HP): 3 | Flow (m3/min): 0.60 | Head (m): 10 | Weight (kg): 51 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-5Discharge Bore (mm): 80 | Motor (HP): 5 | Flow (m3/min): 0.50 | Head (m): 20 | Weight (kg): 85 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV80-7.5Discharge Bore (mm): 80 | Motor (HP): 7.5 | Flow (m3/min): 0.60 | Head (m): 25 | Weight (kg): 92 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-5Discharge Bore (mm): 100 | Motor (HP): 5 | Flow (m3/min): 1.00 | Head (m): 10 | Weight (kg): 85 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-7.5Discharge Bore (mm): 100 | Motor (HP): 7.5 | Flow (m3/min): 1.00 | Head (m): 15 | Weight (kg): 92 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-10Discharge Bore (mm): 100 | Motor (HP): 10 | Flow (m3/min): 0.80 | Head (m): 30 | Weight (kg): 145 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-15Discharge Bore (mm): 100 | Motor (HP): 15 | Flow (m3/min): 1.00 | Head (m): 35 | Weight (kg): 155 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV100-20Discharge Bore (mm): 100 | Motor (HP): 20 | Flow (m3/min): 1.20 | Head (m): 40 | Weight (kg): 165 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV150-10Discharge Bore (mm): 150 | Motor (HP): 10 | Flow (m3/min): 1.60 | Head (m): 15 | Weight (kg): 145 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV150-15Discharge Bore (mm): 150 | Motor (HP): 15 | Flow (m3/min): 1.70 | Head (m): 20 | Weight (kg): 155 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
SJTV150-20Discharge Bore (mm): 150 | Motor (HP): 20 | Flow (m3/min): 2.40 | Head (m): 20 | Weight (kg): 165 | Speed (rpm): 3450 | Power: 3-phase 60 Hz | Max Temperature (C): 50 | Connection: hose / FF flange (KS B 1511, 10K)
