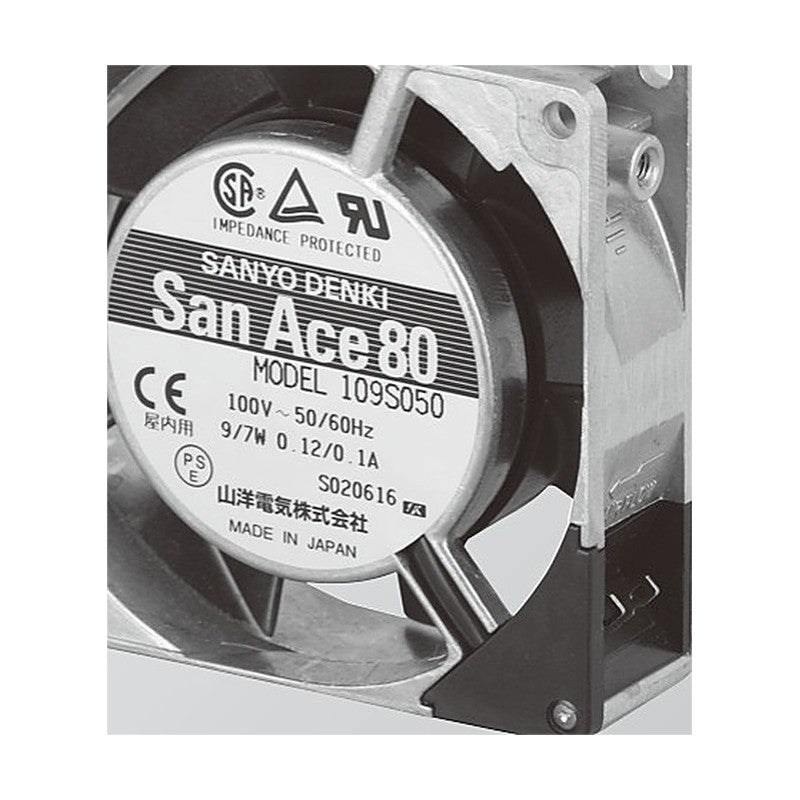

Sanyo Denki San Ace 80 AC Fan 80x80x25 mm

Sanyo Denki San Ace 80 AC Fan 80x80x25 mm

San Ace 80 25 mm thick is an 80 mm square AC cooling fan available for 100, 115, 200 and 230 V AC.

Key features

  • It has an aluminum frame and a plastic impeller (UL94V-1), runs directly on single-phase AC power at 50/60 Hz and offers an expected life of 25,000 hours (L10, 60 °C)
  • Two speed versions are offered to balance air flow against noise

Specifications

Type Standard
Frequency 50/60 Hz
Rated input 9/7 W (50/60 Hz)
Operating temperature -30 to +60 °C
Expected life 25,000 h (L10 at 60 °C)
Mass 270 g
Sanyo Denki San Ace 80 AC Fan 80x80x25 mm reference 2
109S050 Type: Standard | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.12/0.1 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S053 Type: Standard | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.1/0.08 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S051 Type: Standard | Rated voltage: 200 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.06/0.05 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S054 Type: Standard | Rated voltage: 230 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.05/0.04 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S030 Type: Standard | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.12/0.1 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S033 Type: Standard | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.1/0.08 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S031 Type: Standard | Rated voltage: 200 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.06/0.05 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S034 Type: Standard | Rated voltage: 230 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.05/0.04 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
AC Axial FansSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 AC Fan 80x80x25 mm

Brand Sanyo Denki·AC Axial Fans

Available part numbers (8)

109S050, 109S053, 109S051, 109S054, 109S030, 109S033, 109S031, 109S034

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Sanyo Denki San Ace 80 AC Fan 80x80x25 mm reference 2
0 selected
RFQ List (0)
Product codeSpec
109S050Type: Standard | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.12/0.1 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S053Type: Standard | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.1/0.08 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S051Type: Standard | Rated voltage: 200 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.06/0.05 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S054Type: Standard | Rated voltage: 230 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.05/0.04 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.63/0.76 m3/min (22.3/26.9 CFM) | Max static pressure: 27.5/38.3 Pa (0.110/0.154 inchH2O) | Noise: 30/33 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S030Type: Standard | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.12/0.1 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S033Type: Standard | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.1/0.08 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S031Type: Standard | Rated voltage: 200 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.06/0.05 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
109S034Type: Standard | Rated voltage: 230 V | Frequency: 50/60 Hz | Rated input: 9/7 W (50/60 Hz) | Rated current: 0.05/0.04 A (50/60 Hz) | Speed: 2,350/2,700 min-1 (50/60 Hz) | Max air flow: 0.55/0.63 m3/min (19.4/22.3 CFM) | Max static pressure: 21.6/28.4 Pa (0.087/0.114 inchH2O) | Noise: 28/30 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 270 g
