• Sanyo Denki San Ace 80 AC Fan 80x80x42 mm
1 1

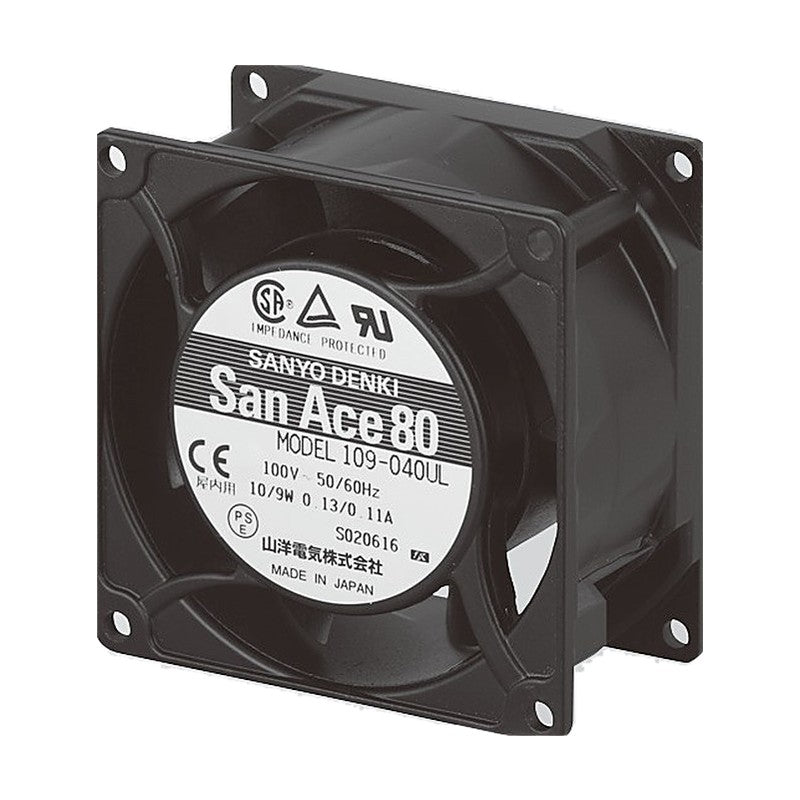

Sanyo Denki San Ace 80 AC Fan 80x80x42 mm

Sanyo Denki San Ace 80 AC Fan 80x80x42 mm

San Ace 80 42 mm thick is an 80 mm square AC cooling fan for 100, 115, 200 and 230 V AC.

Key features

  • It has an aluminum frame and a plastic impeller (UL94V-1), runs directly on single-phase AC power at 50/60 Hz and offers an expected life of 25,000 hours (L10, 60 °C)
  • Low-speed models are available for quiet operation

Specifications

Frequency 50/60 Hz
Operating temperature -30 to +60 °C
Expected life 25,000 h (L10 at 60 °C)
Mass 410 g
Sanyo Denki San Ace 80 AC Fan 80x80x42 mm reference 2
109-040UL Type: Standard | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.13/0.11 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-043UL Type: Standard | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.11/0.1 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-041UL Type: Standard | Rated voltage: 200 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.07/0.06 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-044UL Type: Standard | Rated voltage: 230 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.06/0.05 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-047UL Type: Standard, low-speed | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 4/3.5 W (50/60 Hz) | Rated current: 0.05/0.05 A (50/60 Hz) | Speed: 1,500/1,500 min-1 (50/60 Hz) | Max air flow: 0.43/0.43 m3/min (15.2/15.2 CFM) | Max static pressure: 8.8/8.8 Pa (0.035/0.035 inchH2O) | Noise: 24/24 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-033UL Type: Standard, low-speed | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 4/3.5 W (50/60 Hz) | Rated current: 0.04/0.04 A (50/60 Hz) | Speed: 1,500/1,500 min-1 (50/60 Hz) | Max air flow: 0.43/0.43 m3/min (15.2/15.2 CFM) | Max static pressure: 8.8/8.8 Pa (0.035/0.035 inchH2O) | Noise: 24/24 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
AC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 AC Fan 80x80x42 mm

Brand Sanyo Denki·AC Axial Fans

Available part numbers (6)

109-040UL, 109-043UL, 109-041UL, 109-044UL, 109-047UL, 109-033UL

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Sanyo Denki San Ace 80 AC Fan 80x80x42 mm reference 2
0 selected
RFQ List (0)
Product codeSpec
109-040ULType: Standard | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.13/0.11 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-043ULType: Standard | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.11/0.1 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-041ULType: Standard | Rated voltage: 200 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.07/0.06 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-044ULType: Standard | Rated voltage: 230 V | Frequency: 50/60 Hz | Rated input: 10/9 W (50/60 Hz) | Rated current: 0.06/0.05 A (50/60 Hz) | Speed: 2,650/3,100 min-1 (50/60 Hz) | Max air flow: 0.85/1.0 m3/min (30.0/35.3 CFM) | Max static pressure: 24.5/35.3 Pa (0.098/0.142 inchH2O) | Noise: 40/44 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-047ULType: Standard, low-speed | Rated voltage: 100 V | Frequency: 50/60 Hz | Rated input: 4/3.5 W (50/60 Hz) | Rated current: 0.05/0.05 A (50/60 Hz) | Speed: 1,500/1,500 min-1 (50/60 Hz) | Max air flow: 0.43/0.43 m3/min (15.2/15.2 CFM) | Max static pressure: 8.8/8.8 Pa (0.035/0.035 inchH2O) | Noise: 24/24 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
109-033ULType: Standard, low-speed | Rated voltage: 115 V | Frequency: 50/60 Hz | Rated input: 4/3.5 W (50/60 Hz) | Rated current: 0.04/0.04 A (50/60 Hz) | Speed: 1,500/1,500 min-1 (50/60 Hz) | Max air flow: 0.43/0.43 m3/min (15.2/15.2 CFM) | Max static pressure: 8.8/8.8 Pa (0.035/0.035 inchH2O) | Noise: 24/24 dB(A) | Operating temperature: -30 to +60 °C | Expected life: 25,000 h (L10 at 60 °C) | Mass: 410 g
