Sanyo Denki San Ace 120L Long Life DC Fan 120x120x38 mm (LB Type)

Sanyo Denki San Ace 120L Long Life DC Fan 120x120x38 mm (LB Type)

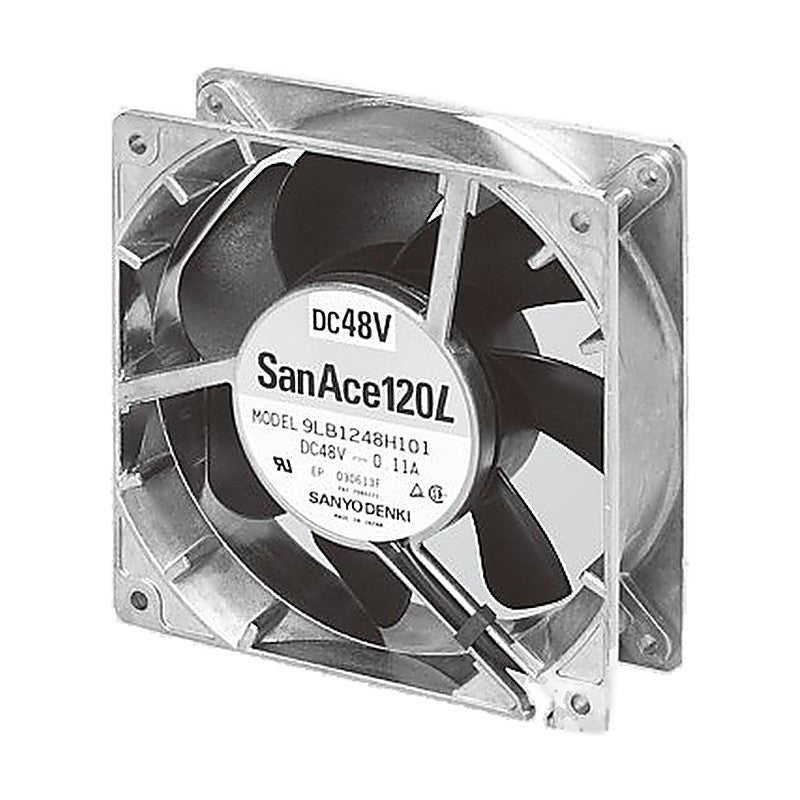

The San Ace 120L LB Type is a long life DC axial cooling fan in a 120x120x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,000 to 2,600 min-1 with maximum air flow up to 2.9 m3/min and maximum static pressure up to 67.62 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 120x120x38 mm
Operating temperature -10 to +70 °C
Expected life 200,000 h
Mass 370 g
9LB1212H101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.39 A | Rated input: 4.68 W | Speed: 2,600 min-1 | Max air flow: 2.9 m3/min (102.4 CFM) | Max static pressure: 67.62 Pa (0.272 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1212M101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.22 A | Rated input: 2.64 W | Speed: 2,000 min-1 | Max air flow: 2.2 m3/min (77.7 CFM) | Max static pressure: 42.14 Pa (0.169 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1224H101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.19 A | Rated input: 4.56 W | Speed: 2,600 min-1 | Max air flow: 2.9 m3/min (102.4 CFM) | Max static pressure: 67.62 Pa (0.272 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1224M101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.11 A | Rated input: 2.64 W | Speed: 2,000 min-1 | Max air flow: 2.2 m3/min (77.7 CFM) | Max static pressure: 42.14 Pa (0.169 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1248H101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.9 m3/min (102.4 CFM) | Max static pressure: 67.62 Pa (0.272 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1248M101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 2,000 min-1 | Max air flow: 2.2 m3/min (77.7 CFM) | Max static pressure: 42.14 Pa (0.169 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120L Long Life DC Fan 120x120x38 mm (LB Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

9LB1212H101, 9LB1212M101, 9LB1224H101, 9LB1224M101, 9LB1248H101, 9LB1248M101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9LB1212H101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.39 A | Rated input: 4.68 W | Speed: 2,600 min-1 | Max air flow: 2.9 m3/min (102.4 CFM) | Max static pressure: 67.62 Pa (0.272 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1212M101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.22 A | Rated input: 2.64 W | Speed: 2,000 min-1 | Max air flow: 2.2 m3/min (77.7 CFM) | Max static pressure: 42.14 Pa (0.169 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1224H101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.19 A | Rated input: 4.56 W | Speed: 2,600 min-1 | Max air flow: 2.9 m3/min (102.4 CFM) | Max static pressure: 67.62 Pa (0.272 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1224M101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.11 A | Rated input: 2.64 W | Speed: 2,000 min-1 | Max air flow: 2.2 m3/min (77.7 CFM) | Max static pressure: 42.14 Pa (0.169 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1248H101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.9 m3/min (102.4 CFM) | Max static pressure: 67.62 Pa (0.272 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
9LB1248M101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 2,000 min-1 | Max air flow: 2.2 m3/min (77.7 CFM) | Max static pressure: 42.14 Pa (0.169 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 200,000 h | Mass: 370 g
