Sanyo Denki San Ace 133W Splash Proof DC Centrifugal Fan dia. 133x91 mm

Sanyo Denki San Ace 133W Splash Proof DC Centrifugal Fan dia. 133x91 mm

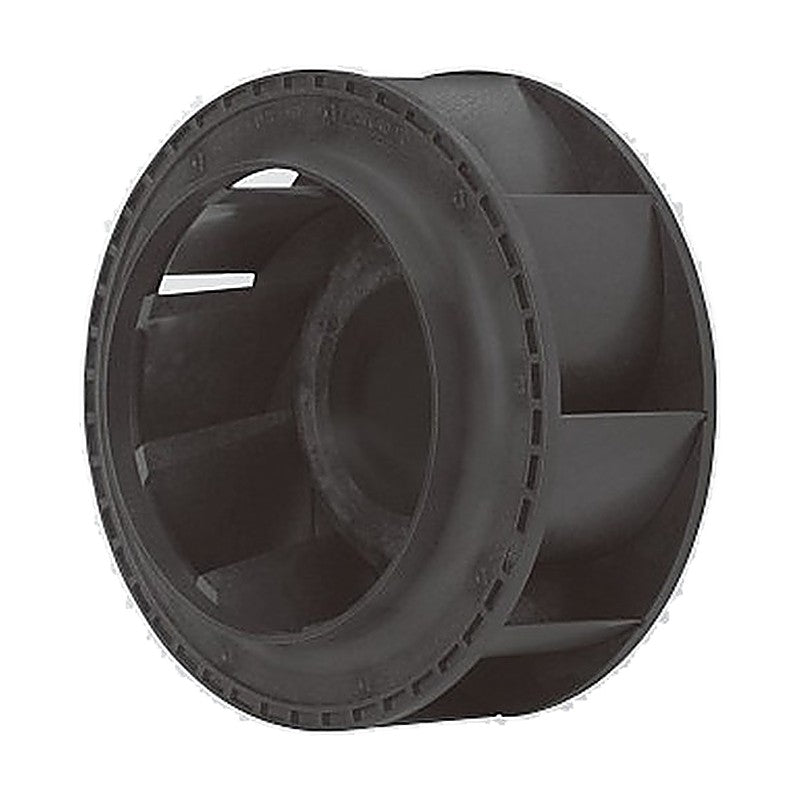

The San Ace 133W is a splash proof DC centrifugal fan in a dia. 133x91 mm frame.

Key features

  • Models are offered for 48 V DC rated voltage
  • Rated speeds range from 4,150 to 4,150 min-1 with maximum air flow up to 6.39 m3/min and maximum static pressure up to 395 Pa
  • Rated IP54: dust resistant device with protection against water spray
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Catalog performance values apply with the optional inlet nozzle (model 109-1069) mounted
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 48 V
Operating voltage range 36 to 60 V
PWM duty cycle 100 %
Rated current 0.55 A
Rated input 26.4 W
Speed 4,150 min-1
Max air flow 6.39 m3/min (225 CFM)
Max static pressure 395 Pa (1.59 inchH2O)
Noise 61 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h at 60°C (70,000 h at 40°C)
Mass 720 g
9W1TJ48P0H61 Rated voltage: 48 V | Operating voltage range: 36 to 60 V | PWM duty cycle: 100 % | Rated current: 0.55 A | Rated input: 26.4 W | Speed: 4,150 min-1 | Max air flow: 6.39 m3/min (225 CFM) | Max static pressure: 395 Pa (1.59 inchH2O) | Noise: 61 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 720 g
DC Centrifugal FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 133W Splash Proof DC Centrifugal Fan dia. 133x91 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (1)

9W1TJ48P0H61

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9W1TJ48P0H61Rated voltage: 48 V | Operating voltage range: 36 to 60 V | PWM duty cycle: 100 % | Rated current: 0.55 A | Rated input: 26.4 W | Speed: 4,150 min-1 | Max air flow: 6.39 m3/min (225 CFM) | Max static pressure: 395 Pa (1.59 inchH2O) | Noise: 61 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 720 g
