Sanyo Denki San Ace 140L Long Life DC Fan 140x140x51 mm (LB Type)

Sanyo Denki San Ace 140L Long Life DC Fan 140x140x51 mm (LB Type)

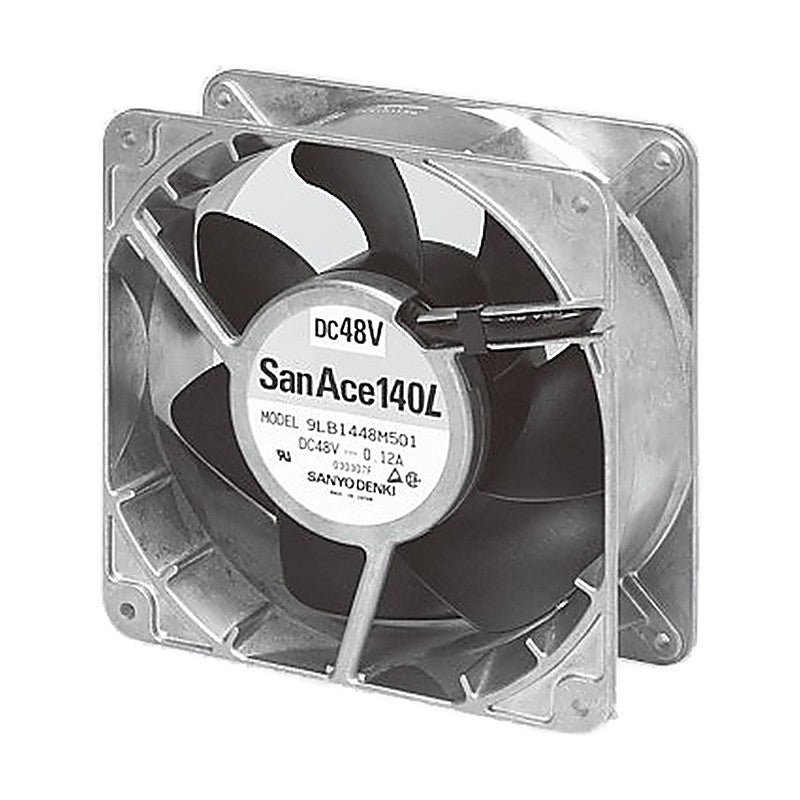

The San Ace 140L LB Type is a long life DC axial cooling fan in a 140x140x51 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,050 to 4,200 min-1 with maximum air flow up to 8.1 m3/min and maximum static pressure up to 240 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 140x140x51 mm
Operating temperature -10 to +70 °C
Mass 610 g
9LB1412S501 Size: 140x140x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.7 A | Rated input: 32.4 W | Speed: 4,200 min-1 | Max air flow: 8.1 m3/min (286 CFM) | Max static pressure: 240 Pa (0.964 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 610 g
9LB1412H501 Size: 140x140x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.25 A | Rated input: 15.0 W | Speed: 3,100 min-1 | Max air flow: 5.9 m3/min (208 CFM) | Max static pressure: 130 Pa (0.522 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1412M501 Size: 140x140x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.46 A | Rated input: 5.5 W | Speed: 2,050 min-1 | Max air flow: 3.9 m3/min (138 CFM) | Max static pressure: 63 Pa (0.253 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1424S501 Size: 140x140x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.38 A | Rated input: 33.1 W | Speed: 4,200 min-1 | Max air flow: 8.1 m3/min (286 CFM) | Max static pressure: 240 Pa (0.964 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 610 g
9LB1424H501 Size: 140x140x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.60 A | Rated input: 14.4 W | Speed: 3,100 min-1 | Max air flow: 5.9 m3/min (208 CFM) | Max static pressure: 130 Pa (0.522 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1424M501 Size: 140x140x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.22 A | Rated input: 5.3 W | Speed: 2,050 min-1 | Max air flow: 3.9 m3/min (138 CFM) | Max static pressure: 63 Pa (0.253 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1448S501 Size: 140x140x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.71 A | Rated input: 34.1 W | Speed: 4,200 min-1 | Max air flow: 8.1 m3/min (286 CFM) | Max static pressure: 240 Pa (0.964 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 610 g
9LB1448H501 Size: 140x140x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.27 A | Rated input: 13.0 W | Speed: 3,100 min-1 | Max air flow: 5.9 m3/min (208 CFM) | Max static pressure: 130 Pa (0.522 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1448M501 Size: 140x140x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.12 A | Rated input: 5.8 W | Speed: 2,050 min-1 | Max air flow: 3.9 m3/min (138 CFM) | Max static pressure: 63 Pa (0.253 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
DC Axial FansSanyo Denki
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 140L Long Life DC Fan 140x140x51 mm (LB Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (9)

9LB1412S501, 9LB1412H501, 9LB1412M501, 9LB1424S501, 9LB1424H501, 9LB1424M501, 9LB1448S501, 9LB1448H501, 9LB1448M501

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9LB1412S501Size: 140x140x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.7 A | Rated input: 32.4 W | Speed: 4,200 min-1 | Max air flow: 8.1 m3/min (286 CFM) | Max static pressure: 240 Pa (0.964 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 610 g
9LB1412H501Size: 140x140x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.25 A | Rated input: 15.0 W | Speed: 3,100 min-1 | Max air flow: 5.9 m3/min (208 CFM) | Max static pressure: 130 Pa (0.522 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1412M501Size: 140x140x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.46 A | Rated input: 5.5 W | Speed: 2,050 min-1 | Max air flow: 3.9 m3/min (138 CFM) | Max static pressure: 63 Pa (0.253 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1424S501Size: 140x140x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.38 A | Rated input: 33.1 W | Speed: 4,200 min-1 | Max air flow: 8.1 m3/min (286 CFM) | Max static pressure: 240 Pa (0.964 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 610 g
9LB1424H501Size: 140x140x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.60 A | Rated input: 14.4 W | Speed: 3,100 min-1 | Max air flow: 5.9 m3/min (208 CFM) | Max static pressure: 130 Pa (0.522 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1424M501Size: 140x140x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.22 A | Rated input: 5.3 W | Speed: 2,050 min-1 | Max air flow: 3.9 m3/min (138 CFM) | Max static pressure: 63 Pa (0.253 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1448S501Size: 140x140x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.71 A | Rated input: 34.1 W | Speed: 4,200 min-1 | Max air flow: 8.1 m3/min (286 CFM) | Max static pressure: 240 Pa (0.964 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 610 g
9LB1448H501Size: 140x140x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.27 A | Rated input: 13.0 W | Speed: 3,100 min-1 | Max air flow: 5.9 m3/min (208 CFM) | Max static pressure: 130 Pa (0.522 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
9LB1448M501Size: 140x140x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.12 A | Rated input: 5.8 W | Speed: 2,050 min-1 | Max air flow: 3.9 m3/min (138 CFM) | Max static pressure: 63 Pa (0.253 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 610 g
