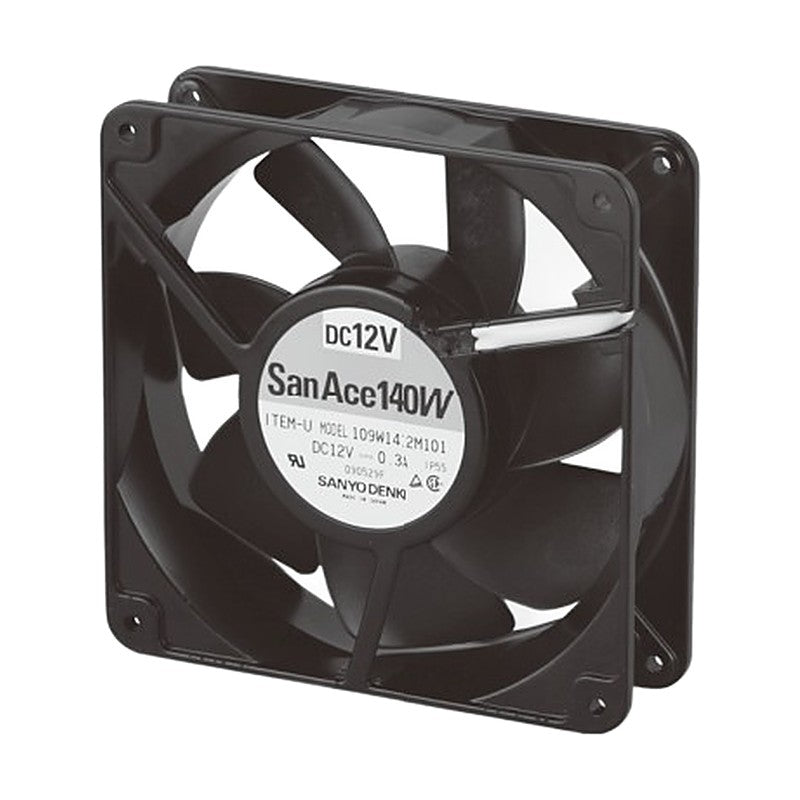

Sanyo Denki San Ace 140W Splash Proof DC Fan 140x140x38 mm

Sanyo Denki San Ace 140W Splash Proof DC Fan 140x140x38 mm

The San Ace 140W is a splash proof DC axial cooling fan in a 140x140x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,900 to 2,600 min-1 with maximum air flow up to 4.5 m3/min and maximum static pressure up to 98 Pa
  • The frame is made of aluminum
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 140x140x38 mm
Operating temperature -10 to +60 °C
Expected life 100,000 h
Mass 650 g
109W1412H101-U Size: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.73 A | Rated input: 8.76 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1412M101-U Size: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.3 A | Rated input: 3.6 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1424H101-U Size: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.37 A | Rated input: 8.88 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1424M101-U Size: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1448H101-U Size: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.2 A | Rated input: 9.6 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1448M101-U Size: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 140W Splash Proof DC Fan 140x140x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

109W1412H101-U, 109W1412M101-U, 109W1424H101-U, 109W1424M101-U, 109W1448H101-U, 109W1448M101-U

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109W1412H101-USize: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.73 A | Rated input: 8.76 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1412M101-USize: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.3 A | Rated input: 3.6 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1424H101-USize: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.37 A | Rated input: 8.88 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1424M101-USize: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1448H101-USize: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.2 A | Rated input: 9.6 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
109W1448M101-USize: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 100,000 h | Mass: 650 g
