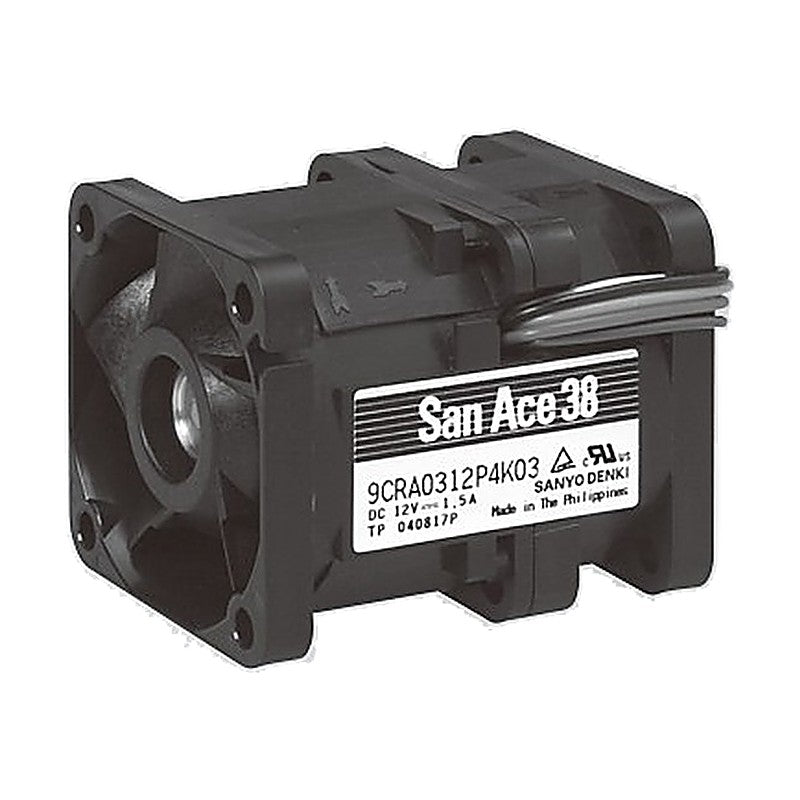

Sanyo Denki San Ace 38 Counter Rotating DC Fan 38x38x48 mm (CRA Type)

Sanyo Denki San Ace 38 Counter Rotating DC Fan 38x38x48 mm (CRA Type)

The San Ace 38 CRA Type is a counter rotating DC cooling fan with separate inlet and outlet impellers in a 38x38x48 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 4,800 to 17,600 min-1 with maximum air flow up to 0.77 m3/min and maximum static pressure up to 700 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 12 V
Operating voltage range 10.8 to 13.2 V
PWM duty cycle 100 / 0 %
Mass 80 g
9CRA0312P4K03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.5 / 0.2 A | Rated input: 18.0 / 2.4 W | Speed inlet: 17,600 / 5,280 min-1 | Speed outlet: 14,520 / 4,200 min-1 | Max air flow: 0.77 / 0.22 m3/min (27.2 / 7.8 CFM) | Max static pressure: 700.0 / 54.9 Pa (2.81 / 0.22 inchH2O) | Noise: 64 / 33 dB(A) | Expected life: 30,000 h | Mass: 80 g
9CRA0312P4J03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.1 / 0.18 A | Rated input: 13.2 / 2.2 W | Speed inlet: 16,000 / 4,800 min-1 | Speed outlet: 13,200 / 3,960 min-1 | Max air flow: 0.7 / 0.21 m3/min (24.7 / 7.4 CFM) | Max static pressure: 560.0 / 50.4 Pa (2.25 / 0.20 inchH2O) | Noise: 62 / 31 dB(A) | Expected life: 40,000 h | Mass: 80 g
DC Counter Rotating FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 38 Counter Rotating DC Fan 38x38x48 mm (CRA Type)

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (2)

9CRA0312P4K03, 9CRA0312P4J03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRA0312P4K03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.5 / 0.2 A | Rated input: 18.0 / 2.4 W | Speed inlet: 17,600 / 5,280 min-1 | Speed outlet: 14,520 / 4,200 min-1 | Max air flow: 0.77 / 0.22 m3/min (27.2 / 7.8 CFM) | Max static pressure: 700.0 / 54.9 Pa (2.81 / 0.22 inchH2O) | Noise: 64 / 33 dB(A) | Expected life: 30,000 h | Mass: 80 g
9CRA0312P4J03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.1 / 0.18 A | Rated input: 13.2 / 2.2 W | Speed inlet: 16,000 / 4,800 min-1 | Speed outlet: 13,200 / 3,960 min-1 | Max air flow: 0.7 / 0.21 m3/min (24.7 / 7.4 CFM) | Max static pressure: 560.0 / 50.4 Pa (2.25 / 0.20 inchH2O) | Noise: 62 / 31 dB(A) | Expected life: 40,000 h | Mass: 80 g
