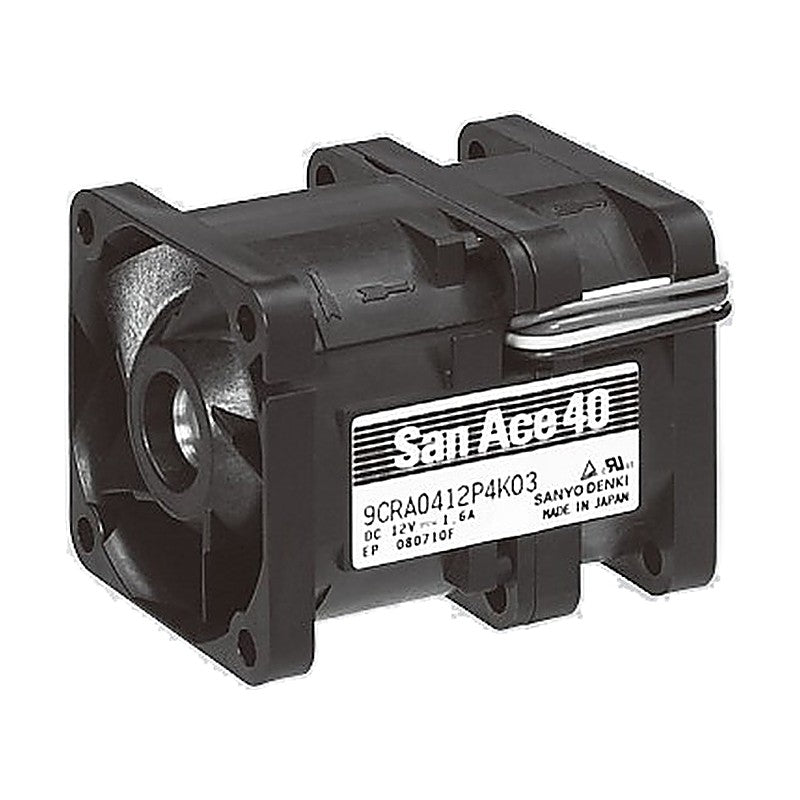

Sanyo Denki San Ace 40 Counter Rotating DC Fan 40x40x48 mm (CRA Type)

Sanyo Denki San Ace 40 Counter Rotating DC Fan 40x40x48 mm (CRA Type)

The San Ace 40 CRA Type is a counter rotating DC cooling fan with separate inlet and outlet impellers in a 40x40x48 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 4,410 to 17,500 min-1 with maximum air flow up to 0.92 m3/min and maximum static pressure up to 650 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 12 V
Operating voltage range 10.8 to 13.2 V
PWM duty cycle 100 / 0 %
Mass 80 g
9CRA0412P4K03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.60 / 0.19 A | Rated input: 19.20 / 2.28 W | Speed inlet: 17,500 / 5,250 min-1 | Speed outlet: 11,700 / 3,510 min-1 | Max air flow: 0.920 / 0.276 m3/min (32.50 / 9.75 CFM) | Max static pressure: 650.0 / 58.5 Pa (2.610 / 0.235 inchH2O) | Noise: 64 / 33 dB(A) | Expected life: 30,000 h | Mass: 80 g
9CRA0412P4J03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.20 / 0.15 A | Rated input: 14.40 / 1.80 W | Speed inlet: 16,200 / 4,500 min-1 | Speed outlet: 10,800 / 3,000 min-1 | Max air flow: 0.850 / 0.236 m3/min (30.00 / 8.33 CFM) | Max static pressure: 560.0 / 43.2 Pa (2.250 / 0.173 inchH2O) | Noise: 62 / 28 dB(A) | Expected life: 40,000 h | Mass: 80 g
9CRA0412P4G03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.00 / 0.15 A | Rated input: 12.00 / 1.80 W | Speed inlet: 14,700 / 4,410 min-1 | Speed outlet: 9,800 / 2,940 min-1 | Max air flow: 0.770 / 0.231 m3/min (27.20 / 8.16 CFM) | Max static pressure: 460.0 / 41.4 Pa (1.850 / 0.166 inchH2O) | Noise: 59 / 28 dB(A) | Expected life: 40,000 h | Mass: 80 g
DC Counter Rotating FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 Counter Rotating DC Fan 40x40x48 mm (CRA Type)

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (3)

9CRA0412P4K03, 9CRA0412P4J03, 9CRA0412P4G03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRA0412P4K03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.60 / 0.19 A | Rated input: 19.20 / 2.28 W | Speed inlet: 17,500 / 5,250 min-1 | Speed outlet: 11,700 / 3,510 min-1 | Max air flow: 0.920 / 0.276 m3/min (32.50 / 9.75 CFM) | Max static pressure: 650.0 / 58.5 Pa (2.610 / 0.235 inchH2O) | Noise: 64 / 33 dB(A) | Expected life: 30,000 h | Mass: 80 g
9CRA0412P4J03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.20 / 0.15 A | Rated input: 14.40 / 1.80 W | Speed inlet: 16,200 / 4,500 min-1 | Speed outlet: 10,800 / 3,000 min-1 | Max air flow: 0.850 / 0.236 m3/min (30.00 / 8.33 CFM) | Max static pressure: 560.0 / 43.2 Pa (2.250 / 0.173 inchH2O) | Noise: 62 / 28 dB(A) | Expected life: 40,000 h | Mass: 80 g
9CRA0412P4G03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.00 / 0.15 A | Rated input: 12.00 / 1.80 W | Speed inlet: 14,700 / 4,410 min-1 | Speed outlet: 9,800 / 2,940 min-1 | Max air flow: 0.770 / 0.231 m3/min (27.20 / 8.16 CFM) | Max static pressure: 460.0 / 41.4 Pa (1.850 / 0.166 inchH2O) | Noise: 59 / 28 dB(A) | Expected life: 40,000 h | Mass: 80 g
