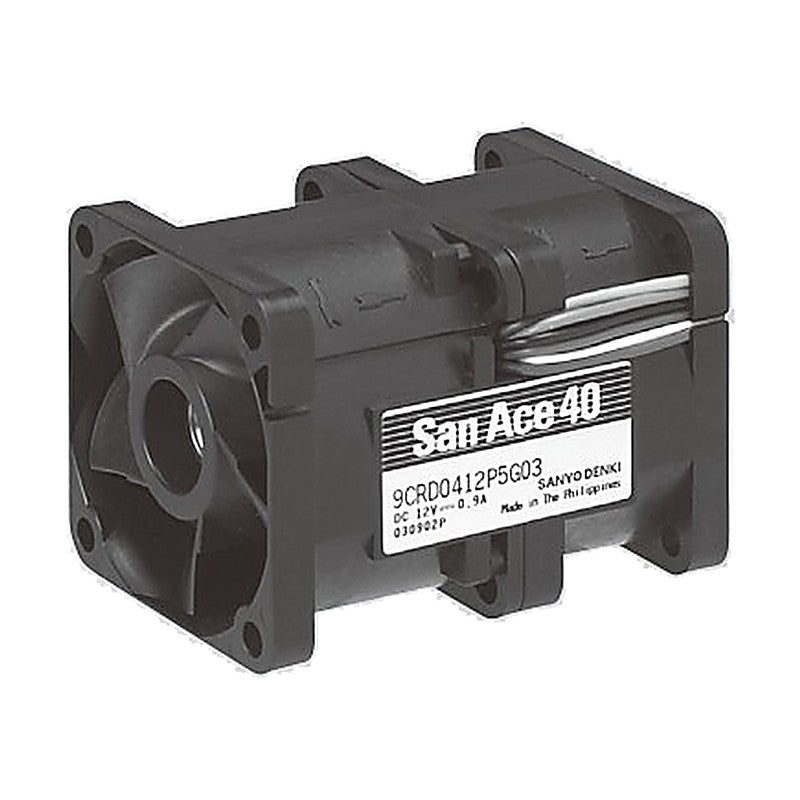

Sanyo Denki San Ace 40 Counter Rotating DC Fan 40x40x56 mm (CRD Type)

Sanyo Denki San Ace 40 Counter Rotating DC Fan 40x40x56 mm (CRD Type)

The San Ace 40 CRD Type is a counter rotating DC cooling fan with separate inlet and outlet impellers in a 40x40x56 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 2,000 to 19,000 min-1 with maximum air flow up to 0.87 m3/min and maximum static pressure up to 630 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 12 V
Operating voltage range 10.8 to 13.2 V
PWM duty cycle 100 / 0 %
Mass 90 g
9CRD0412P5J03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.15 / 0.12 A | Rated input: 13.8 / 1.44 W | Speed inlet: 19,000 / 3,700 min-1 | Speed outlet: 12,600 / 2,500 min-1 | Max air flow: 0.87 / 0.15 m3/min (30.72 / 5.30 CFM) | Max static pressure: 630 / 25 Pa (2.53 / 0.10 inchH2O) | Noise: 61 / 22 dB(A) | Expected life: 30,000 h | Mass: 90 g
9CRD0412P5G03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.90 / 0.10 A | Rated input: 10.8 / 1.2 W | Speed inlet: 16,700 / 3,350 min-1 | Speed outlet: 11,250 / 2,250 min-1 | Max air flow: 0.77 / 0.13 m3/min (27.19 / 4.59 CFM) | Max static pressure: 500 / 21 Pa (2.01 / 0.08 inchH2O) | Noise: 58 / 21 dB(A) | Expected life: 40,000 h | Mass: 90 g
9CRD0412P5H03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.60 / 0.09 A | Rated input: 7.2 / 1.08 W | Speed inlet: 15,000 / 3,000 min-1 | Speed outlet: 10,000 / 2,000 min-1 | Max air flow: 0.70 / 0.12 m3/min (24.72 / 4.24 CFM) | Max static pressure: 410 / 16 Pa (1.65 / 0.06 inchH2O) | Noise: 56 / 20 dB(A) | Expected life: 40,000 h | Mass: 90 g
9CRD0412P5M03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.52 / 0.07 A | Rated input: 6.24 / 0.84 W | Speed inlet: 14,000 / 2,000 min-1 | Speed outlet: 9,300 / 1,300 min-1 | Max air flow: 0.65 / 0.07 m3/min (22.95 / 2.47 CFM) | Max static pressure: 360 / 7 Pa (1.45 / 0.03 inchH2O) | Noise: 54 / 15 dB(A) | Expected life: 40,000 h | Mass: 90 g
DC Counter Rotating FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40 Counter Rotating DC Fan 40x40x56 mm (CRD Type)

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (4)

9CRD0412P5J03, 9CRD0412P5G03, 9CRD0412P5H03, 9CRD0412P5M03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRD0412P5J03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 1.15 / 0.12 A | Rated input: 13.8 / 1.44 W | Speed inlet: 19,000 / 3,700 min-1 | Speed outlet: 12,600 / 2,500 min-1 | Max air flow: 0.87 / 0.15 m3/min (30.72 / 5.30 CFM) | Max static pressure: 630 / 25 Pa (2.53 / 0.10 inchH2O) | Noise: 61 / 22 dB(A) | Expected life: 30,000 h | Mass: 90 g
9CRD0412P5G03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.90 / 0.10 A | Rated input: 10.8 / 1.2 W | Speed inlet: 16,700 / 3,350 min-1 | Speed outlet: 11,250 / 2,250 min-1 | Max air flow: 0.77 / 0.13 m3/min (27.19 / 4.59 CFM) | Max static pressure: 500 / 21 Pa (2.01 / 0.08 inchH2O) | Noise: 58 / 21 dB(A) | Expected life: 40,000 h | Mass: 90 g
9CRD0412P5H03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.60 / 0.09 A | Rated input: 7.2 / 1.08 W | Speed inlet: 15,000 / 3,000 min-1 | Speed outlet: 10,000 / 2,000 min-1 | Max air flow: 0.70 / 0.12 m3/min (24.72 / 4.24 CFM) | Max static pressure: 410 / 16 Pa (1.65 / 0.06 inchH2O) | Noise: 56 / 20 dB(A) | Expected life: 40,000 h | Mass: 90 g
9CRD0412P5M03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.52 / 0.07 A | Rated input: 6.24 / 0.84 W | Speed inlet: 14,000 / 2,000 min-1 | Speed outlet: 9,300 / 1,300 min-1 | Max air flow: 0.65 / 0.07 m3/min (22.95 / 2.47 CFM) | Max static pressure: 360 / 7 Pa (1.45 / 0.03 inchH2O) | Noise: 54 / 15 dB(A) | Expected life: 40,000 h | Mass: 90 g
