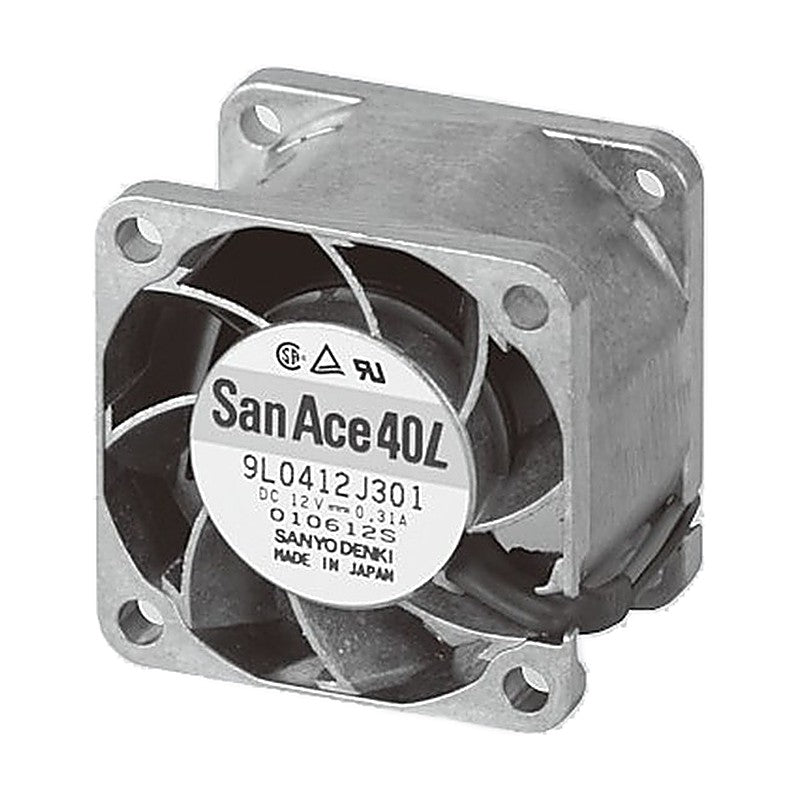

Sanyo Denki San Ace 40L Long Life DC Fan 40x40x28 mm

Sanyo Denki San Ace 40L Long Life DC Fan 40x40x28 mm

The San Ace 40L is a long life DC axial cooling fan in a 40x40x28 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 4,000 to 11,700 min-1 with maximum air flow up to 0.52 m3/min and maximum static pressure up to 206 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 40x40x28 mm
Rated voltage 12 V
Operating voltage range 10.2 to 13.8 V
Operating temperature -10 to +70 °C
Expected life 100,000 h
Mass 55 g
9L0412J301 Size: 40x40x28 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.31 A | Rated input: 3.72 W | Speed: 11,700 min-1 | Max air flow: 0.52 m3/min (18.4 CFM) | Max static pressure: 206 Pa (0.827 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 55 g
9L0412H301 Size: 40x40x28 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.15 A | Rated input: 1.80 W | Speed: 8,400 min-1 | Max air flow: 0.37 m3/min (13.1 CFM) | Max static pressure: 106 Pa (0.426 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 55 g
9L0412M301 Size: 40x40x28 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.045 A | Rated input: 0.54 W | Speed: 4,000 min-1 | Max air flow: 0.16 m3/min (5.65 CFM) | Max static pressure: 24 Pa (0.096 inchH2O) | Noise: 19 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 55 g
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 40L Long Life DC Fan 40x40x28 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9L0412J301, 9L0412H301, 9L0412M301

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9L0412J301Size: 40x40x28 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.31 A | Rated input: 3.72 W | Speed: 11,700 min-1 | Max air flow: 0.52 m3/min (18.4 CFM) | Max static pressure: 206 Pa (0.827 inchH2O) | Noise: 48 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 55 g
9L0412H301Size: 40x40x28 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.15 A | Rated input: 1.80 W | Speed: 8,400 min-1 | Max air flow: 0.37 m3/min (13.1 CFM) | Max static pressure: 106 Pa (0.426 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 55 g
9L0412M301Size: 40x40x28 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.045 A | Rated input: 0.54 W | Speed: 4,000 min-1 | Max air flow: 0.16 m3/min (5.65 CFM) | Max static pressure: 24 Pa (0.096 inchH2O) | Noise: 19 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 55 g
