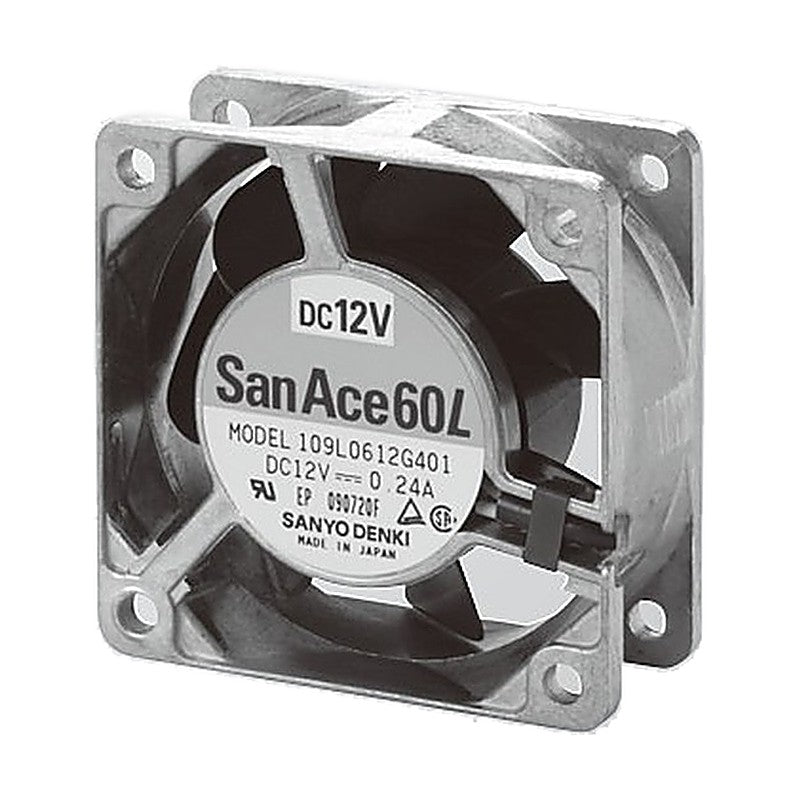

Sanyo Denki San Ace 60L Long Life DC Fan 60x60x25 mm

Sanyo Denki San Ace 60L Long Life DC Fan 60x60x25 mm

The San Ace 60L is a long life DC axial cooling fan in a 60x60x25 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,600 to 5,600 min-1 with maximum air flow up to 0.78 m3/min and maximum static pressure up to 87.3 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 60x60x25 mm
Operating temperature -10 to +70 °C
Expected life 100,000 h
Mass 100 g
109L0612G401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.24 A | Rated input: 2.88 W | Speed: 5,600 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 87.3 Pa (0.351 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612S401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.17 A | Rated input: 2.04 W | Speed: 4,600 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 57.3 Pa (0.230 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612H401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 3,800 min-1 | Max air flow: 0.53 m3/min (18.7 CFM) | Max static pressure: 40.2 Pa (0.161 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612F401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.09 A | Rated input: 1.08 W | Speed: 3,200 min-1 | Max air flow: 0.44 m3/min (15.5 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612M401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.06 A | Rated input: 0.72 W | Speed: 2,600 min-1 | Max air flow: 0.36 m3/min (12.7 CFM) | Max static pressure: 19.6 Pa (0.079 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624S401 Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 4,600 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 57.3 Pa (0.230 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624H401 Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.06 A | Rated input: 1.44 W | Speed: 3,800 min-1 | Max air flow: 0.53 m3/min (18.7 CFM) | Max static pressure: 40.2 Pa (0.161 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624F401 Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 3,200 min-1 | Max air flow: 0.44 m3/min (15.5 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624M401 Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 2,600 min-1 | Max air flow: 0.36 m3/min (12.7 CFM) | Max static pressure: 19.6 Pa (0.079 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0648G401 Size: 60x60x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.07 A | Rated input: 3.36 W | Speed: 5,600 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 87.3 Pa (0.351 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0648H401 Size: 60x60x25 mm | Rated voltage: 48 V | Operating voltage range: 40 to 53 V | Rated current: 0.04 A | Rated input: 1.92 W | Speed: 3,800 min-1 | Max air flow: 0.53 m3/min (18.7 CFM) | Max static pressure: 40.2 Pa (0.161 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
DC Axial FansSanyo Denki
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60L Long Life DC Fan 60x60x25 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (11)

109L0612G401, 109L0612S401, 109L0612H401, 109L0612F401, 109L0612M401, 109L0624S401, 109L0624H401, 109L0624F401, 109L0624M401, 109L0648G401 + 1 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109L0612G401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.24 A | Rated input: 2.88 W | Speed: 5,600 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 87.3 Pa (0.351 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612S401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.17 A | Rated input: 2.04 W | Speed: 4,600 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 57.3 Pa (0.230 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612H401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 3,800 min-1 | Max air flow: 0.53 m3/min (18.7 CFM) | Max static pressure: 40.2 Pa (0.161 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612F401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.09 A | Rated input: 1.08 W | Speed: 3,200 min-1 | Max air flow: 0.44 m3/min (15.5 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0612M401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.06 A | Rated input: 0.72 W | Speed: 2,600 min-1 | Max air flow: 0.36 m3/min (12.7 CFM) | Max static pressure: 19.6 Pa (0.079 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624S401Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 4,600 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 57.3 Pa (0.230 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624H401Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.06 A | Rated input: 1.44 W | Speed: 3,800 min-1 | Max air flow: 0.53 m3/min (18.7 CFM) | Max static pressure: 40.2 Pa (0.161 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624F401Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 3,200 min-1 | Max air flow: 0.44 m3/min (15.5 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0624M401Size: 60x60x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 2,600 min-1 | Max air flow: 0.36 m3/min (12.7 CFM) | Max static pressure: 19.6 Pa (0.079 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0648G401Size: 60x60x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.07 A | Rated input: 3.36 W | Speed: 5,600 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 87.3 Pa (0.351 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
109L0648H401Size: 60x60x25 mm | Rated voltage: 48 V | Operating voltage range: 40 to 53 V | Rated current: 0.04 A | Rated input: 1.92 W | Speed: 3,800 min-1 | Max air flow: 0.53 m3/min (18.7 CFM) | Max static pressure: 40.2 Pa (0.161 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 100 g
