• Sanyo Denki San Ace 60WF Oil Proof DC Fan 60x60x15 mm
1 1

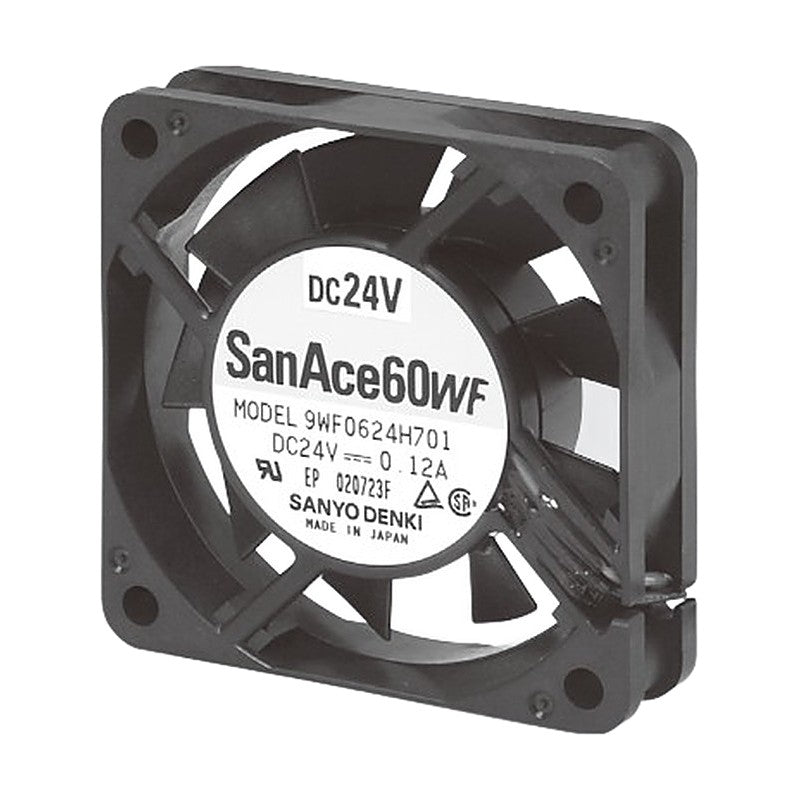

Sanyo Denki San Ace 60WF Oil Proof DC Fan 60x60x15 mm

Sanyo Denki San Ace 60WF Oil Proof DC Fan 60x60x15 mm

The San Ace 60WF is an oil proof DC axial cooling fan in a 60x60x15 mm frame.

Key features

  • Models are offered for 24 V DC rated voltage
  • Rated speeds range from 6,800 to 6,800 min-1 with maximum air flow up to 0.52 m3/min and maximum static pressure up to 95 Pa
  • The frame is made of plastic
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 60x60x15 mm
Rated voltage 24 V
Operating voltage range 20.4 to 27.6 V
Rated current 0.12 A
Rated input 2.88 W
Speed 6,800 min-1
Max air flow 0.52 m3/min (18.36 CFM)
Max static pressure 95 Pa (0.38 inchH2O)
Noise 44 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 62 g
9WF0624H701 Size: 60x60x15 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 6,800 min-1 | Max air flow: 0.52 m3/min (18.36 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 62 g
DC Axial FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60WF Oil Proof DC Fan 60x60x15 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (1)

9WF0624H701

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WF0624H701Size: 60x60x15 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 6,800 min-1 | Max air flow: 0.52 m3/min (18.36 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 44 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 62 g
