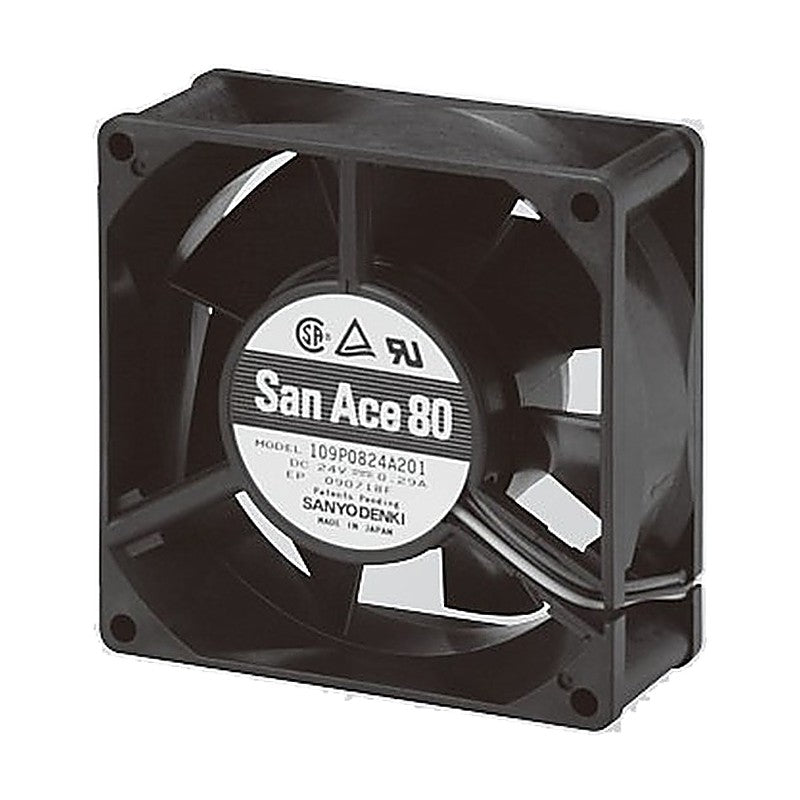

Sanyo Denki San Ace 80 DC Axial Fan 80x80x32 mm

Sanyo Denki San Ace 80 DC Axial Fan 80x80x32 mm

The San Ace 80 is a DC axial cooling fan in a 80x80x32 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,000 to 4,600 min-1 with maximum air flow up to 1.52 m3/min and maximum static pressure up to 91.1 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x32 mm
Mass 150 g
109P0812A201 Size: 80x80x32 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.2 V | Rated current: 0.56 A | Rated input: 6.72 W | Speed: 4,600 min-1 | Max air flow: 1.52 m3/min (53.7 CFM) | Max static pressure: 91.1 Pa (0.366 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +55 °C | Expected life: 40,000 h at 55°C | Mass: 150 g
109P0812H201 Size: 80x80x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.16 A | Rated input: 1.92 W | Speed: 3,150 min-1 | Max air flow: 1.05 m3/min (37.1 CFM) | Max static pressure: 43.1 Pa (0.173 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
109P0812M201 Size: 80x80x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.07 A | Rated input: 0.84 W | Speed: 2,000 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 18.5 Pa (0.074 inchH2O) | Noise: 21 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 150 g
109P0824A201 Size: 80x80x32 mm | Rated voltage: 24 V | Operating voltage range: 12 to 26.4 V | Rated current: 0.29 A | Rated input: 6.96 W | Speed: 4,600 min-1 | Max air flow: 1.52 m3/min (53.7 CFM) | Max static pressure: 91.1 Pa (0.366 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 150 g
109P0824H201 Size: 80x80x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.09 A | Rated input: 2.16 W | Speed: 3,150 min-1 | Max air flow: 1.05 m3/min (37.1 CFM) | Max static pressure: 43.1 Pa (0.173 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
109P0824M201 Size: 80x80x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 2,000 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 18.6 Pa (0.075 inchH2O) | Noise: 21 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 150 g
109P0848H201 Size: 80x80x32 mm | Rated voltage: 48 V | Operating voltage range: 43 to 53 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,350 min-1 | Max air flow: 1.10 m3/min (38.9 CFM) | Max static pressure: 50.9 Pa (0.204 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
DC Axial FansSanyo Denki
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 DC Axial Fan 80x80x32 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (7)

109P0812A201, 109P0812H201, 109P0812M201, 109P0824A201, 109P0824H201, 109P0824M201, 109P0848H201

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109P0812A201Size: 80x80x32 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.2 V | Rated current: 0.56 A | Rated input: 6.72 W | Speed: 4,600 min-1 | Max air flow: 1.52 m3/min (53.7 CFM) | Max static pressure: 91.1 Pa (0.366 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +55 °C | Expected life: 40,000 h at 55°C | Mass: 150 g
109P0812H201Size: 80x80x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.16 A | Rated input: 1.92 W | Speed: 3,150 min-1 | Max air flow: 1.05 m3/min (37.1 CFM) | Max static pressure: 43.1 Pa (0.173 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
109P0812M201Size: 80x80x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.07 A | Rated input: 0.84 W | Speed: 2,000 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 18.5 Pa (0.074 inchH2O) | Noise: 21 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 150 g
109P0824A201Size: 80x80x32 mm | Rated voltage: 24 V | Operating voltage range: 12 to 26.4 V | Rated current: 0.29 A | Rated input: 6.96 W | Speed: 4,600 min-1 | Max air flow: 1.52 m3/min (53.7 CFM) | Max static pressure: 91.1 Pa (0.366 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 150 g
109P0824H201Size: 80x80x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.09 A | Rated input: 2.16 W | Speed: 3,150 min-1 | Max air flow: 1.05 m3/min (37.1 CFM) | Max static pressure: 43.1 Pa (0.173 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
109P0824M201Size: 80x80x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 2,000 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 18.6 Pa (0.075 inchH2O) | Noise: 21 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 150 g
109P0848H201Size: 80x80x32 mm | Rated voltage: 48 V | Operating voltage range: 43 to 53 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,350 min-1 | Max air flow: 1.10 m3/min (38.9 CFM) | Max static pressure: 50.9 Pa (0.204 inchH2O) | Noise: 35 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
