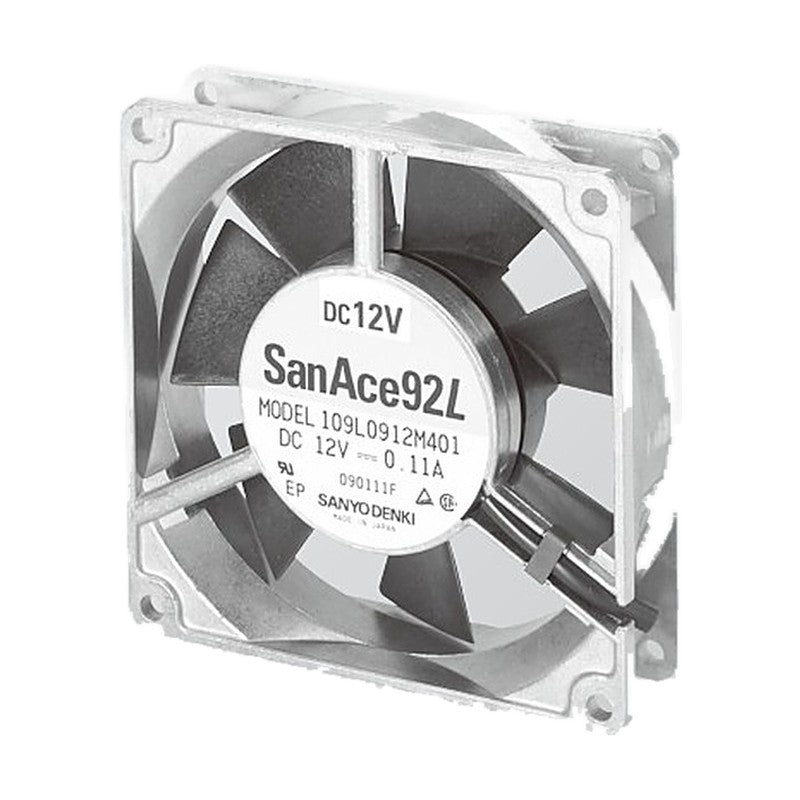

Sanyo Denki San Ace 92L Long Life DC Fan 92x92x25 mm

Sanyo Denki San Ace 92L Long Life DC Fan 92x92x25 mm

The San Ace 92L is a long life DC axial cooling fan in a 92x92x25 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,700 to 3,500 min-1 with maximum air flow up to 1.69 m3/min and maximum static pressure up to 66.6 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 92x92x25 mm
Operating temperature -10 to +70 °C
Mass 170 g
109L0912S401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.32 A | Rated input: 3.84 W | Speed: 3,500 min-1 | Max air flow: 1.69 m3/min (59.7 CFM) | Max static pressure: 66.6 Pa (0.267 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912H401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 2,850 min-1 | Max air flow: 1.38 m3/min (48.7 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912F401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 2,450 min-1 | Max air flow: 1.18 m3/min (41.7 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912M401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 2,100 min-1 | Max air flow: 1.01 m3/min (35.7 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912L401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 1,700 min-1 | Max air flow: 0.80 m3/min (28.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924H401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 2,850 min-1 | Max air flow: 1.38 m3/min (48.7 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924F401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,450 min-1 | Max air flow: 1.18 m3/min (41.7 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924M401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.06 A | Rated input: 1.44 W | Speed: 2,100 min-1 | Max air flow: 1.01 m3/min (35.7 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924L401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.2 W | Speed: 1,700 min-1 | Max air flow: 0.80 m3/min (28.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0948C401 Size: 92x92x25 mm | Rated voltage: 48 V | Operating voltage range: 43 to 53 V | Rated current: 0.1 A | Rated input: 4.8 W | Speed: 3,400 min-1 | Max air flow: 1.65 m3/min (58.3 CFM) | Max static pressure: 64.2 Pa (0.258 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 170 g
109L0948H401 Size: 92x92x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 2,850 min-1 | Max air flow: 1.38 m3/min (48.7 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
DC Axial FansSanyo Denki
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92L Long Life DC Fan 92x92x25 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (11)

109L0912S401, 109L0912H401, 109L0912F401, 109L0912M401, 109L0912L401, 109L0924H401, 109L0924F401, 109L0924M401, 109L0924L401, 109L0948C401 + 1 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109L0912S401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.32 A | Rated input: 3.84 W | Speed: 3,500 min-1 | Max air flow: 1.69 m3/min (59.7 CFM) | Max static pressure: 66.6 Pa (0.267 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912H401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 2,850 min-1 | Max air flow: 1.38 m3/min (48.7 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912F401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 2,450 min-1 | Max air flow: 1.18 m3/min (41.7 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912M401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 2,100 min-1 | Max air flow: 1.01 m3/min (35.7 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0912L401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 1,700 min-1 | Max air flow: 0.80 m3/min (28.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924H401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 2,850 min-1 | Max air flow: 1.38 m3/min (48.7 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924F401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,450 min-1 | Max air flow: 1.18 m3/min (41.7 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924M401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.06 A | Rated input: 1.44 W | Speed: 2,100 min-1 | Max air flow: 1.01 m3/min (35.7 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0924L401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.2 W | Speed: 1,700 min-1 | Max air flow: 0.80 m3/min (28.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109L0948C401Size: 92x92x25 mm | Rated voltage: 48 V | Operating voltage range: 43 to 53 V | Rated current: 0.1 A | Rated input: 4.8 W | Speed: 3,400 min-1 | Max air flow: 1.65 m3/min (58.3 CFM) | Max static pressure: 64.2 Pa (0.258 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 170 g
109L0948H401Size: 92x92x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 2,850 min-1 | Max air flow: 1.38 m3/min (48.7 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
