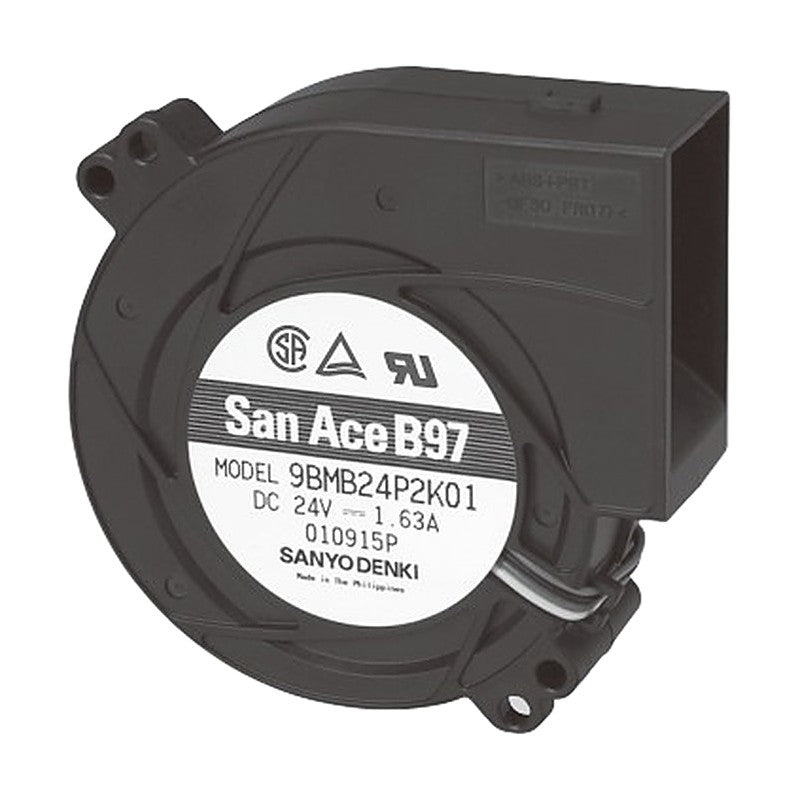

Sanyo Denki San Ace B97 DC Blower 97x33 mm (PWM Control)

Sanyo Denki San Ace B97 DC Blower 97x33 mm (PWM Control)

The San Ace B97 is a DC blower designed for high static pressure cooling in a 97x33 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 6,850 to 6,850 min-1 with maximum air flow up to 1.61 m3/min and maximum static pressure up to 1280 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

PWM duty cycle 100 %
Speed 6,850 min-1
Max air flow 1.61 m3/min (56.9 CFM)
Max static pressure 1,280 Pa (5.14 inchH2O)
Noise 66 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 190 g
9BMB12P2K01 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 % | Rated current: 3.4 A | Rated input: 40.8 W | Speed: 6,850 min-1 | Max air flow: 1.61 m3/min (56.9 CFM) | Max static pressure: 1,280 Pa (5.14 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 190 g
9BMB24P2K01 Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | PWM duty cycle: 100 % | Rated current: 1.62 A | Rated input: 38.88 W | Speed: 6,850 min-1 | Max air flow: 1.61 m3/min (56.9 CFM) | Max static pressure: 1,280 Pa (5.14 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 190 g
DC BlowersSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B97 DC Blower 97x33 mm (PWM Control)

Brand Sanyo Denki·DC Blowers

Available part numbers (2)

9BMB12P2K01, 9BMB24P2K01

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9BMB12P2K01Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 % | Rated current: 3.4 A | Rated input: 40.8 W | Speed: 6,850 min-1 | Max air flow: 1.61 m3/min (56.9 CFM) | Max static pressure: 1,280 Pa (5.14 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 190 g
9BMB24P2K01Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | PWM duty cycle: 100 % | Rated current: 1.62 A | Rated input: 38.88 W | Speed: 6,850 min-1 | Max air flow: 1.61 m3/min (56.9 CFM) | Max static pressure: 1,280 Pa (5.14 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 190 g
