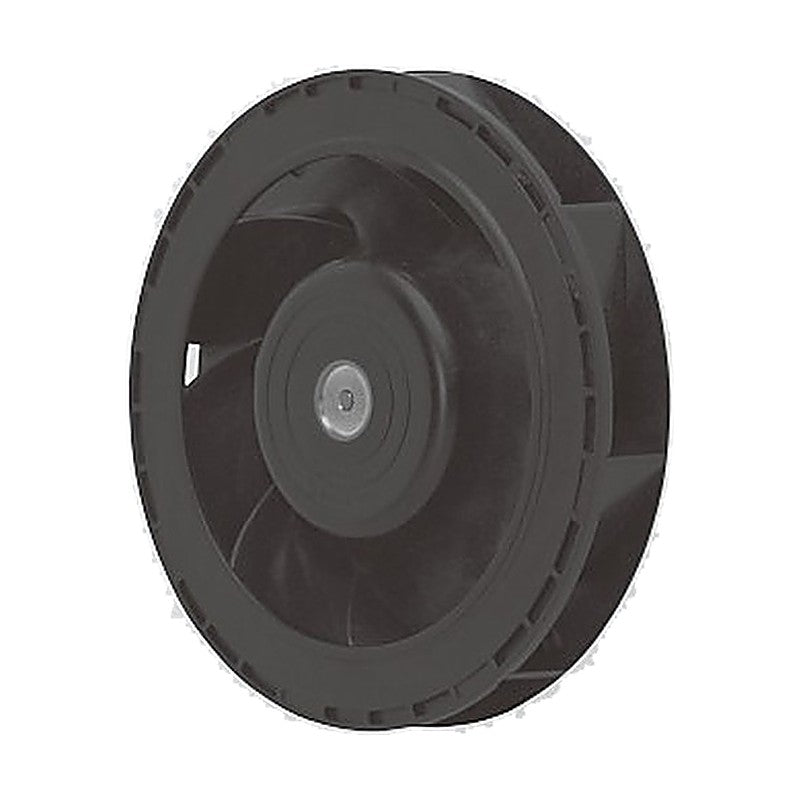

Sanyo Denki San Ace C100 DC Centrifugal Fan dia. 100x25 mm

Sanyo Denki San Ace C100 DC Centrifugal Fan dia. 100x25 mm

The San Ace C100 is a DC centrifugal fan in a dia. 100x25 mm frame.

Key features

  • Models are offered for 48 V DC rated voltage
  • Rated speeds range from 2,000 to 6,400 min-1 with maximum air flow up to 1.77 m3/min and maximum static pressure up to 560 Pa
  • The frame is made of aluminum
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Catalog performance values apply with the optional inlet nozzle (model 109-1080) mounted
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 48 V
Operating voltage range 36 to 60 V
PWM duty cycle 100 / 0 %
Rated current 0.22 / 0.04 A
Rated input 10.56 / 1.92 W
Speed 6,400 / 2,000 min-1
Max air flow 1.77 / 0.51 m3/min (62.5 / 18.0 CFM)
Max static pressure 560 / 48 Pa (2.25 / 0.19 inchH2O)
Noise 60 / 34 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 150 g
9TM48P4H01 Rated voltage: 48 V | Operating voltage range: 36 to 60 V | PWM duty cycle: 100 / 0 % | Rated current: 0.22 / 0.04 A | Rated input: 10.56 / 1.92 W | Speed: 6,400 / 2,000 min-1 | Max air flow: 1.77 / 0.51 m3/min (62.5 / 18.0 CFM) | Max static pressure: 560 / 48 Pa (2.25 / 0.19 inchH2O) | Noise: 60 / 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
DC Centrifugal FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace C100 DC Centrifugal Fan dia. 100x25 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (1)

9TM48P4H01

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9TM48P4H01Rated voltage: 48 V | Operating voltage range: 36 to 60 V | PWM duty cycle: 100 / 0 % | Rated current: 0.22 / 0.04 A | Rated input: 10.56 / 1.92 W | Speed: 6,400 / 2,000 min-1 | Max air flow: 1.77 / 0.51 m3/min (62.5 / 18.0 CFM) | Max static pressure: 560 / 48 Pa (2.25 / 0.19 inchH2O) | Noise: 60 / 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 150 g
