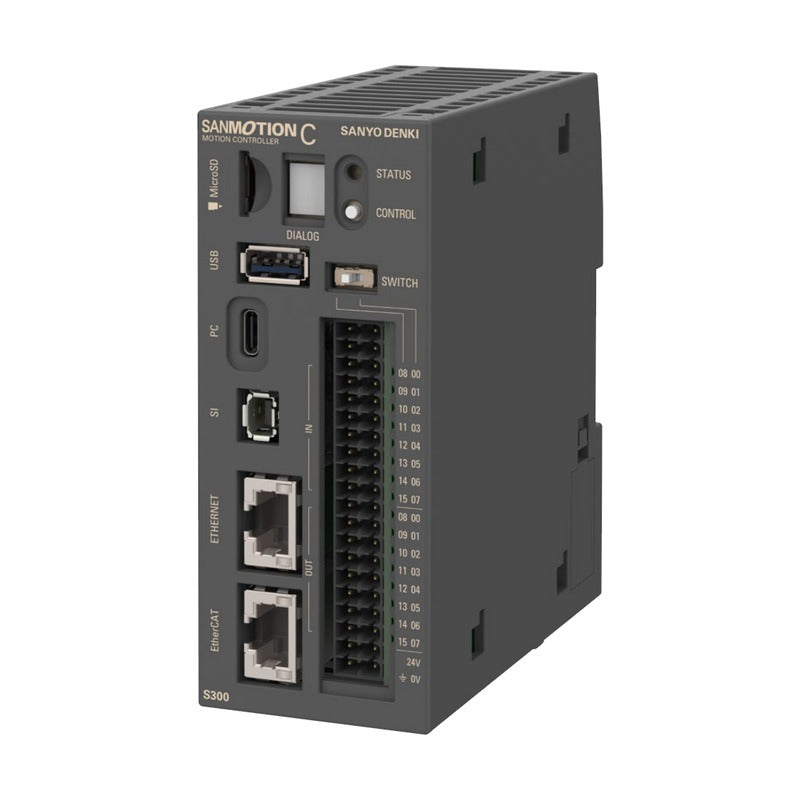

Sanyo Denki SANMOTION C S300 Motion Controller (32 Axes)

Sanyo Denki SANMOTION C S300 Motion Controller (32 Axes)

High-performance scalable EtherCAT motion controller for up to 32 axes at a 1 ms cycle, with enhanced security and IoT functions.

Key features

  • Up to 32 axes with 1 to 16 ms communication cycle
  • SMC300-A: motion, electronic cam/gear and robot control (G-code in CNC mode)
  • SMC300-B: sequence and PTP motion control (EtherCAT PP/PV modes)
  • Ethernet with Modbus TCP, OPC UA, EtherNet/IP, MQTT, SMTP; built-in drive recorder
  • 16 digital inputs / 16 sink outputs; up to 4 SMC-DM332 I/O expansion modules
  • USB 3.0 Type A host, USB 2.0 Type C PC port, microSD up to 32 GB

Specifications

Series SANMOTION C S300
Max. controllable axes 32
Fieldbus EtherCAT 100 Mbps master, FoE
Power supply 24 VDC (19.2 to 30 VDC), 1.2 A
Power consumption 29 W
Digital I/O 16 inputs / 16 sink outputs (0.5 A)
Cooling Forced air cooling
Dimensions 50 (W) x 120 (H) x 110 (D) mm
Mass 350 g
Source Sanyo Denki SANMOTION C S300 catalogue S1073B001 '26.1, p. 2-16
SMC300-A Type: High-performance | Control functions: Sequence, motion, robot | Torque control: Yes
SMC300-B Type: Standard | Control functions: Sequence, PTP motion | Torque control: No
Motion ControllersSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION C S300 Motion Controller (32 Axes)

Brand Sanyo Denki·Motion Controllers

Available part numbers (2)

SMC300-A, SMC300-B

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMC300-AType: High-performance | Control functions: Sequence, motion, robot | Torque control: Yes
SMC300-BType: Standard | Control functions: Sequence, PTP motion | Torque control: No
