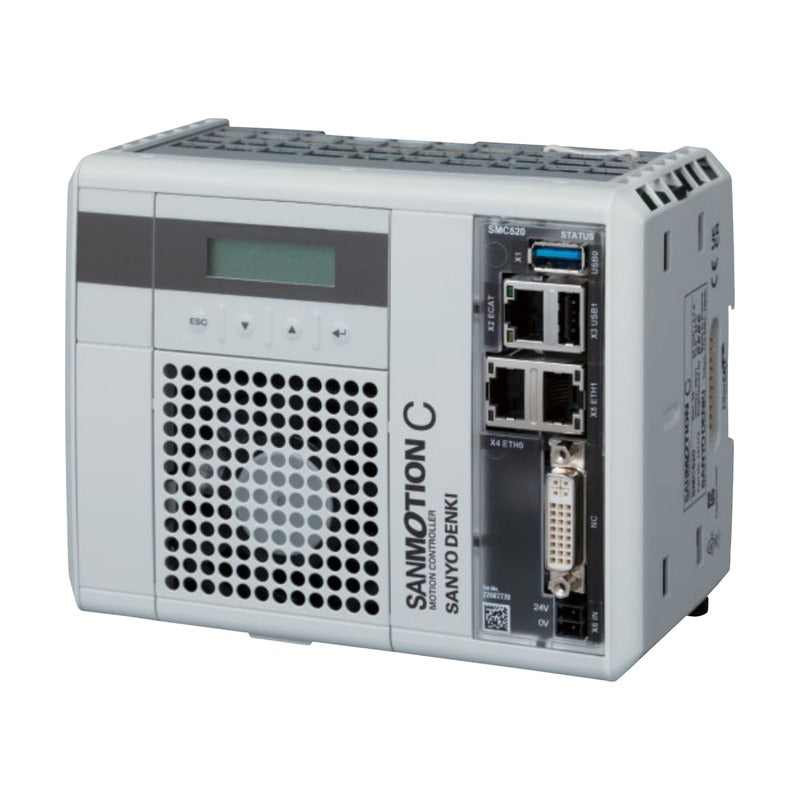

Sanyo Denki SANMOTION C S500 Motion Controller CPU Module (64 Axes)

Sanyo Denki SANMOTION C S500 Motion Controller CPU Module (64 Axes)

Modular EtherCAT motion and robot controller CPU for up to 64 axes, controlling up to 4 robots including 6-/7-axis articulated arms.

Key features

  • Up to 64 motor axes with communication cycle down to 1 ms
  • Controls Cartesian, SCARA, palletizing, parallel link and 6-/7-axis articulated robots
  • Up to 4 robots simultaneously (SMC520); approx. 60% smaller than SMC263X
  • EtherCAT, 2-port Gigabit Ethernet, Modbus TCP and OPC UA connectivity
  • Up to 12 expansion modules via Ke-bus

Specifications

Series SANMOTION C S500
Max. controllable axes 64
EtherCAT 100 Mbps, 1 port
Ethernet 10/100/1000 Mbps, 2 ports
Input voltage 24 VDC (19.2 to 30 VDC)
Max. connectable modules 12
Ambient temperature 0 to +55 C
Source Sanyo Denki SANMOTION C S500 catalogue S1059B002 '23.1, p. 3-13
SMC505 CPU: 1.75 GHz, 2 GB | Max. robots: 1 | Robot cycle: 4 ms or more | Storage: 2 GB microSD | Mass: 500 g
SMC507 CPU: 1.91 GHz, 2 GB | Max. robots: 2 | Robot cycle: 2 ms or more | Storage: 2 GB microSD | Mass: 515 g
SMC520 CPU: 2 GHz, 4 GB | Max. robots: 4 | Robot cycle: 1 ms or more | Storage: 4 GB CFast | Mass: 900 g
Motion ControllersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION C S500 Motion Controller CPU Module (64 Axes)

Brand Sanyo Denki·Motion Controllers

Available part numbers (3)

SMC505, SMC507, SMC520

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMC505CPU: 1.75 GHz, 2 GB | Max. robots: 1 | Robot cycle: 4 ms or more | Storage: 2 GB microSD | Mass: 500 g
SMC507CPU: 1.91 GHz, 2 GB | Max. robots: 2 | Robot cycle: 2 ms or more | Storage: 2 GB microSD | Mass: 515 g
SMC520CPU: 2 GHz, 4 GB | Max. robots: 4 | Robot cycle: 1 ms or more | Storage: 4 GB CFast | Mass: 900 g
