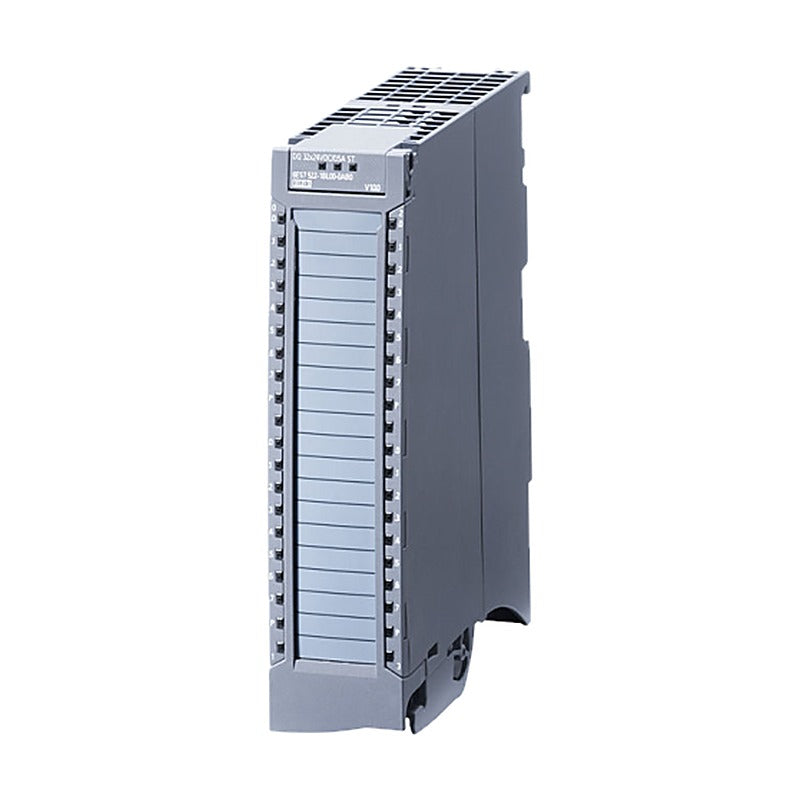

Siemens SIMATIC S7-1500 Digital Output Modules SM 522 (incl. SIPLUS)

Siemens SIMATIC S7-1500 Digital Output Modules SM 522 (incl. SIPLUS)

SM 522 digital output modules for SIMATIC S7-1500 and ET 200MP with transistor, relay and TRIAC outputs, including SIPLUS extreme variants.

Key features

  • 8, 16, 32 or 64 channels
  • 24 V DC transistor outputs 0.3 A to 2 A, relay and TRIAC outputs for 230 V AC
  • HF/HS modules with diagnostics and substitute values
  • 25 mm BA modules supplied with push-in front connector
  • SIPLUS versions for extended temperature and harsh environments

Specifications

Brand Siemens
Product line SIMATIC S7-1500
Category PLC I/O Modules
Series SIMATIC S7-1500 / ET 200MP
Variants listed 21
Source Siemens Catalog ST 70 · 2026, p. 882-902
6ES7522-1BF00-0AB0 Type: DQ 8x24VDC/2A HF | Channels: 8 (groups of 8) | Output: 24 V DC, 2 A transistor | Width: 35 mm | Version: Standard
6ES7522-5BF00-0AB0 Type: DQ 8x24VDC/2A HS | Channels: 8 (groups of 4) | Output: 24 V DC, 2 A transistor | Width: 35 mm | Version: Standard
6ES7522-1BH01-0AB0 Type: DQ 16x24VDC/0.5A HF | Channels: 16 (groups of 8) | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: Standard
6ES7522-1BL01-0AB0 Type: DQ 32x24VDC/0.5A HF | Channels: 32 (groups of 8) | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: Standard
6ES7522-1BP00-0AA0 Type: DQ 64x24VDC/0.3A BA | Channels: 64 (groups of 16) | Output: 24 V DC, 0.3 A, sourcing | Width: 35 mm | Version: Standard
6ES7522-1BP50-0AA0 Type: DQ 64x24VDC/0.3A SNK BA | Channels: 64 (groups of 16) | Output: 24 V DC, 0.3 A, sinking | Width: 35 mm | Version: Standard
6ES7522-5HF00-0AB0 Type: DQ 8x230VAC/5A ST | Channels: 8 (groups of 1) | Output: Relay, 230 V AC, 5 A | Width: 35 mm | Version: Standard
6ES7522-5HH00-0AB0 Type: DQ 16x230VAC/2A ST | Channels: 16 (groups of 2) | Output: Relay, 230 V AC, 2 A | Width: 35 mm | Version: Standard
6ES7522-5FF00-0AB0 Type: DQ 8x230VAC/2A ST | Channels: 8 (groups of 1) | Output: TRIAC, 230 V AC, 2 A | Width: 35 mm | Version: Standard
6ES7522-5FH00-0AB0 Type: DQ 16x230VAC/1A ST | Channels: 16 (groups of 2) | Output: TRIAC, 230 V AC, 1 A | Width: 35 mm | Version: Standard
6ES7522-5EH00-0AB0 Type: DQ 16x24..48VUC/125VDC/0.5A ST | Channels: 16 (groups of 1) | Output: 24-48 V UC/125 V DC, 0.5 A | Width: 35 mm | Version: Standard
6ES7522-1BH10-0AA0 Type: DQ 16x24VDC/0.5A BA | Channels: 16 | Output: 24 V DC, 0.5 A transistor | Width: 25 mm | Version: Push-in front connector incl.
6ES7522-1BL10-0AA0 Type: DQ 32x24VDC/0.5A BA | Channels: 32 | Output: 24 V DC, 0.5 A transistor | Width: 25 mm | Version: Push-in front connector incl.
6AG1522-1BF00-7AB0 Type: SIPLUS DQ 8x24VDC/2A HF | Channels: 8 | Output: 24 V DC, 2 A transistor | Width: 35 mm | Version: SIPLUS extreme
6AG1522-1BH01-7AB0 Type: SIPLUS DQ 16x24VDC/0.5A HF | Channels: 16 | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: SIPLUS extreme
6AG1522-1BL01-7AB0 Type: SIPLUS DQ 32x24VDC/0.5A HF | Channels: 32 | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5HF00-2AB0 Type: SIPLUS DQ 8x230VAC/5A ST | Channels: 8 | Output: Relay, 230 V AC, 5 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5HH00-7AB0 Type: SIPLUS DQ 16x230VAC/2A ST | Channels: 16 | Output: Relay, 230 V AC, 2 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5FF00-7AB0 Type: SIPLUS DQ 8x230VAC/2A ST | Channels: 8 | Output: TRIAC, 230 V AC, 2 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5FH00-7AB0 Type: SIPLUS DQ 16x230VAC/1A ST | Channels: 16 | Output: TRIAC, 230 V AC, 1 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5EH00-7AB0 Type: SIPLUS DQ 16x24..48VUC/125VDC | Channels: 16 | Output: 24-48 V UC/125 V DC, 0.5 A | Width: 35 mm | Version: SIPLUS extreme
PLC I/O ModulesSiemens
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC S7-1500 Digital Output Modules SM 522 (incl. SIPLUS)

Brand Siemens·PLC I/O Modules

Available part numbers (21)

6ES7522-1BF00-0AB0, 6ES7522-5BF00-0AB0, 6ES7522-1BH01-0AB0, 6ES7522-1BL01-0AB0, 6ES7522-1BP00-0AA0, 6ES7522-1BP50-0AA0, 6ES7522-5HF00-0AB0, 6ES7522-5HH00-0AB0, 6ES7522-5FF00-0AB0, 6ES7522-5FH00-0AB0 + 11 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7522-1BF00-0AB0Type: DQ 8x24VDC/2A HF | Channels: 8 (groups of 8) | Output: 24 V DC, 2 A transistor | Width: 35 mm | Version: Standard
6ES7522-5BF00-0AB0Type: DQ 8x24VDC/2A HS | Channels: 8 (groups of 4) | Output: 24 V DC, 2 A transistor | Width: 35 mm | Version: Standard
6ES7522-1BH01-0AB0Type: DQ 16x24VDC/0.5A HF | Channels: 16 (groups of 8) | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: Standard
6ES7522-1BL01-0AB0Type: DQ 32x24VDC/0.5A HF | Channels: 32 (groups of 8) | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: Standard
6ES7522-1BP00-0AA0Type: DQ 64x24VDC/0.3A BA | Channels: 64 (groups of 16) | Output: 24 V DC, 0.3 A, sourcing | Width: 35 mm | Version: Standard
6ES7522-1BP50-0AA0Type: DQ 64x24VDC/0.3A SNK BA | Channels: 64 (groups of 16) | Output: 24 V DC, 0.3 A, sinking | Width: 35 mm | Version: Standard
6ES7522-5HF00-0AB0Type: DQ 8x230VAC/5A ST | Channels: 8 (groups of 1) | Output: Relay, 230 V AC, 5 A | Width: 35 mm | Version: Standard
6ES7522-5HH00-0AB0Type: DQ 16x230VAC/2A ST | Channels: 16 (groups of 2) | Output: Relay, 230 V AC, 2 A | Width: 35 mm | Version: Standard
6ES7522-5FF00-0AB0Type: DQ 8x230VAC/2A ST | Channels: 8 (groups of 1) | Output: TRIAC, 230 V AC, 2 A | Width: 35 mm | Version: Standard
6ES7522-5FH00-0AB0Type: DQ 16x230VAC/1A ST | Channels: 16 (groups of 2) | Output: TRIAC, 230 V AC, 1 A | Width: 35 mm | Version: Standard
6ES7522-5EH00-0AB0Type: DQ 16x24..48VUC/125VDC/0.5A ST | Channels: 16 (groups of 1) | Output: 24-48 V UC/125 V DC, 0.5 A | Width: 35 mm | Version: Standard
6ES7522-1BH10-0AA0Type: DQ 16x24VDC/0.5A BA | Channels: 16 | Output: 24 V DC, 0.5 A transistor | Width: 25 mm | Version: Push-in front connector incl.
6ES7522-1BL10-0AA0Type: DQ 32x24VDC/0.5A BA | Channels: 32 | Output: 24 V DC, 0.5 A transistor | Width: 25 mm | Version: Push-in front connector incl.
6AG1522-1BF00-7AB0Type: SIPLUS DQ 8x24VDC/2A HF | Channels: 8 | Output: 24 V DC, 2 A transistor | Width: 35 mm | Version: SIPLUS extreme
6AG1522-1BH01-7AB0Type: SIPLUS DQ 16x24VDC/0.5A HF | Channels: 16 | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: SIPLUS extreme
6AG1522-1BL01-7AB0Type: SIPLUS DQ 32x24VDC/0.5A HF | Channels: 32 | Output: 24 V DC, 0.5 A transistor | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5HF00-2AB0Type: SIPLUS DQ 8x230VAC/5A ST | Channels: 8 | Output: Relay, 230 V AC, 5 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5HH00-7AB0Type: SIPLUS DQ 16x230VAC/2A ST | Channels: 16 | Output: Relay, 230 V AC, 2 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5FF00-7AB0Type: SIPLUS DQ 8x230VAC/2A ST | Channels: 8 | Output: TRIAC, 230 V AC, 2 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5FH00-7AB0Type: SIPLUS DQ 16x230VAC/1A ST | Channels: 16 | Output: TRIAC, 230 V AC, 1 A | Width: 35 mm | Version: SIPLUS extreme
6AG1522-5EH00-7AB0Type: SIPLUS DQ 16x24..48VUC/125VDC | Channels: 16 | Output: 24-48 V UC/125 V DC, 0.5 A | Width: 35 mm | Version: SIPLUS extreme
