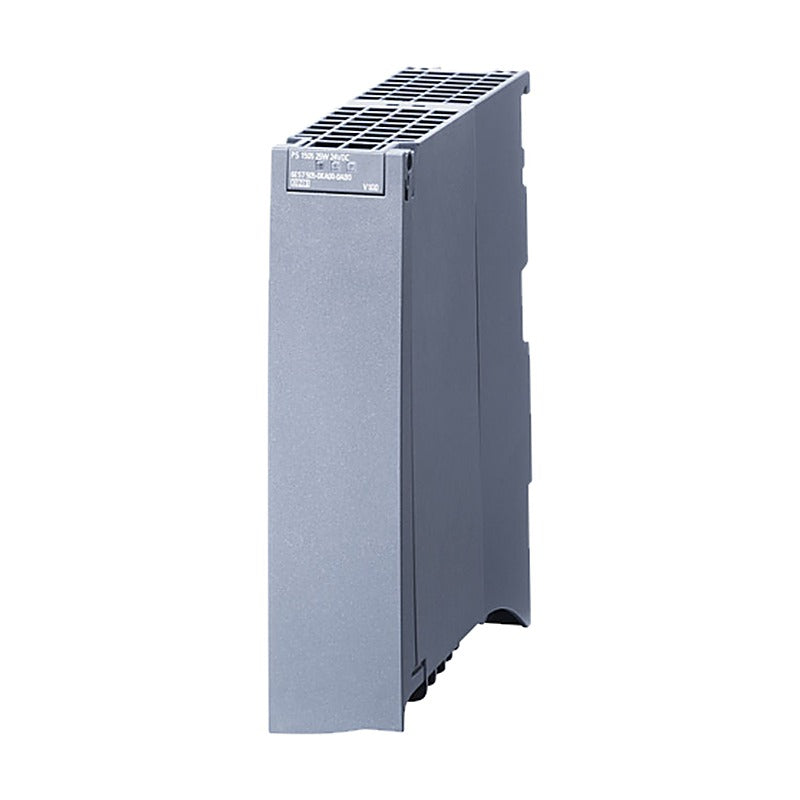

Siemens SIMATIC S7-1500 System PS & PM 1507 Load Power Supplies

Siemens SIMATIC S7-1500 System PS & PM 1507 Load Power Supplies

System power supplies (PS) feed the S7-1500 backplane bus, while PM 1507 load current supplies provide stabilized 24 V DC for CPU and I/O.

Key features

  • PS 25 W and PS 60 W system power supplies for the backplane bus
  • PS 60 W HF with buffer function for non-volatile retention of data
  • Wide input versions: 24/48/60 V DC and 120/230 V AC/DC
  • PM 1507 stabilized 24 V DC load supplies, 3 A and 8 A
  • Spare connectors for PS/PM modules

Specifications

Product line SIMATIC S7-1500
Product System and load power supplies
PS function Supplies backplane bus voltage
PM function Stabilized 24 V DC load supply
Scope Listed in S7-1500 CPU ordering data
Source Siemens Catalog ST 70 · 2026, p. 519-808
6ES7505-0KA00-0AB0 Type: System power supply PS 25 W | Input: 24 V DC | Output: 25 W to backplane bus
6ES7505-0RA00-0AB0 Type: System power supply PS 60 W | Input: 24/48/60 V DC | Output: 60 W to backplane bus
6ES7505-0RB00-0AB0 Type: System PS 60 W HF (buffer function) | Input: 24/48/60 V DC | Output: 60 W, data retention
6ES7507-0RA00-0AB0 Type: System power supply PS 60 W | Input: 120/230 V AC/DC | Output: 60 W to backplane bus
6ES7590-8AA00-0AA0 Type: Spare connector for PS and PM | Input: - | Output: 10 units per pack
6EP1332-4BA00 Type: Load current supply PM 1507 | Input: 120/230 V AC | Output: 24 V DC / 3 A
6EP1333-4BA00 Type: Load current supply PM 1507 | Input: 120/230 V AC | Output: 24 V DC / 8 A
6ES7193-4JB00-0AA0 Type: Power supply connector 2x2-pole | Input: Spring-loaded, 5.08 mm grid | Output: 10 units per pack
PLC Power SuppliesSiemens
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC S7-1500 System PS & PM 1507 Load Power Supplies

Brand Siemens·PLC Power Supplies

Available part numbers (8)

6ES7505-0KA00-0AB0, 6ES7505-0RA00-0AB0, 6ES7505-0RB00-0AB0, 6ES7507-0RA00-0AB0, 6ES7590-8AA00-0AA0, 6EP1332-4BA00, 6EP1333-4BA00, 6ES7193-4JB00-0AA0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7505-0KA00-0AB0Type: System power supply PS 25 W | Input: 24 V DC | Output: 25 W to backplane bus
6ES7505-0RA00-0AB0Type: System power supply PS 60 W | Input: 24/48/60 V DC | Output: 60 W to backplane bus
6ES7505-0RB00-0AB0Type: System PS 60 W HF (buffer function) | Input: 24/48/60 V DC | Output: 60 W, data retention
6ES7507-0RA00-0AB0Type: System power supply PS 60 W | Input: 120/230 V AC/DC | Output: 60 W to backplane bus
6ES7590-8AA00-0AA0Type: Spare connector for PS and PM | Input: - | Output: 10 units per pack
6EP1332-4BA00Type: Load current supply PM 1507 | Input: 120/230 V AC | Output: 24 V DC / 3 A
6EP1333-4BA00Type: Load current supply PM 1507 | Input: 120/230 V AC | Output: 24 V DC / 8 A
6ES7193-4JB00-0AA0Type: Power supply connector 2x2-pole | Input: Spring-loaded, 5.08 mm grid | Output: 10 units per pack
