Siemens SIMATIC TOP connect Universal Cables & Connection Modules

Siemens SIMATIC TOP connect Universal Cables & Connection Modules

SIMATIC TOP connect system cabling with universal connecting cables and TP connection modules for LOGO!, S7-1200, ET 200SP and S7-1500 IO (25 mm).

Key features

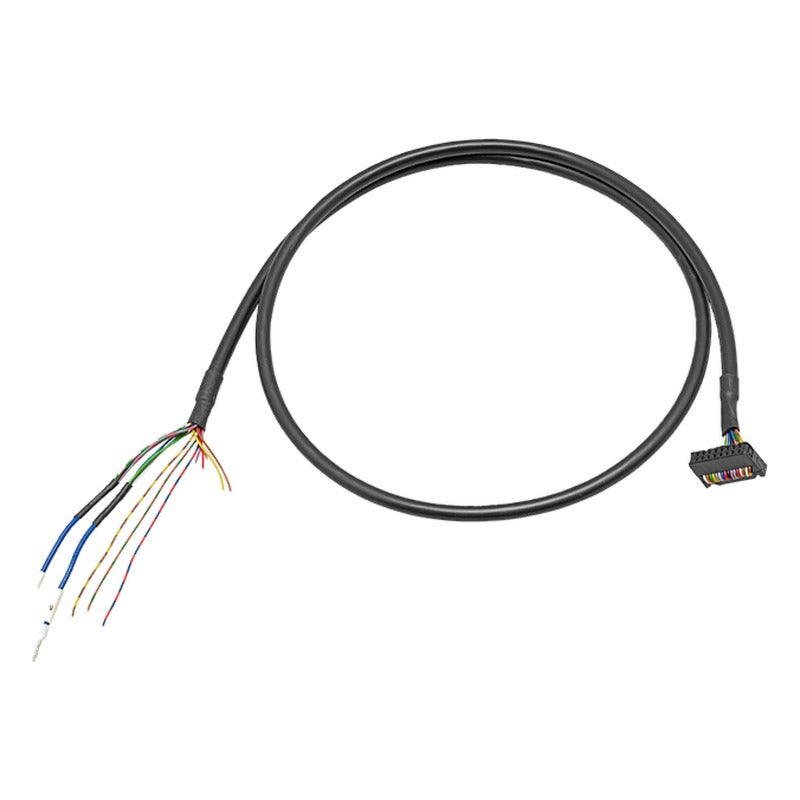

  • Universal 16-pin cable (16 x 0.14 mm2) transmits 8 signals plus supply voltage
  • Pre-assembled wire end ferrules at the controller end, IDC connector at module end
  • TP1/TP3 terminal modules for 1- or 3-conductor connection, push-in or screw
  • Relay (TPRo/TPRi) and optocoupler (TPOo) modules for isolation and higher currents
  • Versions with LEDs, isolating terminals or fuse per channel

Specifications

Brand Siemens
Product line SIMATIC TOP connect
Compatible with LOGO!, S7-1200, ET 200SP, S7-1500 IO 25 mm
Channels per module 8
Cable 16-pin, unshielded
Source Siemens Catalog ST 70 · 2026, p. 89-91
6ES7923-0BA50-0FB0 Type: Universal connecting cable 16 x 0.14 mm2 | Version: 0.5 m | Terminals: -
6ES7923-0BB00-0FB0 Type: Universal connecting cable 16 x 0.14 mm2 | Version: 1.0 m | Terminals: -
6ES7923-0BC00-0FB0 Type: Universal connecting cable 16 x 0.14 mm2 | Version: 2.0 m | Terminals: -
6ES7924-0AA20-0AC0 Type: TP1 (1-conductor) | Version: Without LEDs | Terminals: Push-in
6ES7924-0AA20-0AA0 Type: TP1 (1-conductor) | Version: Without LEDs | Terminals: Screw
6ES7924-0AA20-0BC0 Type: TP1 (1-conductor) | Version: With LEDs | Terminals: Push-in
6ES7924-0AA20-0BA0 Type: TP1 (1-conductor) | Version: With LEDs | Terminals: Screw
6ES7924-0CA20-0AC0 Type: TP3 (3-conductor) | Version: Without LEDs | Terminals: Push-in
6ES7924-0CA20-0AA0 Type: TP3 (3-conductor) | Version: Without LEDs | Terminals: Screw
6ES7924-0CA20-0BC0 Type: TP3 (3-conductor) | Version: With LEDs | Terminals: Push-in
6ES7924-0CA20-0BA0 Type: TP3 (3-conductor) | Version: With LEDs | Terminals: Screw
6ES7924-0CH20-0BC0 Type: TP3 (3-conductor) | Version: LEDs + isolating terminal/channel | Terminals: Push-in
6ES7924-0CH20-0BA0 Type: TP3 (3-conductor) | Version: LEDs + isolating terminal/channel | Terminals: Screw
6ES7924-0CL20-0BC0 Type: TP3 (3-conductor) | Version: LEDs + fuse per channel | Terminals: Push-in
6ES7924-0CL20-0BA0 Type: TP3 (3-conductor) | Version: LEDs + fuse per channel | Terminals: Screw
6ES7924-0BD20-0BC0 Type: TPRo relay, 8 outputs (NO) | Version: With LEDs | Terminals: Push-in
6ES7924-0BD20-0BA0 Type: TPRo relay, 8 outputs (NO) | Version: With LEDs | Terminals: Screw
6ES7924-0BE20-0BC0 Type: TPRi relay, 8 inputs 230 V AC | Version: With LEDs | Terminals: Push-in
6ES7924-0BE20-0BA0 Type: TPRi relay, 8 inputs 230 V AC | Version: With LEDs | Terminals: Screw
6ES7924-0BG20-0BC0 Type: TPRi relay, 8 inputs 110 V AC | Version: With LEDs | Terminals: Push-in
6ES7924-0BG20-0BA0 Type: TPRi relay, 8 inputs 110 V AC | Version: With LEDs | Terminals: Screw
6ES7924-0BF20-0BC0 Type: TPOo optocoupler, 8 outputs 24 V DC/4 A | Version: With LEDs | Terminals: Push-in
6ES7924-0BF20-0BA0 Type: TPOo optocoupler, 8 outputs 24 V DC/4 A | Version: With LEDs | Terminals: Screw
PLC AccessoriesSiemens
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC TOP connect Universal Cables & Connection Modules

Brand Siemens·PLC Accessories

Available part numbers (23)

6ES7923-0BA50-0FB0, 6ES7923-0BB00-0FB0, 6ES7923-0BC00-0FB0, 6ES7924-0AA20-0AC0, 6ES7924-0AA20-0AA0, 6ES7924-0AA20-0BC0, 6ES7924-0AA20-0BA0, 6ES7924-0CA20-0AC0, 6ES7924-0CA20-0AA0, 6ES7924-0CA20-0BC0 + 13 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7923-0BA50-0FB0Type: Universal connecting cable 16 x 0.14 mm2 | Version: 0.5 m | Terminals: -
6ES7923-0BB00-0FB0Type: Universal connecting cable 16 x 0.14 mm2 | Version: 1.0 m | Terminals: -
6ES7923-0BC00-0FB0Type: Universal connecting cable 16 x 0.14 mm2 | Version: 2.0 m | Terminals: -
6ES7924-0AA20-0AC0Type: TP1 (1-conductor) | Version: Without LEDs | Terminals: Push-in
6ES7924-0AA20-0AA0Type: TP1 (1-conductor) | Version: Without LEDs | Terminals: Screw
6ES7924-0AA20-0BC0Type: TP1 (1-conductor) | Version: With LEDs | Terminals: Push-in
6ES7924-0AA20-0BA0Type: TP1 (1-conductor) | Version: With LEDs | Terminals: Screw
6ES7924-0CA20-0AC0Type: TP3 (3-conductor) | Version: Without LEDs | Terminals: Push-in
6ES7924-0CA20-0AA0Type: TP3 (3-conductor) | Version: Without LEDs | Terminals: Screw
6ES7924-0CA20-0BC0Type: TP3 (3-conductor) | Version: With LEDs | Terminals: Push-in
6ES7924-0CA20-0BA0Type: TP3 (3-conductor) | Version: With LEDs | Terminals: Screw
6ES7924-0CH20-0BC0Type: TP3 (3-conductor) | Version: LEDs + isolating terminal/channel | Terminals: Push-in
6ES7924-0CH20-0BA0Type: TP3 (3-conductor) | Version: LEDs + isolating terminal/channel | Terminals: Screw
6ES7924-0CL20-0BC0Type: TP3 (3-conductor) | Version: LEDs + fuse per channel | Terminals: Push-in
6ES7924-0CL20-0BA0Type: TP3 (3-conductor) | Version: LEDs + fuse per channel | Terminals: Screw
6ES7924-0BD20-0BC0Type: TPRo relay, 8 outputs (NO) | Version: With LEDs | Terminals: Push-in
6ES7924-0BD20-0BA0Type: TPRo relay, 8 outputs (NO) | Version: With LEDs | Terminals: Screw
6ES7924-0BE20-0BC0Type: TPRi relay, 8 inputs 230 V AC | Version: With LEDs | Terminals: Push-in
6ES7924-0BE20-0BA0Type: TPRi relay, 8 inputs 230 V AC | Version: With LEDs | Terminals: Screw
6ES7924-0BG20-0BC0Type: TPRi relay, 8 inputs 110 V AC | Version: With LEDs | Terminals: Push-in
6ES7924-0BG20-0BA0Type: TPRi relay, 8 inputs 110 V AC | Version: With LEDs | Terminals: Screw
6ES7924-0BF20-0BC0Type: TPOo optocoupler, 8 outputs 24 V DC/4 A | Version: With LEDs | Terminals: Push-in
6ES7924-0BF20-0BA0Type: TPOo optocoupler, 8 outputs 24 V DC/4 A | Version: With LEDs | Terminals: Screw
