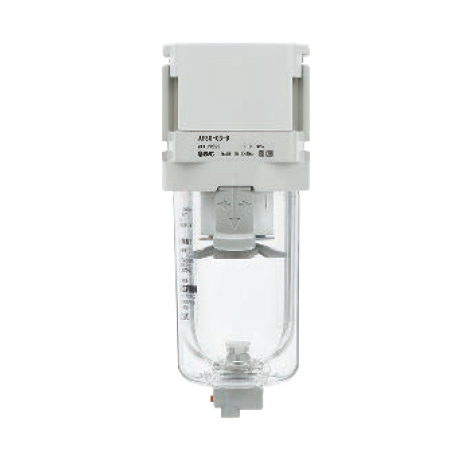

SMC AF60-D Modular Air Filter

SMC AF60-D Modular Air Filter

SMC modular pneumatic air filter (clean/low-particle spec).

Key features

  • Body size 60, port size: 1
  • Filter rating: 5 μm
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Mass: 0.99 kg
  • Threads: Rc / NPT / G

Specifications

Body size 60
Port size 1
Filter rating 5 μm
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Mass 0.99 kg
Case material Polycarbonate (standard)
Spec Clean/Low-particle (-D)
AF60-10-D Rc 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10C-D Rc 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10D-D Rc 1, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10B-D Rc 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10BC-D Rc 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10BD-D Rc 1, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10-D NPT 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10C-D NPT 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10D-D NPT 1, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10B-D NPT 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10BC-D NPT 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10BD-D NPT 1, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10-D G 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10C-D G 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10D-D G 1, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10B-D G 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10BC-D G 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10BD-D G 1, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
FiltersSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AF60-D Modular Air Filter

Brand SMC·Filters

Available part numbers (18)

AF60-10-D, AF60-10C-D, AF60-10D-D, AF60-10B-D, AF60-10BC-D, AF60-10BD-D, AF60-N10-D, AF60-N10C-D, AF60-N10D-D, AF60-N10B-D + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AF60-10-DRc 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10C-DRc 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10D-DRc 1, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10B-DRc 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10BC-DRc 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-10BD-DRc 1, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10-DNPT 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10C-DNPT 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10D-DNPT 1, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10B-DNPT 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10BC-DNPT 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-N10BD-DNPT 1, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10-DG 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10C-DG 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10D-DG 1, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10B-DG 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10BC-DG 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF60-F10BD-DG 1, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.99 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
