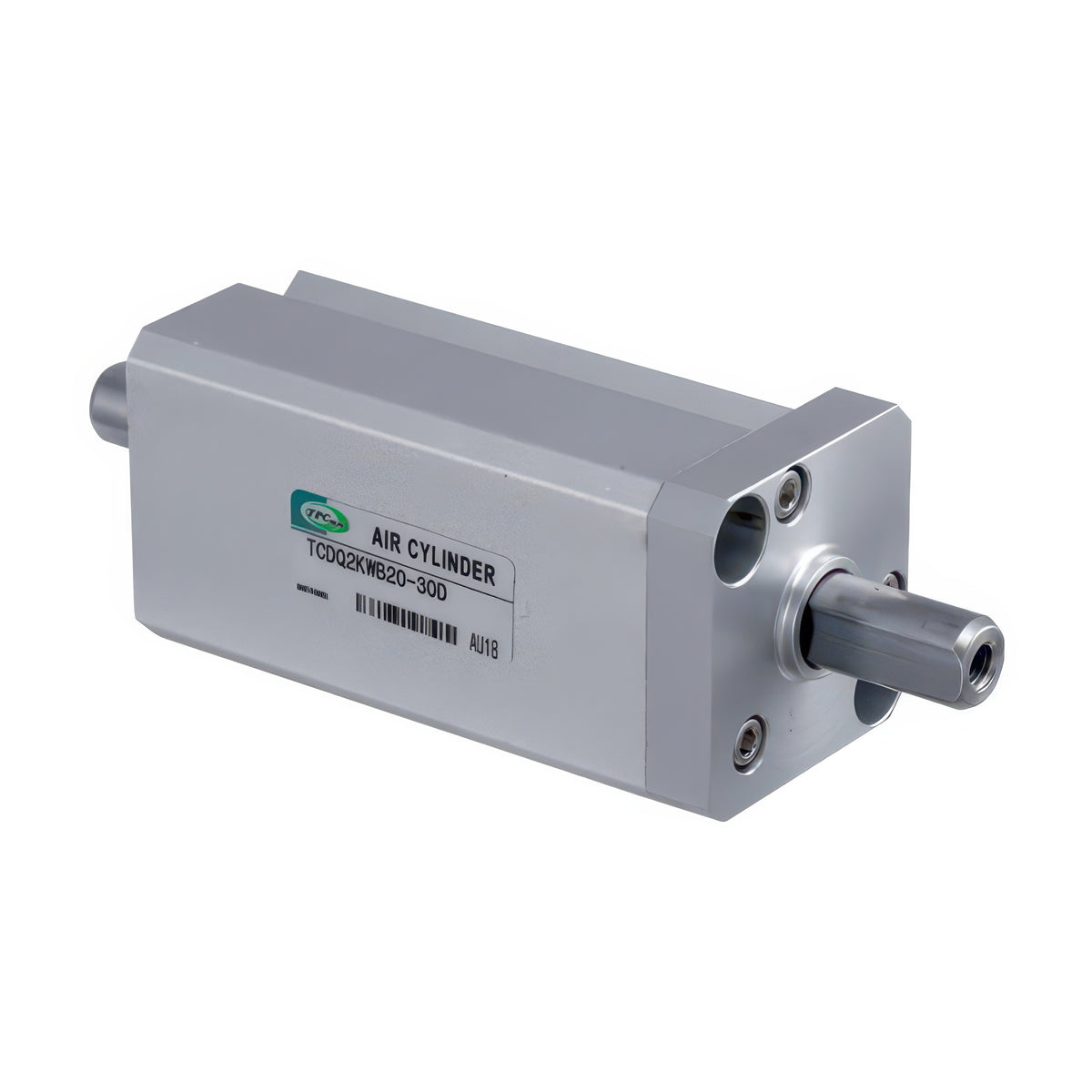

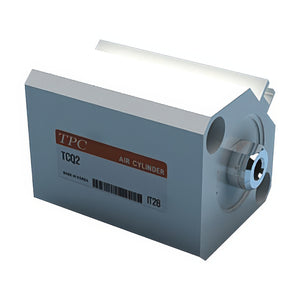

TPC Mechatronics TCQ2KW Non-Rotating Double-Rod Thin Cylinder (Bore 20-25 mm)

TPC Mechatronics TCQ2KW Non-Rotating Double-Rod Thin Cylinder (Bore 20-25 mm)

The TCQ2KW series is a double-acting, double-rod thin air cylinder with a non-rotating piston rod for 20 and 25 mm bores.

Key features

  • Rod rotation is held to +/-1 degree (20 mm) or +/-0.8 degree (25 mm) without an external guide
  • Mounting is through-hole (B) or both-end tapped (A)
  • The TCDQ2KW version has a built-in magnet for D-A73K reed auto switches
  • A male rod end is available as an option

Specifications

Port M5x0.8
Standard strokes 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm
Max stroke 50 mm
Acting Double, double rod
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion none
Fluid temperature -10 to 70 C (no freezing)
Piston speed 50-500 mm/s
TCQ2KWB20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating rod (both ends) | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: B through-hole (standard) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2KWB25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating rod (both ends) | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-0.8 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: B through-hole (standard) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2KWA20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating rod (both ends) | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2KWA25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating rod (both ends) | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-0.8 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KWB20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating rod (both ends) | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: B through-hole (standard) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KWB25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating rod (both ends) | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-0.8 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: B through-hole (standard) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KWA20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating rod (both ends) | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KWA25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating rod (both ends) | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-0.8 deg | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
