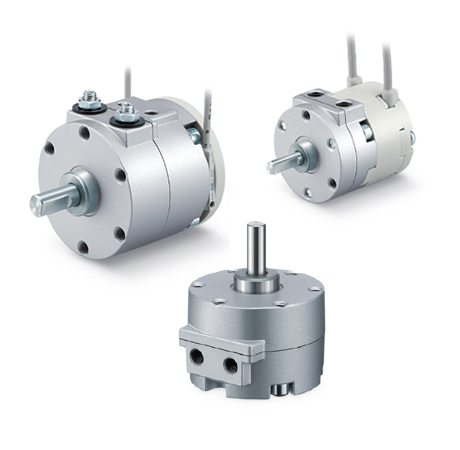

SMC CDRBW20 Vane Rotary Actuator (with magnet)

SMC CDRBW20 Vane Rotary Actuator (with magnet)

SMC vane-type rotary actuator, body size 20.

Key features

  • Shaft type: Double shaft (both-side, with flats)
  • Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated)
  • Operating temperature: 5 to 60°C
  • Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa
  • Min working pressure: 0.2 MPa
  • Allowable shaft load: radial 25 N, thrust 20 N

Specifications

Body size 20
Type With magnet (for auto switch mounting)
Shaft type Double shaft (both-side, with flats)
Lead wire length 0.5 m (standard)
Number of switches 2 (standard)
Operating fluid air (non-lubricated)
Operating temperature 5 to 60°C
Max working pressure 0.7 MPa
Proof pressure 1.05 MPa
Min working pressure 0.2 MPa
Allowable radial load 25 N
Allowable thrust load 20 N
CDRBW20-90-M9N 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g
CDRBW20-90-M9P 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g
CDRBW20-90-M9B 90° rotation, Single vane, Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g
CDRBW20-180-M9N 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g
CDRBW20-180-M9P 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g
CDRBW20-180-M9B 180° rotation, Single vane, Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g
CDRBW20-90D-M9N 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-90D-M9P 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-90D-M9B 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-100D-M9N 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-100D-M9P 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-100D-M9B 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
Rotary ActuatorsSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CDRBW20 Vane Rotary Actuator (with magnet)

Brand SMC·Rotary Actuators

Available part numbers (12)

CDRBW20-90-M9N, CDRBW20-90-M9P, CDRBW20-90-M9B, CDRBW20-180-M9N, CDRBW20-180-M9P, CDRBW20-180-M9B, CDRBW20-90D-M9N, CDRBW20-90D-M9P, CDRBW20-90D-M9B, CDRBW20-100D-M9N + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CDRBW20-90-M9N90° rotation, Single vane, Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g
CDRBW20-90-M9P90° rotation, Single vane, Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g
CDRBW20-90-M9B90° rotation, Single vane, Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g
CDRBW20-180-M9N180° rotation, Single vane, Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g
CDRBW20-180-M9P180° rotation, Single vane, Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g
CDRBW20-180-M9B180° rotation, Single vane, Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g
CDRBW20-90D-M9N90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-90D-M9P90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-90D-M9B90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-100D-M9N100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-100D-M9P100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
CDRBW20-100D-M9B100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g
