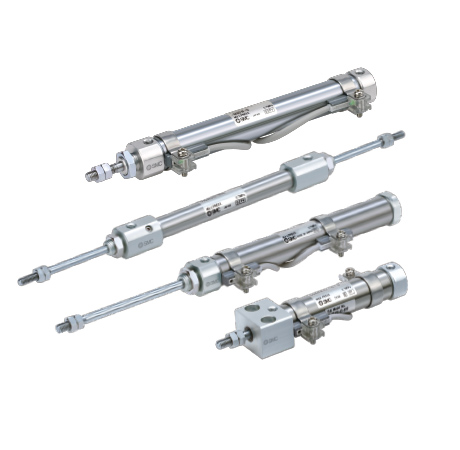

SMC CJ2L10 Micro Air Cylinder

SMC CJ2L10 Micro Air Cylinder

SMC CJ2 Series micro air cylinder, double-acting single-rod, rubber cushion.

Key features

  • Bore ø10 mm, single-side foot mount
  • Standard strokes 15–150 mm
  • Port thread M5×0.8
  • Rod end male thread M4×0.7

Specifications

Bore ø10 mm
Mount Single-side foot
Action Double-acting, Single-rod
Cushion Rubber
Magnet No
Rod thread M4×0.7 (male)
Port M5×0.8
CJ2L10-15Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 15 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 15 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-30Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 30 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 30 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-45Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 45 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 45 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-60Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 60 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 60 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-75Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 75 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 75 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-100Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 100 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 100 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-125Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 125 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 125 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-150Z CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 150 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 150 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
Cylinders | Round Body CylindersSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CJ2L10 Micro Air Cylinder

Brand SMC·Cylinders | Round Body Cylinders

Available part numbers (8)

CJ2L10-15Z, CJ2L10-30Z, CJ2L10-45Z, CJ2L10-60Z, CJ2L10-75Z, CJ2L10-100Z, CJ2L10-125Z, CJ2L10-150Z

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CJ2L10-15ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 15 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 15 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-30ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 30 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 30 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-45ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 45 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 45 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-60ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 60 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 60 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-75ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 75 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 75 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-100ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 100 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 100 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-125ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 125 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 125 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
CJ2L10-150ZCJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 150 mm stroke, single-side foot mount | Bore: ø10 mm | Stroke: 150 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8
