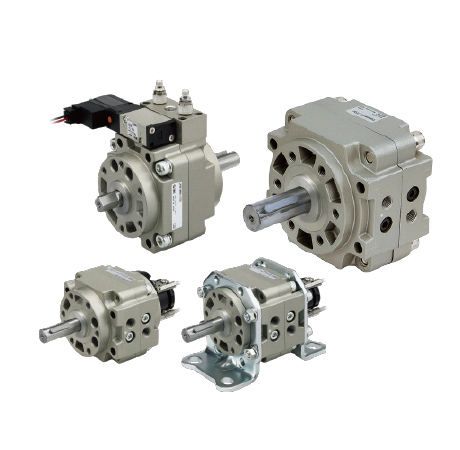

• SMC CRB1LW63 Vane Rotary Actuator (large size)
1 1

SMC CRB1LW63 Vane Rotary Actuator (large size)

SMC CRB1LW63 Vane Rotary Actuator (large size)

SMC vane-type rotary actuator, large size 63 (CRB1 series).

Key features

  • Mount type: Foot mount
  • Shaft type: Double shaft (long shaft Key + chamfer)
  • Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated)
  • Operating temperature: 5 to 60°C
  • Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa
  • Allowable shaft load: radial 390 N, thrust 340 N

Specifications

Body size 63
Type Standard (without auto switch)
Mount Foot mount
Shaft type Double shaft (long shaft Key + chamfer)
Operating fluid air (non-lubricated)
Operating temperature 5 to 60°C
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Min working pressure 0.15 MPa
Allowable radial load 390 N
Allowable thrust load 340 N
Port size Rc 1/8
CRB1LW63-90S 90° rotation, Single vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2150 g
CRB1LW63-90SE 90° rotation, Single vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2150 g
CRB1LW63-180S 180° rotation, Single vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2115 g
CRB1LW63-180SE 180° rotation, Single vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2115 g
CRB1LW63-270S 270° rotation, Single vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2075 g
CRB1LW63-270SE 270° rotation, Single vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2075 g
CRB1LW63-90D 90° rotation, Double vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2195 g
CRB1LW63-90DE 90° rotation, Double vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2195 g
CRB1LW63-100D 100° rotation, Double vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2185 g
CRB1LW63-100DE 100° rotation, Double vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2185 g
Rotary ActuatorsSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRB1LW63 Vane Rotary Actuator (large size)

Brand SMC·Rotary Actuators

Available part numbers (10)

CRB1LW63-90S, CRB1LW63-90SE, CRB1LW63-180S, CRB1LW63-180SE, CRB1LW63-270S, CRB1LW63-270SE, CRB1LW63-90D, CRB1LW63-90DE, CRB1LW63-100D, CRB1LW63-100DE

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRB1LW63-90S90° rotation, Single vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2150 g
CRB1LW63-90SE90° rotation, Single vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2150 g
CRB1LW63-180S180° rotation, Single vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2115 g
CRB1LW63-180SE180° rotation, Single vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2115 g
CRB1LW63-270S270° rotation, Single vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2075 g
CRB1LW63-270SE270° rotation, Single vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2075 g
CRB1LW63-90D90° rotation, Double vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2195 g
CRB1LW63-90DE90° rotation, Double vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2195 g
CRB1LW63-100D100° rotation, Double vane, Body side port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2185 g
CRB1LW63-100DE100° rotation, Double vane, Body axial port | Body size: 63 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2185 g
