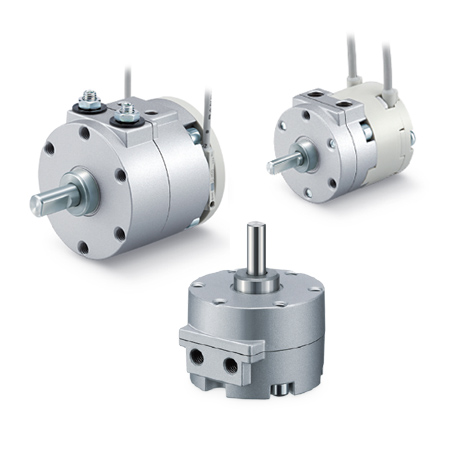

SMC CRBW20 Vane Rotary Actuator

SMC CRBW20 Vane Rotary Actuator

SMC vane-type rotary actuator, body size 20.

Key features

  • Shaft type: Double shaft (both-side, with flats)
  • Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated)
  • Operating temperature: 5 to 60°C
  • Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa
  • Min working pressure: 0.2 MPa
  • Allowable shaft load: radial 25 N, thrust 20 N

Specifications

Body size 20
Type Standard (without auto switch)
Shaft type Double shaft (both-side, with flats)
Operating fluid air (non-lubricated)
Operating temperature 5 to 60°C
Max working pressure 0.7 MPa
Proof pressure 1.05 MPa
Min working pressure 0.2 MPa
Allowable radial load 25 N
Allowable thrust load 20 N
Port size M5×0.8
CRBW20-90 90° rotation, Single vane | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 110 g
CRBW20-180 180° rotation, Single vane | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 107 g
CRBW20-270 270° rotation, Single vane | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 270° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 106 g
CRBW20-90D 90° rotation, Double vane (NEW) | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 114 g
CRBW20-100D 100° rotation, Double vane (NEW) | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 114 g
Rotary ActuatorsSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRBW20 Vane Rotary Actuator

Brand SMC·Rotary Actuators

Available part numbers (5)

CRBW20-90, CRBW20-180, CRBW20-270, CRBW20-90D, CRBW20-100D

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRBW20-9090° rotation, Single vane | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 110 g
CRBW20-180180° rotation, Single vane | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 107 g
CRBW20-270270° rotation, Single vane | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 270° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 106 g
CRBW20-90D90° rotation, Double vane (NEW) | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 114 g
CRBW20-100D100° rotation, Double vane (NEW) | Body size: 20 | Type: Standard (without auto switch) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 114 g
