• SMC MBB50 Standard Cylinder
1 1

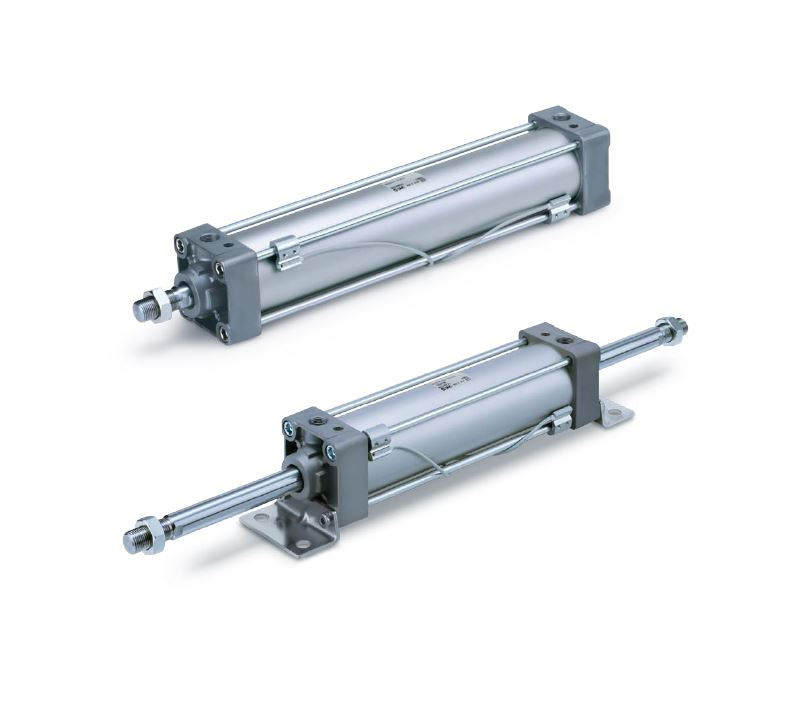

SMC MBB50 Standard Cylinder

SMC MBB50 Standard Cylinder

Standard pneumatic cylinder (tie-rod type), ø50mm bore, double-acting single-rod, Basic (through-hole) mounting, Rc port, air cushion, no auto-switch magnet.

Key features

  • Proven workhorse for general automation

Specifications

Bore ø50 mm
Action Double-acting
Port Rc
Cushion Air
MBB50-25Z ø50mm bore × 25mm stroke, double-acting, air cushion | Stroke: 25 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-50Z ø50mm bore × 50mm stroke, double-acting, air cushion | Stroke: 50 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-75Z ø50mm bore × 75mm stroke, double-acting, air cushion | Stroke: 75 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-100Z ø50mm bore × 100mm stroke, double-acting, air cushion | Stroke: 100 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-125Z ø50mm bore × 125mm stroke, double-acting, air cushion | Stroke: 125 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-150Z ø50mm bore × 150mm stroke, double-acting, air cushion | Stroke: 150 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-175Z ø50mm bore × 175mm stroke, double-acting, air cushion | Stroke: 175 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-200Z ø50mm bore × 200mm stroke, double-acting, air cushion | Stroke: 200 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-250Z ø50mm bore × 250mm stroke, double-acting, air cushion | Stroke: 250 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-300Z ø50mm bore × 300mm stroke, double-acting, air cushion | Stroke: 300 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-350Z ø50mm bore × 350mm stroke, double-acting, air cushion | Stroke: 350 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-400Z ø50mm bore × 400mm stroke, double-acting, air cushion | Stroke: 400 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-450Z ø50mm bore × 450mm stroke, double-acting, air cushion | Stroke: 450 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-500Z ø50mm bore × 500mm stroke, double-acting, air cushion | Stroke: 500 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-600Z ø50mm bore × 600mm stroke, double-acting, air cushion | Stroke: 600 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
Cylinders | Standard CylindersSMC
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MBB50 Standard Cylinder

Brand SMC·Cylinders | Standard Cylinders

Available part numbers (15)

MBB50-25Z, MBB50-50Z, MBB50-75Z, MBB50-100Z, MBB50-125Z, MBB50-150Z, MBB50-175Z, MBB50-200Z, MBB50-250Z, MBB50-300Z + 5 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MBB50-25Zø50mm bore × 25mm stroke, double-acting, air cushion | Stroke: 25 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-50Zø50mm bore × 50mm stroke, double-acting, air cushion | Stroke: 50 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-75Zø50mm bore × 75mm stroke, double-acting, air cushion | Stroke: 75 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-100Zø50mm bore × 100mm stroke, double-acting, air cushion | Stroke: 100 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-125Zø50mm bore × 125mm stroke, double-acting, air cushion | Stroke: 125 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-150Zø50mm bore × 150mm stroke, double-acting, air cushion | Stroke: 150 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-175Zø50mm bore × 175mm stroke, double-acting, air cushion | Stroke: 175 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-200Zø50mm bore × 200mm stroke, double-acting, air cushion | Stroke: 200 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-250Zø50mm bore × 250mm stroke, double-acting, air cushion | Stroke: 250 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-300Zø50mm bore × 300mm stroke, double-acting, air cushion | Stroke: 300 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-350Zø50mm bore × 350mm stroke, double-acting, air cushion | Stroke: 350 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-400Zø50mm bore × 400mm stroke, double-acting, air cushion | Stroke: 400 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-450Zø50mm bore × 450mm stroke, double-acting, air cushion | Stroke: 450 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-500Zø50mm bore × 500mm stroke, double-acting, air cushion | Stroke: 500 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
MBB50-600Zø50mm bore × 600mm stroke, double-acting, air cushion | Stroke: 600 mm | Bore: ø50 mm | Action: Double-acting | Port: Rc | Cushion: Air
