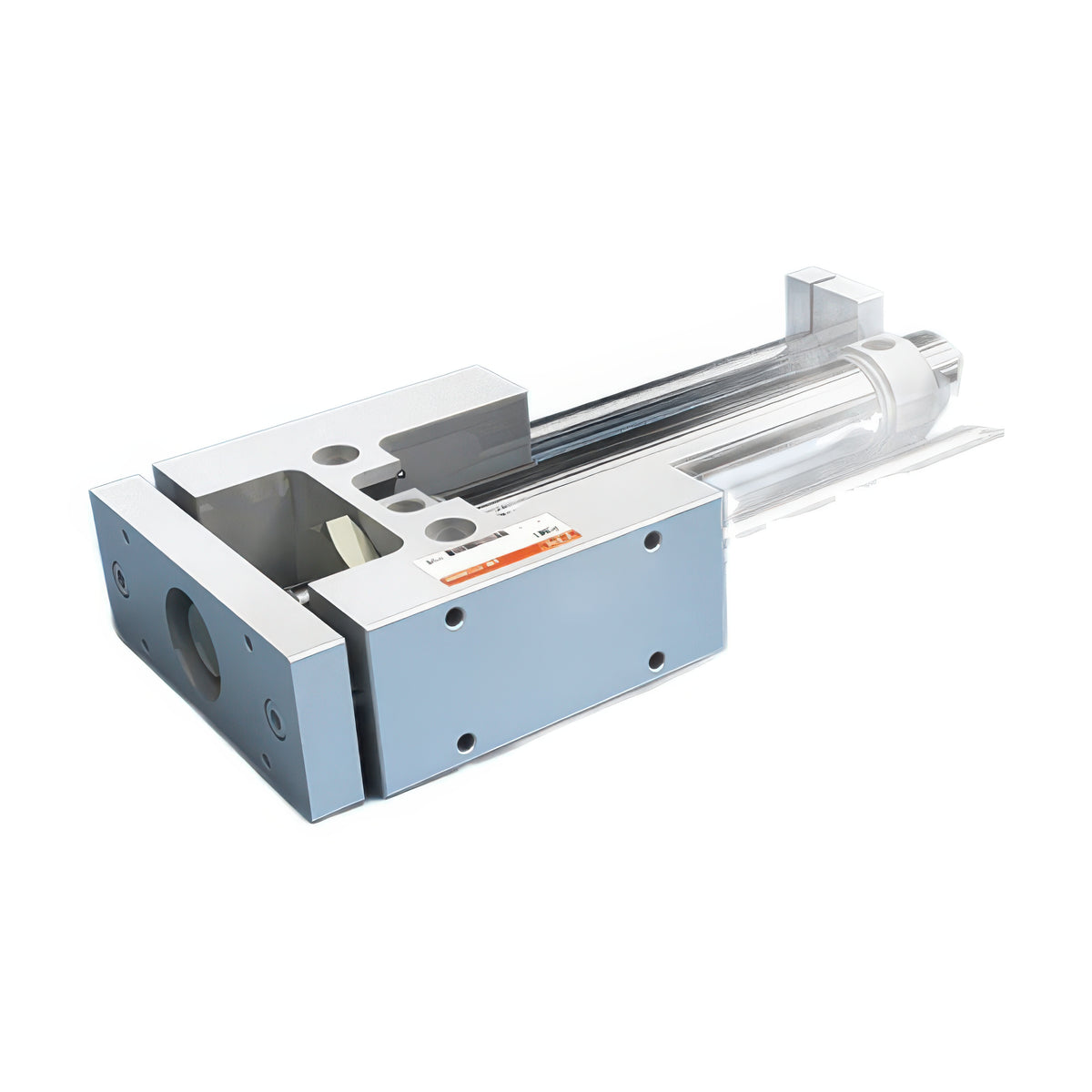

TPC Mechatronics TG Series Guide Unit for Pneumatic Cylinders (Bush Type)

TPC Mechatronics TG Series Guide Unit for Pneumatic Cylinders (Bush Type)

The TG series is a standardized guide unit that can be ordered without a cylinder and combined with various pneumatic cylinders.

Key features

  • It is available for bore sizes 20, 25, 32 and 40 mm with standard strokes from 75 mm up to 300, 400 or 500 mm depending on size
  • Two hard-chrome-plated carbon steel guide rods run in bush-type bearings inside an anodized aluminum guide body for smooth, precise motion
  • The compact housing allows simple mounting, and a secondary-battery (2B) specification is available

Specifications

Type Guide unit only (no cylinder)
Bearing Bush (slide)
Mounting Basic
Stroke suffix ordered separately
TGBB20 Applicable cylinder bore: 20 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-300 mm (75, 100, 125, 150, 200, 250, 300) | Guide rod dia: 10 mm (x2) | Overall length: 106 mm + stroke | Stroke suffix: ordered separately
TGBB25 Applicable cylinder bore: 25 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-300 mm (75, 100, 125, 150, 200, 250, 300) | Guide rod dia: 12 mm (x2) | Overall length: 121 mm + stroke | Stroke suffix: ordered separately
TGBB32 Applicable cylinder bore: 32 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-400 mm (75, 100, 125, 150, 200, 250, 300, 350, 400) | Guide rod dia: 14 mm (x2) | Overall length: 123 mm + stroke | Stroke suffix: ordered separately
TGBB40 Applicable cylinder bore: 40 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-500 mm (75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500) | Guide rod dia: 16 mm (x2) | Overall length: 151 mm + stroke | Stroke suffix: ordered separately
Cylinder AccessoriesTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TG Series Guide Unit for Pneumatic Cylinders (Bush Type)

Brand TPC Mechatronics·Cylinder Accessories

Available part numbers (4)

TGBB20, TGBB25, TGBB32, TGBB40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGBB20Applicable cylinder bore: 20 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-300 mm (75, 100, 125, 150, 200, 250, 300) | Guide rod dia: 10 mm (x2) | Overall length: 106 mm + stroke | Stroke suffix: ordered separately
TGBB25Applicable cylinder bore: 25 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-300 mm (75, 100, 125, 150, 200, 250, 300) | Guide rod dia: 12 mm (x2) | Overall length: 121 mm + stroke | Stroke suffix: ordered separately
TGBB32Applicable cylinder bore: 32 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-400 mm (75, 100, 125, 150, 200, 250, 300, 350, 400) | Guide rod dia: 14 mm (x2) | Overall length: 123 mm + stroke | Stroke suffix: ordered separately
TGBB40Applicable cylinder bore: 40 mm | Type: Guide unit only (no cylinder) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 75-500 mm (75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500) | Guide rod dia: 16 mm (x2) | Overall length: 151 mm + stroke | Stroke suffix: ordered separately
