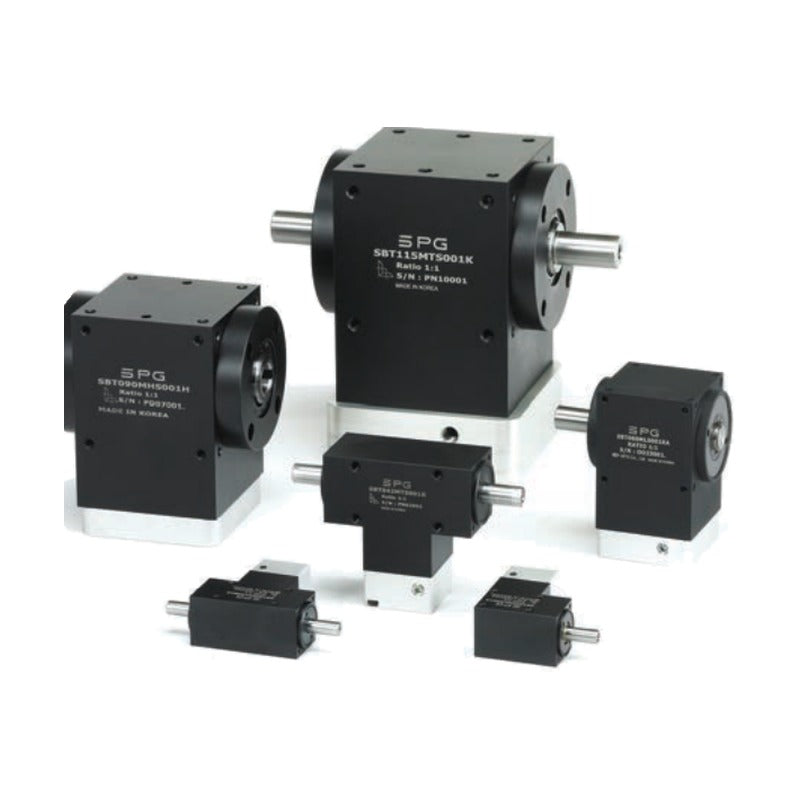

SPG SBT-M Motor-Mount Spiral Bevel Gearboxes (MT/ML/MH, 1:1)

SPG SBT-M Motor-Mount Spiral Bevel Gearboxes (MT/ML/MH, 1:1)

SPG SBT-M spiral bevel gearboxes add a motor-mount input flange so a servo or stepping motor can be attached directly, giving a 1:1 right-angle drive. Available with two output shafts (MT), one output shaft (ML) or hollow output (MH).

Key features

  • Direct motor-mount input flange for servo and stepping motors
  • Spiral bevel gears, ratio 1:1, efficiency ≥ 95%
  • MT (2-output), ML (1-output) and MH (hollow output) types
  • Output shaft plain (S) or keyed (K); hollow output on MH
  • Compact, lightweight, high-rigidity housing
  • □25 and □30 motor flanges are special order

Specifications

Gear type Spiral bevel, 1 stage
Ratio 1:1
Frame sizes □25-□142 (hollow □65-□142)
Nominal input speed 3,000 rpm (□142: 2,000 rpm)
Max. input speed 5,000 rpm (□142: 3,000 rpm)
Max. acceleration torque 1.5 x nominal output torque
Service life 20,000 h
Efficiency ≥ 95%
Operating temperature -10 to +90 °C (case surface)
Lubrication High-temperature extreme-pressure grease
Source SPG Precision Spiral Bevel Gearboxes catalogue, p. 13-17
SBT025MTS001S Frame: □25 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT025MTS001K Frame: □25 | Output: 2-output shaft | Shaft: Keyed | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT030MTS001S Frame: □30 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT030MTS001K Frame: □30 | Output: 2-output shaft | Shaft: Keyed | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT042MTS001S Frame: □42 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT042MTS001K Frame: □42 | Output: 2-output shaft | Shaft: Keyed | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT050MTS001S Frame: □50 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT050MTS001K Frame: □50 | Output: 2-output shaft | Shaft: Keyed | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT065MTS001S Frame: □65 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT065MTS001K Frame: □65 | Output: 2-output shaft | Shaft: Keyed | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT090MTS001S Frame: □90 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT090MTS001K Frame: □90 | Output: 2-output shaft | Shaft: Keyed | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT115MTS001S Frame: □115 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT115MTS001K Frame: □115 | Output: 2-output shaft | Shaft: Keyed | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT142MTS001S Frame: □142 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT142MTS001K Frame: □142 | Output: 2-output shaft | Shaft: Keyed | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT025MLS001S Frame: □25 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT025MLS001K Frame: □25 | Output: 1-output shaft | Shaft: Keyed | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT030MLS001S Frame: □30 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT030MLS001K Frame: □30 | Output: 1-output shaft | Shaft: Keyed | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT042MLS001S Frame: □42 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT042MLS001K Frame: □42 | Output: 1-output shaft | Shaft: Keyed | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT050MLS001S Frame: □50 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT050MLS001K Frame: □50 | Output: 1-output shaft | Shaft: Keyed | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT065MLS001S Frame: □65 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT065MLS001K Frame: □65 | Output: 1-output shaft | Shaft: Keyed | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT090MLS001S Frame: □90 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT090MLS001K Frame: □90 | Output: 1-output shaft | Shaft: Keyed | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT115MLS001S Frame: □115 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT115MLS001K Frame: □115 | Output: 1-output shaft | Shaft: Keyed | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT142MLS001S Frame: □142 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT142MLS001K Frame: □142 | Output: 1-output shaft | Shaft: Keyed | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT065MHS001H Frame: □65 | Output: Hollow output | Shaft: Hollow | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT090MHS001H Frame: □90 | Output: Hollow output | Shaft: Hollow | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT115MHS001H Frame: □115 | Output: Hollow output | Shaft: Hollow | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT142MHS001H Frame: □142 | Output: Hollow output | Shaft: Hollow | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
Bevel GearboxesSPG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SBT-M Motor-Mount Spiral Bevel Gearboxes (MT/ML/MH, 1:1)

Brand SPG·Bevel Gearboxes

Available part numbers (36)

SBT025MTS001S, SBT025MTS001K, SBT030MTS001S, SBT030MTS001K, SBT042MTS001S, SBT042MTS001K, SBT050MTS001S, SBT050MTS001K, SBT065MTS001S, SBT065MTS001K + 26 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBT025MTS001SFrame: □25 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT025MTS001KFrame: □25 | Output: 2-output shaft | Shaft: Keyed | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT030MTS001SFrame: □30 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT030MTS001KFrame: □30 | Output: 2-output shaft | Shaft: Keyed | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT042MTS001SFrame: □42 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT042MTS001KFrame: □42 | Output: 2-output shaft | Shaft: Keyed | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT050MTS001SFrame: □50 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT050MTS001KFrame: □50 | Output: 2-output shaft | Shaft: Keyed | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT065MTS001SFrame: □65 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT065MTS001KFrame: □65 | Output: 2-output shaft | Shaft: Keyed | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT090MTS001SFrame: □90 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT090MTS001KFrame: □90 | Output: 2-output shaft | Shaft: Keyed | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT115MTS001SFrame: □115 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT115MTS001KFrame: □115 | Output: 2-output shaft | Shaft: Keyed | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT142MTS001SFrame: □142 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT142MTS001KFrame: □142 | Output: 2-output shaft | Shaft: Keyed | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT025MLS001SFrame: □25 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT025MLS001KFrame: □25 | Output: 1-output shaft | Shaft: Keyed | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT030MLS001SFrame: □30 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT030MLS001KFrame: □30 | Output: 1-output shaft | Shaft: Keyed | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT042MLS001SFrame: □42 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT042MLS001KFrame: □42 | Output: 1-output shaft | Shaft: Keyed | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT050MLS001SFrame: □50 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT050MLS001KFrame: □50 | Output: 1-output shaft | Shaft: Keyed | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.9 kg
SBT065MLS001SFrame: □65 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT065MLS001KFrame: □65 | Output: 1-output shaft | Shaft: Keyed | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT090MLS001SFrame: □90 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT090MLS001KFrame: □90 | Output: 1-output shaft | Shaft: Keyed | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT115MLS001SFrame: □115 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT115MLS001KFrame: □115 | Output: 1-output shaft | Shaft: Keyed | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT142MLS001SFrame: □142 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT142MLS001KFrame: □142 | Output: 1-output shaft | Shaft: Keyed | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
SBT065MHS001HFrame: □65 | Output: Hollow output | Shaft: Hollow | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 2.0 kg
SBT090MHS001HFrame: □90 | Output: Hollow output | Shaft: Hollow | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.8 kg
SBT115MHS001HFrame: □115 | Output: Hollow output | Shaft: Hollow | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 10 kg
SBT142MHS001HFrame: □142 | Output: Hollow output | Shaft: Hollow | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 20 kg
