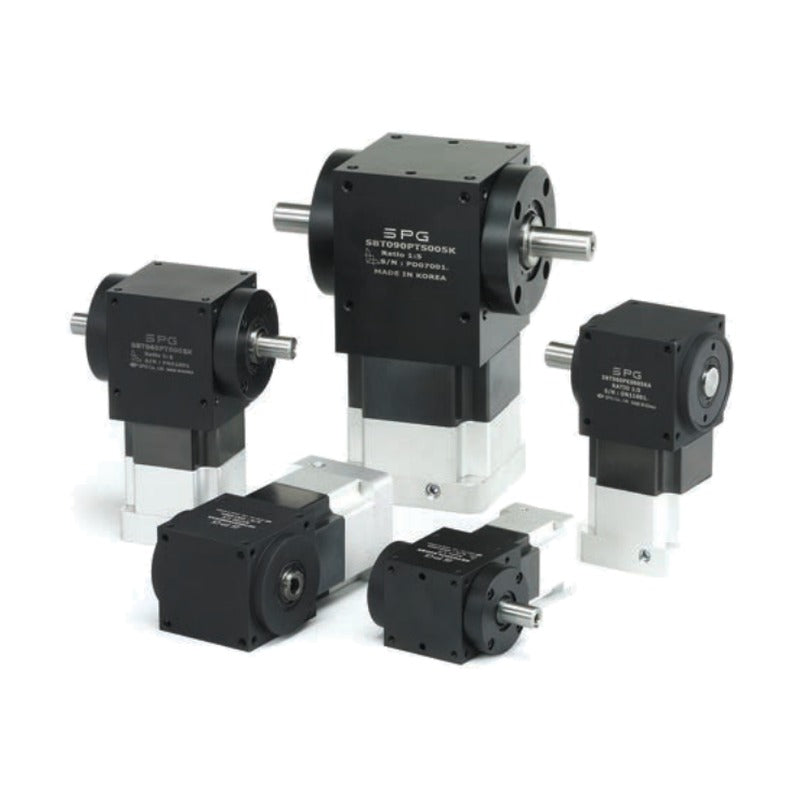

SPG SBT-P Motor-Mount Spiral Bevel Gearboxes (PT/PL/PH, 1:3-1:10)

SPG SBT-P Motor-Mount Spiral Bevel Gearboxes (PT/PL/PH, 1:3-1:10)

SPG SBT-P gearboxes combine a helical planetary input stage with a spiral bevel output stage for a two-stage right-angle reduction of 1:3, 1:5 or 1:10, with a direct servo-motor mounting flange.

Key features

  • 2-stage: helical planetary stage plus spiral bevel stage
  • Ratios 1:3, 1:5 and 1:10, efficiency ≥ 93%
  • PT (2-output), PL (1-output) and PH (hollow output) types
  • Backlash ≤23 arcmin (□50-65) / ≤18 arcmin (□90-142)
  • Direct mounting of servo motors, all mounting directions
  • Frame sizes □50 to □142 (PH □65 to □142)

Specifications

Gear type Planetary + spiral bevel, 2 stage
Ratios 1:3, 1:5, 1:10
Frame sizes □50-□142 (PH □65-□142)
Nominal input speed 3,000 rpm (□142: 2,000 rpm)
Max. input speed 5,000 rpm (□142: 3,000 rpm)
Backlash ≤23 / ≤18 arcmin
Service life 20,000 h
Efficiency ≥ 93%
Mounting All directions
Source SPG Precision Spiral Bevel Gearboxes catalogue, p. 18-22
SBT050PTS003S Frame: □50 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 6 Nm | Weight: 1.2 kg
SBT050PTS003K Frame: □50 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Keyed | T2N: 6 Nm | Weight: 1.2 kg
SBT050PTS005S Frame: □50 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 6 Nm | Weight: 1.2 kg
SBT050PTS005K Frame: □50 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Keyed | T2N: 6 Nm | Weight: 1.2 kg
SBT050PTS010S Frame: □50 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 6 Nm | Weight: 1.2 kg
SBT050PTS010K Frame: □50 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Keyed | T2N: 6 Nm | Weight: 1.2 kg
SBT065PTS003S Frame: □65 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 16 Nm | Weight: 2.5 kg
SBT065PTS003K Frame: □65 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Keyed | T2N: 16 Nm | Weight: 2.5 kg
SBT065PTS005S Frame: □65 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 16 Nm | Weight: 2.5 kg
SBT065PTS005K Frame: □65 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Keyed | T2N: 16 Nm | Weight: 2.5 kg
SBT065PTS010S Frame: □65 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 16 Nm | Weight: 2.5 kg
SBT065PTS010K Frame: □65 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Keyed | T2N: 16 Nm | Weight: 2.5 kg
SBT090PTS003S Frame: □90 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 34 Nm | Weight: 7 kg
SBT090PTS003K Frame: □90 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Keyed | T2N: 34 Nm | Weight: 7 kg
SBT090PTS005S Frame: □90 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 34 Nm | Weight: 7 kg
SBT090PTS005K Frame: □90 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Keyed | T2N: 34 Nm | Weight: 7 kg
SBT090PTS010S Frame: □90 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 34 Nm | Weight: 7 kg
SBT090PTS010K Frame: □90 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Keyed | T2N: 34 Nm | Weight: 7 kg
SBT115PTS003S Frame: □115 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 54 Nm | Weight: 15 kg
SBT115PTS003K Frame: □115 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Keyed | T2N: 54 Nm | Weight: 15 kg
SBT115PTS005S Frame: □115 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 54 Nm | Weight: 15 kg
SBT115PTS005K Frame: □115 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Keyed | T2N: 54 Nm | Weight: 15 kg
SBT115PTS010S Frame: □115 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 54 Nm | Weight: 15 kg
SBT115PTS010K Frame: □115 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Keyed | T2N: 54 Nm | Weight: 15 kg
SBT142PTS003S Frame: □142 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 100 Nm | Weight: 25 kg
SBT142PTS003K Frame: □142 | Ratio: 1:3 | Output: 2-output shaft | Shaft: Keyed | T2N: 100 Nm | Weight: 25 kg
SBT142PTS005S Frame: □142 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 100 Nm | Weight: 25 kg
SBT142PTS005K Frame: □142 | Ratio: 1:5 | Output: 2-output shaft | Shaft: Keyed | T2N: 100 Nm | Weight: 25 kg
SBT142PTS010S Frame: □142 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 100 Nm | Weight: 25 kg
SBT142PTS010K Frame: □142 | Ratio: 1:10 | Output: 2-output shaft | Shaft: Keyed | T2N: 100 Nm | Weight: 25 kg
SBT050PLS003S Frame: □50 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 6 Nm | Weight: 1.2 kg
SBT050PLS003K Frame: □50 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Keyed | T2N: 6 Nm | Weight: 1.2 kg
SBT050PLS005S Frame: □50 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 6 Nm | Weight: 1.2 kg
SBT050PLS005K Frame: □50 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Keyed | T2N: 6 Nm | Weight: 1.2 kg
SBT050PLS010S Frame: □50 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 6 Nm | Weight: 1.2 kg
SBT050PLS010K Frame: □50 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Keyed | T2N: 6 Nm | Weight: 1.2 kg
SBT065PLS003S Frame: □65 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 16 Nm | Weight: 2.5 kg
SBT065PLS003K Frame: □65 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Keyed | T2N: 16 Nm | Weight: 2.5 kg
SBT065PLS005S Frame: □65 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 16 Nm | Weight: 2.5 kg
SBT065PLS005K Frame: □65 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Keyed | T2N: 16 Nm | Weight: 2.5 kg
SBT065PLS010S Frame: □65 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 16 Nm | Weight: 2.5 kg
SBT065PLS010K Frame: □65 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Keyed | T2N: 16 Nm | Weight: 2.5 kg
SBT090PLS003S Frame: □90 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 34 Nm | Weight: 7 kg
SBT090PLS003K Frame: □90 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Keyed | T2N: 34 Nm | Weight: 7 kg
SBT090PLS005S Frame: □90 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 34 Nm | Weight: 7 kg
SBT090PLS005K Frame: □90 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Keyed | T2N: 34 Nm | Weight: 7 kg
SBT090PLS010S Frame: □90 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 34 Nm | Weight: 7 kg
SBT090PLS010K Frame: □90 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Keyed | T2N: 34 Nm | Weight: 7 kg
SBT115PLS003S Frame: □115 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 54 Nm | Weight: 15 kg
SBT115PLS003K Frame: □115 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Keyed | T2N: 54 Nm | Weight: 15 kg
SBT115PLS005S Frame: □115 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 54 Nm | Weight: 15 kg
SBT115PLS005K Frame: □115 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Keyed | T2N: 54 Nm | Weight: 15 kg
SBT115PLS010S Frame: □115 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 54 Nm | Weight: 15 kg
SBT115PLS010K Frame: □115 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Keyed | T2N: 54 Nm | Weight: 15 kg
SBT142PLS003S Frame: □142 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 100 Nm | Weight: 25 kg
SBT142PLS003K Frame: □142 | Ratio: 1:3 | Output: 1-output shaft | Shaft: Keyed | T2N: 100 Nm | Weight: 25 kg
SBT142PLS005S Frame: □142 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 100 Nm | Weight: 25 kg
SBT142PLS005K Frame: □142 | Ratio: 1:5 | Output: 1-output shaft | Shaft: Keyed | T2N: 100 Nm | Weight: 25 kg
SBT142PLS010S Frame: □142 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 100 Nm | Weight: 25 kg
SBT142PLS010K Frame: □142 | Ratio: 1:10 | Output: 1-output shaft | Shaft: Keyed | T2N: 100 Nm | Weight: 25 kg
SBT065PHS003H Frame: □65 | Ratio: 1:3 | Output: Hollow output | Shaft: Hollow | T2N: 16 Nm | Weight: 2.5 kg
SBT065PHS005H Frame: □65 | Ratio: 1:5 | Output: Hollow output | Shaft: Hollow | T2N: 16 Nm | Weight: 2.5 kg
SBT065PHS010H Frame: □65 | Ratio: 1:10 | Output: Hollow output | Shaft: Hollow | T2N: 16 Nm | Weight: 2.5 kg
SBT090PHS003H Frame: □90 | Ratio: 1:3 | Output: Hollow output | Shaft: Hollow | T2N: 34 Nm | Weight: 7 kg
SBT090PHS005H Frame: □90 | Ratio: 1:5 | Output: Hollow output | Shaft: Hollow | T2N: 34 Nm | Weight: 7 kg
SBT090PHS010H Frame: □90 | Ratio: 1:10 | Output: Hollow output | Shaft: Hollow | T2N: 34 Nm | Weight: 7 kg
SBT115PHS003H Frame: □115 | Ratio: 1:3 | Output: Hollow output | Shaft: Hollow | T2N: 54 Nm | Weight: 15 kg
SBT115PHS005H Frame: □115 | Ratio: 1:5 | Output: Hollow output | Shaft: Hollow | T2N: 54 Nm | Weight: 15 kg
SBT115PHS010H Frame: □115 | Ratio: 1:10 | Output: Hollow output | Shaft: Hollow | T2N: 54 Nm | Weight: 15 kg
SBT142PHS003H Frame: □142 | Ratio: 1:3 | Output: Hollow output | Shaft: Hollow | T2N: 100 Nm | Weight: 25 kg
SBT142PHS005H Frame: □142 | Ratio: 1:5 | Output: Hollow output | Shaft: Hollow | T2N: 100 Nm | Weight: 25 kg
SBT142PHS010H Frame: □142 | Ratio: 1:10 | Output: Hollow output | Shaft: Hollow | T2N: 100 Nm | Weight: 25 kg
Bevel GearboxesSPG
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SBT-P Motor-Mount Spiral Bevel Gearboxes (PT/PL/PH, 1:3-1:10)

Brand SPG·Bevel Gearboxes

Available part numbers (72)

SBT050PTS003S, SBT050PTS003K, SBT050PTS005S, SBT050PTS005K, SBT050PTS010S, SBT050PTS010K, SBT065PTS003S, SBT065PTS003K, SBT065PTS005S, SBT065PTS005K + 62 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
