SPG SBT Spiral Bevel Gearboxes (Standard T/L/H, 1:1, □25-142)

SPG SBT Spiral Bevel Gearboxes (Standard T/L/H, 1:1, □25-142)

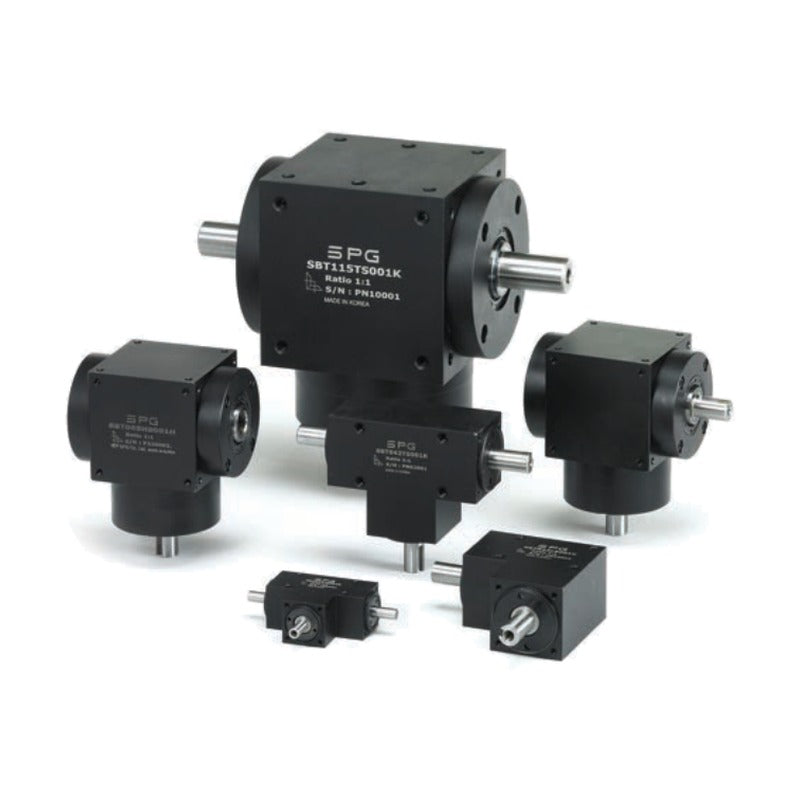

SPG SBT standard spiral bevel gearboxes transmit power at a right angle with a 1:1 ratio, offered with two output shafts (T), one output shaft (L) or a hollow output (H). Compact, lightweight housings suit robots, conveyors, printing and packaging machines.

Key features

  • High-precision spiral bevel gears for quiet, smooth running
  • Ratio 1:1, single stage, efficiency ≥ 95%
  • T (2-output), L (1-output) and H (hollow output) types
  • Output shaft plain (S) or keyed (K); hollow output on H type
  • Backlash ≤25 to ≤15 arcmin depending on frame size
  • Frame sizes □25 to □142 (H type □65 to □142)

Specifications

Gear type Spiral bevel, 1 stage
Ratio 1:1
Frame sizes □25-□142 (hollow □65-□142)
Nominal input speed 3,000 rpm (□142: 2,000 rpm)
Max. input speed 5,000 rpm (□142: 3,000 rpm)
Max. acceleration torque 1.5 x nominal output torque
Service life 20,000 h
Efficiency ≥ 95%
Operating temperature -10 to +90 °C (case surface)
Lubrication High-temperature extreme-pressure grease
Source SPG Precision Spiral Bevel Gearboxes catalogue, p. 6-12
SBT025TS001S Frame: □25 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT025TS001K Frame: □25 | Output: 2-output shaft | Shaft: Keyed | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT030TS001S Frame: □30 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT030TS001K Frame: □30 | Output: 2-output shaft | Shaft: Keyed | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT042TS001S Frame: □42 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT042TS001K Frame: □42 | Output: 2-output shaft | Shaft: Keyed | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT050TS001S Frame: □50 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.8 kg
SBT050TS001K Frame: □50 | Output: 2-output shaft | Shaft: Keyed | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.8 kg
SBT065TS001S Frame: □65 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 1.8 kg
SBT065TS001K Frame: □65 | Output: 2-output shaft | Shaft: Keyed | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 1.8 kg
SBT090TS001S Frame: □90 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.5 kg
SBT090TS001K Frame: □90 | Output: 2-output shaft | Shaft: Keyed | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.5 kg
SBT115TS001S Frame: □115 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 9 kg
SBT115TS001K Frame: □115 | Output: 2-output shaft | Shaft: Keyed | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 9 kg
SBT142TS001S Frame: □142 | Output: 2-output shaft | Shaft: Plain (no key) | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 18 kg
SBT142TS001K Frame: □142 | Output: 2-output shaft | Shaft: Keyed | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 18 kg
SBT025LS001S Frame: □25 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT025LS001K Frame: □25 | Output: 1-output shaft | Shaft: Keyed | T2N: 0.3 Nm | Backlash: ≤25 arcmin | Weight: 0.2 kg
SBT030LS001S Frame: □30 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT030LS001K Frame: □30 | Output: 1-output shaft | Shaft: Keyed | T2N: 0.7 Nm | Backlash: ≤25 arcmin | Weight: 0.35 kg
SBT042LS001S Frame: □42 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT042LS001K Frame: □42 | Output: 1-output shaft | Shaft: Keyed | T2N: 2.5 Nm | Backlash: ≤25 arcmin | Weight: 0.9 kg
SBT050LS001S Frame: □50 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.8 kg
SBT050LS001K Frame: □50 | Output: 1-output shaft | Shaft: Keyed | T2N: 3.0 Nm | Backlash: ≤20 arcmin | Weight: 0.8 kg
SBT065LS001S Frame: □65 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 1.8 kg
SBT065LS001K Frame: □65 | Output: 1-output shaft | Shaft: Keyed | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 1.8 kg
SBT090LS001S Frame: □90 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.5 kg
SBT090LS001K Frame: □90 | Output: 1-output shaft | Shaft: Keyed | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.5 kg
SBT115LS001S Frame: □115 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 9 kg
SBT115LS001K Frame: □115 | Output: 1-output shaft | Shaft: Keyed | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 9 kg
SBT142LS001S Frame: □142 | Output: 1-output shaft | Shaft: Plain (no key) | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 18 kg
SBT142LS001K Frame: □142 | Output: 1-output shaft | Shaft: Keyed | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 18 kg
SBT065HS001H Frame: □65 | Output: Hollow output | Shaft: Hollow | T2N: 9.0 Nm | Backlash: ≤20 arcmin | Weight: 1.8 kg
SBT090HS001H Frame: □90 | Output: Hollow output | Shaft: Hollow | T2N: 17 Nm | Backlash: ≤15 arcmin | Weight: 4.5 kg
SBT115HS001H Frame: □115 | Output: Hollow output | Shaft: Hollow | T2N: 22 Nm | Backlash: ≤15 arcmin | Weight: 9 kg
SBT142HS001H Frame: □142 | Output: Hollow output | Shaft: Hollow | T2N: 50 Nm | Backlash: ≤15 arcmin | Weight: 18 kg
