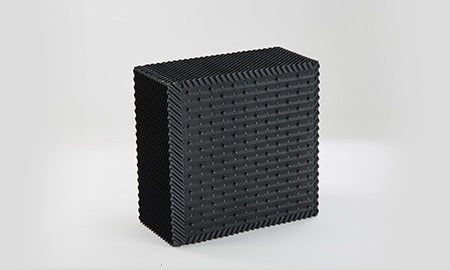

Sung Kwang Machinery SKCP-CF Crossflow Cooling Tower Fill (PVC, Vertical Installation)

Crossflow cooling tower fill (SKCP-CF series), made in Korea — an integrated fill with air-inlet louver and drift eliminator in one piece.

Key features

Designed for vertical (upright) installation: the flute geometry keeps water flowing evenly over the fill surface, unlike conventional crossflow fills that must be installed at an angle
Among the largest fill sizes produced in Korea, reducing installation time and cost on large cooling towers
Uniform louver and honeycomb drift-eliminator geometry with consistent sheet thickness, produced on precision temperature-controlled forming lines
Pitch options 13P, 15P and 17P; custom sizes on request

Specifications

Material	PVC

Crossflow cooling tower: fill position and flow

Water flow: SKCP-CF vs. conventional fill

SKCP-CF001		Pitch: 13P \| Height (H): 640 mm \| Width (W): 1000 mm \| Material: PVC
SKCP-CF002		Pitch: 15P \| Height (H): 800 mm \| Width (W): 1000 mm \| Material: PVC
SKCP-CF003		Pitch: 15P \| Height (H): 600 mm \| Width (W): 1240 mm \| Material: PVC
SKCP-CF004		Pitch: 15P \| Height (H): 1000 mm \| Width (W): 950 mm \| Material: PVC
SKCP-CF005		Pitch: 15P \| Height (H): 1000 mm \| Width (W): 1000 mm \| Material: PVC
SKCP-CF006		Pitch: 15P \| Height (H): 1000 mm \| Width (W): 1050 mm \| Material: PVC
SKCP-CF007		Pitch: 15P \| Height (H): 1000 mm \| Width (W): 1200 mm \| Material: PVC
SKCP-CF008		Pitch: 15P \| Height (H): 800 mm \| Width (W): 1450 mm \| Material: PVC
SKCP-CF009		Pitch: 15P \| Height (H): 2000 mm \| Width (W): 1050 mm \| Material: PVC
SKCP-CF010		Pitch: 13P / 15P / 17P \| Height (H): 2100 mm \| Width (W): 1220 mm \| Material: PVC
SKCP-CF011		Pitch: 13P / 15P / 17P \| Height (H): 2400 mm \| Width (W): 1220 mm \| Material: PVC
SKCP-CF012		Pitch: 15P / 17P \| Height (H): 2100 mm \| Width (W): 1320 mm \| Material: PVC
SKCP-CF013		Pitch: 15P / 17P \| Height (H): 2200 mm \| Width (W): 1320 mm \| Material: PVC
SKCP-CF014		Pitch: 15P / 17P \| Height (H): 2300 mm \| Width (W): 1320 mm \| Material: PVC
SKCP-CF015		Pitch: 15P / 17P \| Height (H): 2400 mm \| Width (W): 1320 mm \| Material: PVC
SKCP-CF016		Pitch: 15P / 17P \| Height (H): 2500 mm \| Width (W): 1320 mm \| Material: PVC
SKCP-CF017		Pitch: 15P \| Height (H): 2400 mm \| Width (W): 1430 mm \| Material: PVC
SKCP-CF018		Pitch: 15P \| Height (H): 2400 mm \| Width (W): 1500 mm \| Material: PVC

Cooling Tower PartsSKC

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sung Kwang Machinery SKCP-CF Crossflow Cooling Tower Fill (PVC, Vertical Installation)

Brand SKC·Cooling Tower Parts

Available part numbers (18)

SKCP-CF001, SKCP-CF002, SKCP-CF003, SKCP-CF004, SKCP-CF005, SKCP-CF006, SKCP-CF007, SKCP-CF008, SKCP-CF009, SKCP-CF010 + 8 more — see full table ↓

How to order

Send the SKC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
