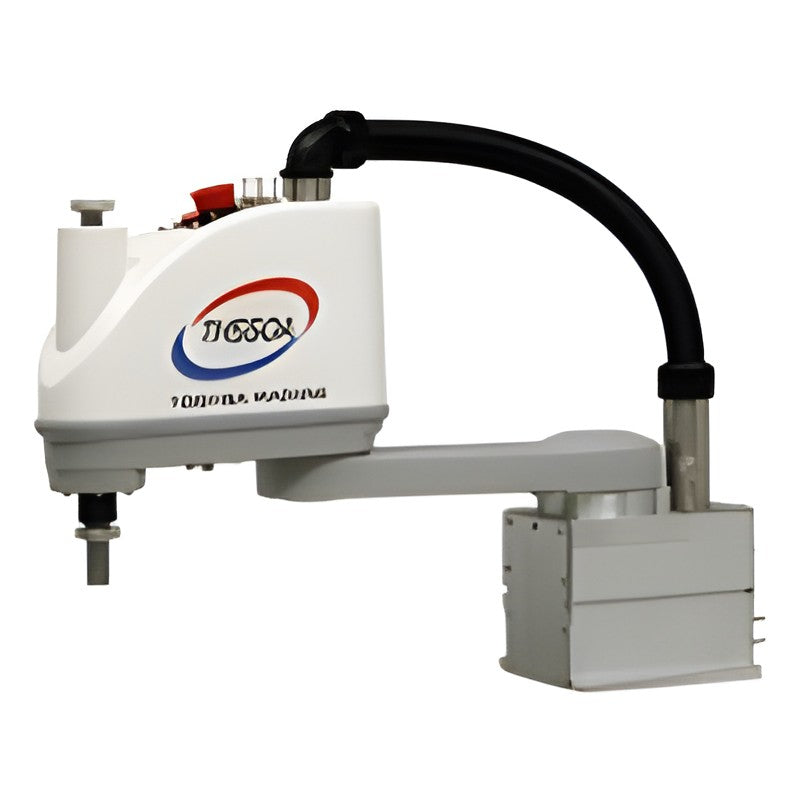

Toshiba TH Series 4-Axis SCARA Robots (180-1200mm reach)

Toshiba TH Series 4-Axis SCARA Robots (180-1200mm reach)

Toshiba Machine TH series horizontal multi-joint (SCARA) robots cover arm lengths from 180 mm to 1200 mm and payloads up to 20 kg. Built-in end-effector wiring and piping, a Z-axis brake release switch and torque control suit assembly, handling and press-fit work.

Key features

  • Nine arm lengths from 180 to 1200 mm, payload 2-20 kg
  • Standard cycle times from 0.30 s; composite speed up to 9.15 m/s
  • End-effector wiring and pneumatic piping routed inside the arm
  • Torque control, constant-speed path motion and multi-task programming
  • Options: long Z stroke, bellows, ceiling mount, cleanroom, safety category 3
  • Runs on TS1000/TS2000/TS2100/TS3000/TS3100 controllers

Specifications

Type Horizontal multi-joint (SCARA)
Controlled axes 4
Arm length 180-1200 mm
Z-axis stroke 120-200 mm (long stroke option)
Max payload 2-20 kg
Position detection Absolute encoders
Programming SCOL language, TSPC PC software
Cable extension Up to 10 m (TH180-350A) / 25 m
Controller TS series (see compatibility table)
Source Toshiba Machine TH Series SCARA Robot catalogue (TH0039-CEC-07)
TH180 Reach: 180 mm | Z stroke: 120 mm | Payload: 2 kg | Cycle: 0.35 s
TH250A Reach: 250 mm | Z stroke: 120 mm | Payload: 3 kg | Cycle: 0.41 s
TH350A Reach: 350 mm | Z stroke: 120 mm | Payload: 3 kg | Cycle: 0.41 s
TH450A Reach: 450 mm | Z stroke: 150 mm | Payload: 5 kg | Cycle: 0.30 s
TH550A Reach: 550 mm | Z stroke: 150 mm | Payload: 5 kg | Cycle: 0.30 s
TH650A Reach: 650 mm | Z stroke: 200 mm | Payload: 10 kg | Cycle: 0.31 s
TH850A Reach: 850 mm | Z stroke: 200 mm | Payload: 20 kg | Cycle: 0.39 s
TH1050A Reach: 1050 mm | Z stroke: 200 mm | Payload: 20 kg | Cycle: 0.39 s
TH1200A Reach: 1200 mm | Z stroke: 200 mm | Payload: 20 kg | Cycle: 0.57 s
SR-1504HZ Type: column-mounted SCARA | Status: legacy | Specs: on request
SCARA RobotsToshiba
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Toshiba TH Series 4-Axis SCARA Robots (180-1200mm reach)

Brand Toshiba·SCARA Robots

Available part numbers (10)

TH180, TH250A, TH350A, TH450A, TH550A, TH650A, TH850A, TH1050A, TH1200A, SR-1504HZ
