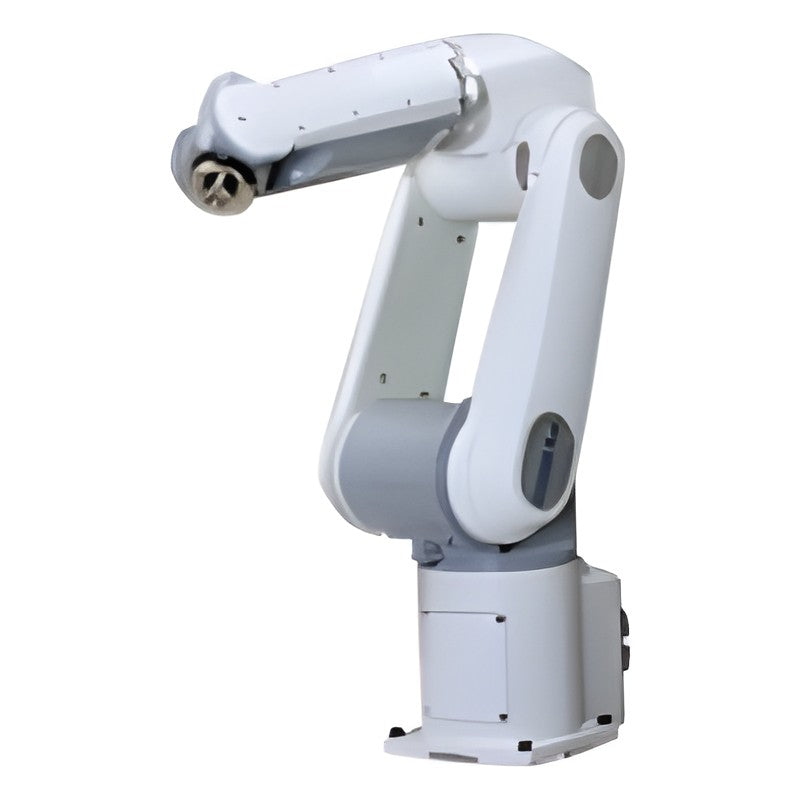

Toshiba TV/TVL Series 6-Axis Vertical Articulated Robots

Toshiba TV/TVL Series 6-Axis Vertical Articulated Robots

Toshiba Machine TV and TVL series are compact 6-axis vertical articulated robots with 500-1090 mm reach and 3-5 kg payload. They combine light weight and space-saving design with high speed and +/-0.02 mm class repeatability for assembly and handling cells.

Key features

  • 6-axis vertical articulated arm, absolute AC servo system
  • Reach from 500 mm (TVL500) to 1090 mm (TV1000)
  • Payload 3 kg (TVL500/TV600) or 5 kg (TV800/TV1000)
  • Composite speed up to 9.61 m/s
  • TS3100/TS3100V2 or TSL3100 controller with TP1000-6ax / TP3000 pendants

Specifications

Type Vertical articulated robot
Controlled axes 6
Reach 500-1090 mm
Max payload 3-5 kg
Repeatability +/-0.02 mm (TV1000: +/-0.03 mm)
Position detection Absolute system / AC servo motor
Programming SCOL language, TSPC software
Source Toshiba Machine TV600/TV800/TV1000 leaflets and TVL500 catalogue
TVL500 Reach: 500 mm | Payload: 3 kg (rated 1 kg) | Mass: 28 kg | Controller: TSL3100
TV600 Reach: 580 mm | Payload: 3 kg (rated 1 kg) | Mass: 25 kg | Controller: TS3100V2
TV800 Reach: 892 mm | Payload: 5 kg | Mass: 45.5 kg | Controller: TS3100
TV1000 Reach: 1090 mm | Payload: 5 kg | Mass: 47 kg | Controller: TS3100
Vertical Articulated RobotsToshiba
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Toshiba TV/TVL Series 6-Axis Vertical Articulated Robots

Brand Toshiba·Vertical Articulated Robots

Available part numbers (4)

TVL500, TV600, TV800, TV1000

How to order

Send the Toshiba part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TVL500Reach: 500 mm | Payload: 3 kg (rated 1 kg) | Mass: 28 kg | Controller: TSL3100
TV600Reach: 580 mm | Payload: 3 kg (rated 1 kg) | Mass: 25 kg | Controller: TS3100V2
TV800Reach: 892 mm | Payload: 5 kg | Mass: 45.5 kg | Controller: TS3100
TV1000Reach: 1090 mm | Payload: 5 kg | Mass: 47 kg | Controller: TS3100
