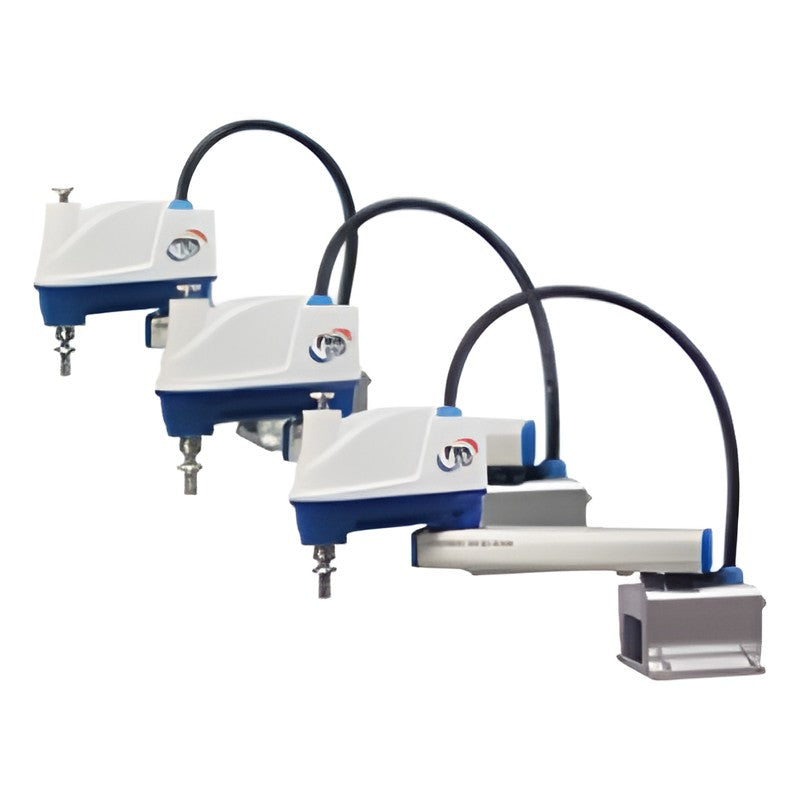

Toshiba THL Series Low-Cost SCARA Robots (300-1000mm reach)

Toshiba THL Series Low-Cost SCARA Robots (300-1000mm reach)

Toshiba Machine THL series SCARA robots deliver reliable 4-axis performance at low cost, with about 70% lower power consumption and 60% lower weight than earlier models. Eight arm lengths from 300 to 1000 mm run on the compact TSL3000 controller.

Key features

  • Eight arm lengths from 300 mm to 1000 mm
  • Low power consumption (0.7-1.4 kVA) and light weight (12-37 kg)
  • Positioning repeatability +/-0.01 mm (THL300-700)
  • Hand wiring 8 inputs / 8 outputs and 3 pneumatic joints built in
  • Options: long Z stroke, bellows, cap, ceiling mount, cleanroom, 5th axis
  • TSL3000 controller with built-in TCmini PLC

Specifications

Type Horizontal multi-joint (SCARA)
Controlled axes 4
Axis 1 / 2 range +/-125 deg / +/-145 deg
Axis 4 range +/-360 deg
Position detection Absolute
Hand wiring 8 inputs / 8 outputs
Controller cable 3.5 m (max. 15 m option)
Controller TSL3000
Source Toshiba Machine THL Series catalogue (THL0048-CEC-03)
THL300 Reach: 300 mm | Z stroke: 160 mm | Payload: 5 kg (rated 2 kg) | Cycle: 0.48 s
THL400 Reach: 400 mm | Z stroke: 160 mm | Payload: 5 kg (rated 2 kg) | Cycle: 0.47 s
THL500 Reach: 500 mm | Z stroke: 150 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.45 s
THL600 Reach: 600 mm | Z stroke: 150 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.45 s
THL700 Reach: 700 mm | Z stroke: 150 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.50 s
THL800 Reach: 800 mm | Z stroke: 300 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.47 s
THL900 Reach: 900 mm | Z stroke: 300 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.48 s
THL1000 Reach: 1000 mm | Z stroke: 300 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.48 s
SCARA RobotsToshiba
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Toshiba THL Series Low-Cost SCARA Robots (300-1000mm reach)

Brand Toshiba·SCARA Robots

Available part numbers (8)

THL300, THL400, THL500, THL600, THL700, THL800, THL900, THL1000

How to order

Send the Toshiba part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
THL300Reach: 300 mm | Z stroke: 160 mm | Payload: 5 kg (rated 2 kg) | Cycle: 0.48 s
THL400Reach: 400 mm | Z stroke: 160 mm | Payload: 5 kg (rated 2 kg) | Cycle: 0.47 s
THL500Reach: 500 mm | Z stroke: 150 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.45 s
THL600Reach: 600 mm | Z stroke: 150 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.45 s
THL700Reach: 700 mm | Z stroke: 150 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.50 s
THL800Reach: 800 mm | Z stroke: 300 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.47 s
THL900Reach: 900 mm | Z stroke: 300 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.48 s
THL1000Reach: 1000 mm | Z stroke: 300 mm | Payload: 10 kg (rated 2 kg) | Cycle: 0.48 s
